Focusrite RedNet AM2
Brand:
Focusrite
Product Highlights
Key Features
- Monitor-quality precision digital conversion for Dante networks
- Power to drive even high impedance headphones at significant levels — ideal for drums or other on-stage applications
- Independent headphone and line out level controls
- Integrated mute switch – instantly kill the signal feeding external power amps or speakers
- Power over Ethernet (PoE) or via included power supply
- Integrated Gigabit Ethernet switch allows connection of additional network device
- Mic stand mount – bush on the base of the metal case allows simple mounting
- Dual XLR line level outputs
- ¼” TRS headphone output
- 2x etherCON network connectors with integrated network switch
- Signal present, network connected and power indicators
Original price was: ₹41,945.₹39,800Current price is: ₹39,800.
In stock
Estimated delivery dates: Apr 20, 2026 - Apr 24, 2026
In stock
Stereo headphone and line output, PoE supplied

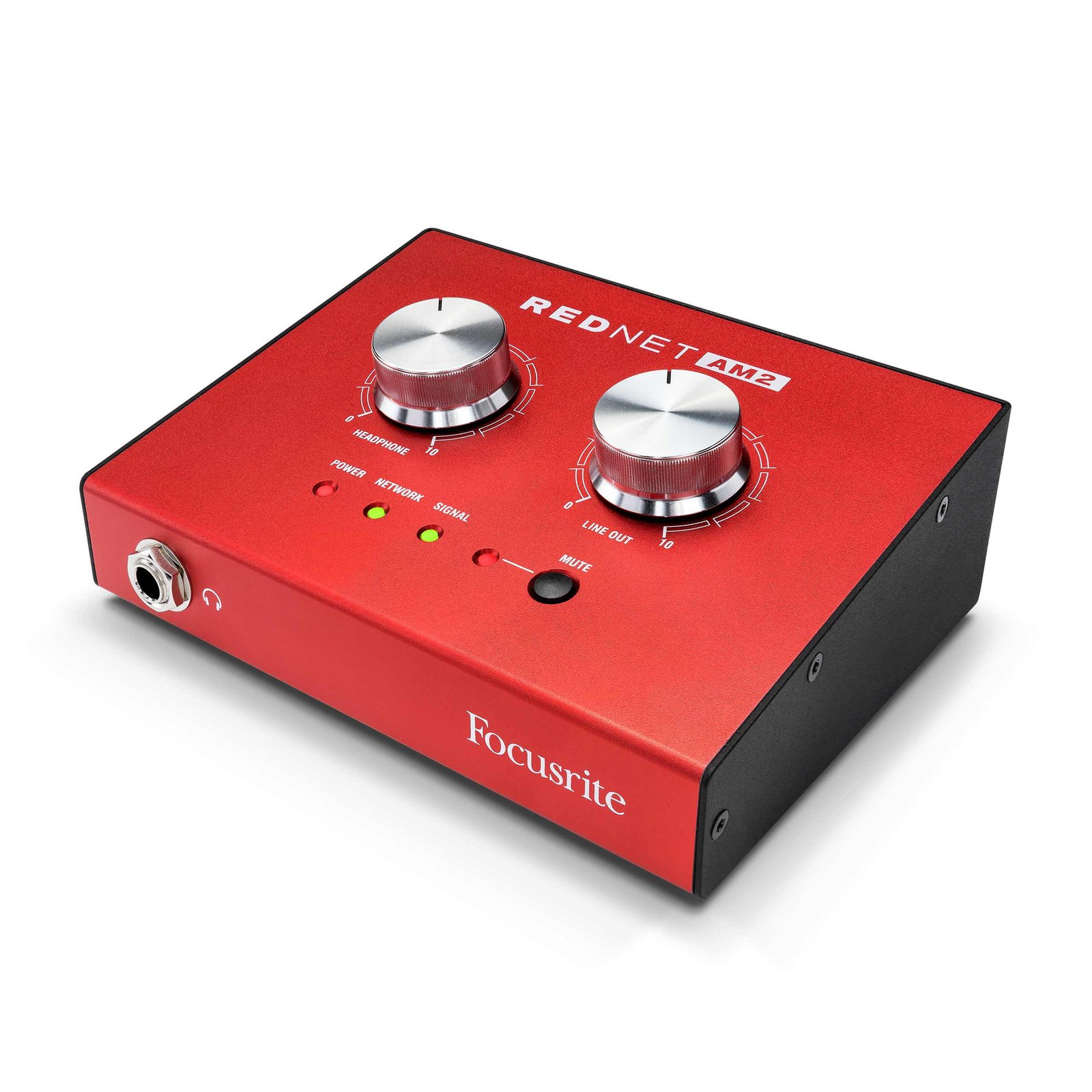

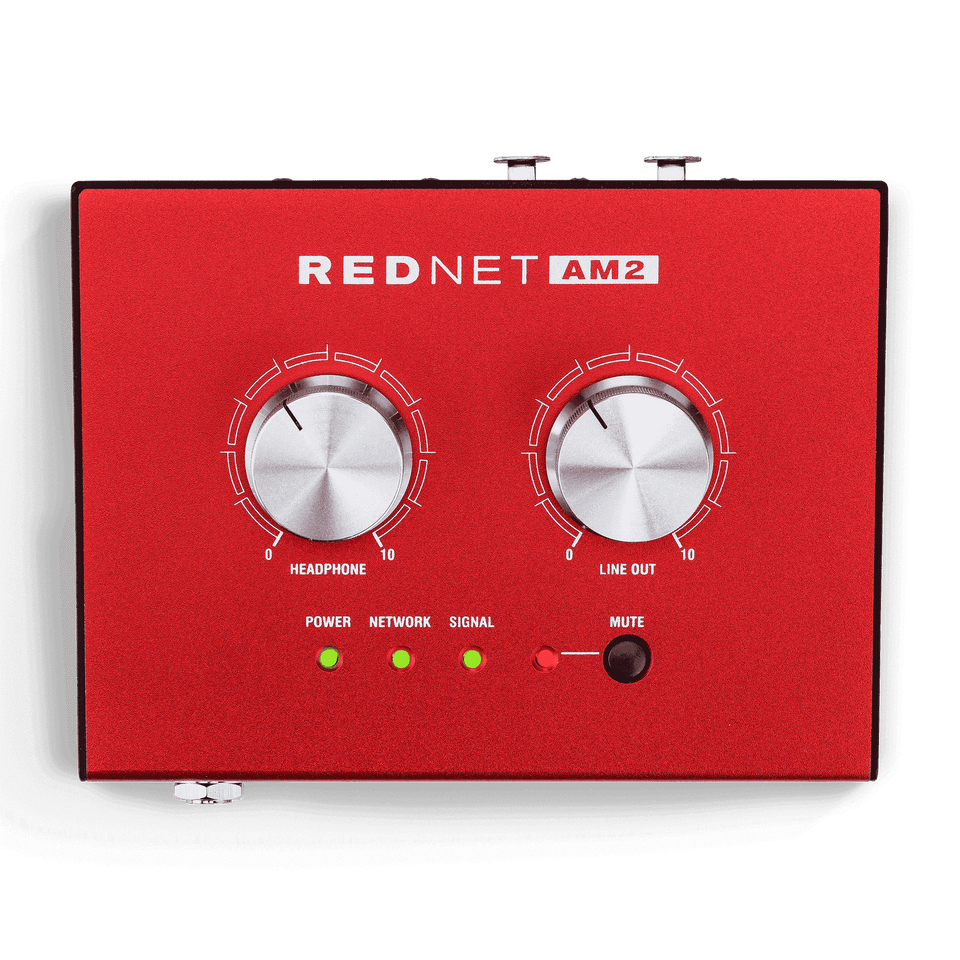

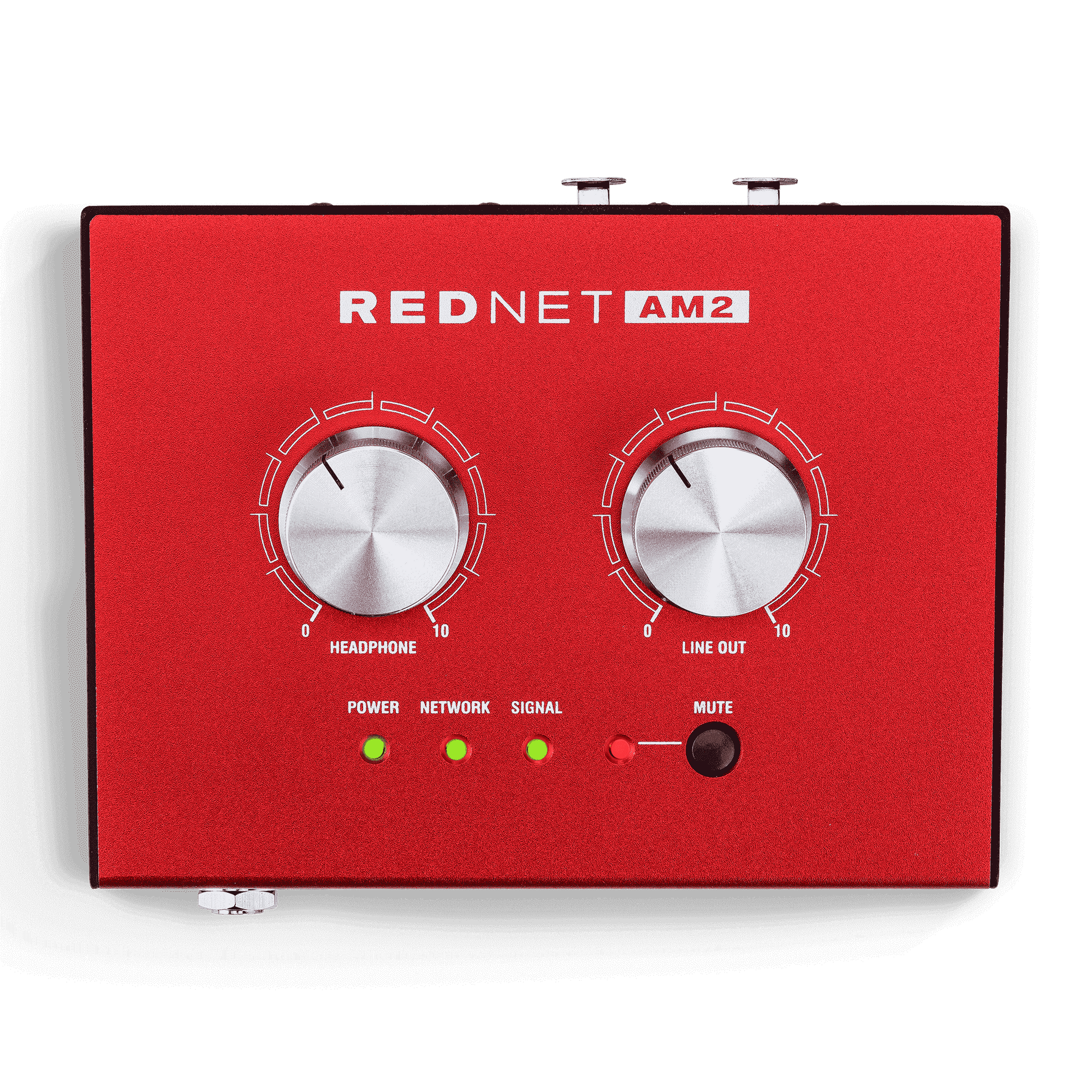

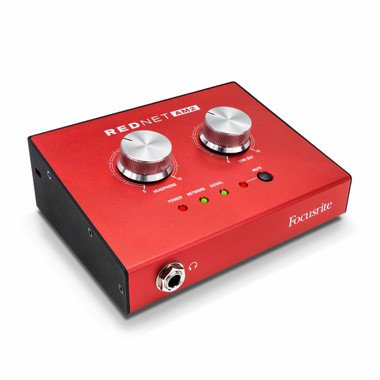

RedNet AM2 is a compact, Power-over-Ethernet (PoE) -supplied stereo analogue output device for any Dante audio-over-IP network. Featuring a powerful headphone amp, capable of driving both high and low impedance headphones, RedNet AM2 is the ideal signal monitoring device to add extra functionality to your audio network.
A pair of rear-panel XLR outputs offers line level signals of up to 24dBu with top panel level control and mute switch, while the front panel 1/4″ headphone output is capable of driving high signal levels perfect for monitoring in high-SPL environments. The bottom of the sturdy aluminium and steel chassis features a threaded mic stand boss allowing RedNet AM2 to be placed in any convenient location whether on a desk or at a performer’s fingertips on a stand. Finally, the IEEE standard PoE input allows a single Ethernet cable to provide power, remote control, clocking and audio data to RedNet AM2.

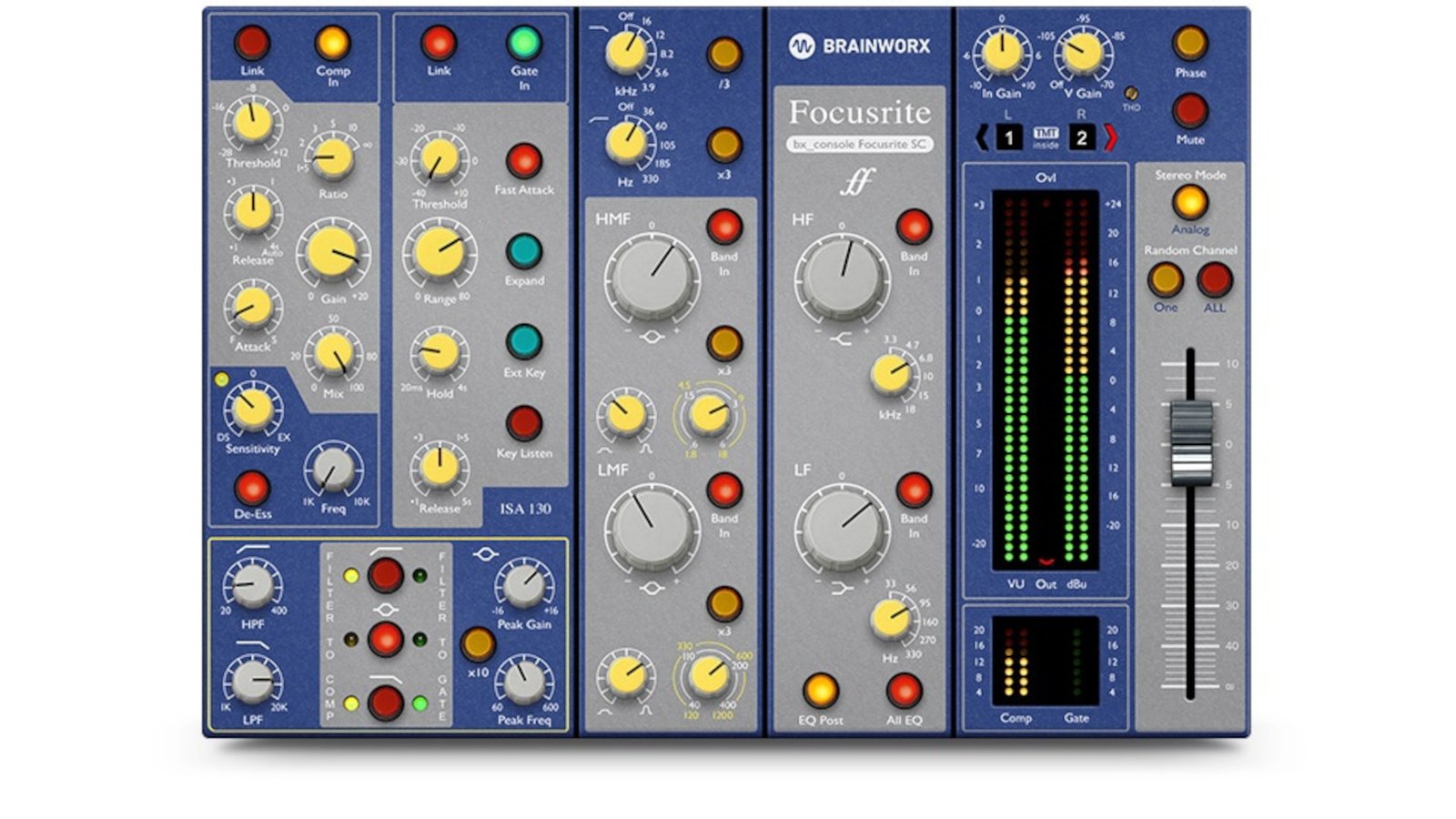

Brainworx bx_console
The Focusrite Studio Console reborn in your DAW
The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx’s bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.
Enjoy 3 years of warranty
All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.
Specifications in detail
Line level outputs
- 0 DBFS Reference Output Levels 18 or 24dBu (switchable)
- Frequency Response Output 20Hz – 20kHz ±0.05dB
- THD+N Output <-100dB (0.001) unweighted, 20Hz – 20kHz;
-1dBFS input - Dynamic Range 120dB A-weighted (typical), 20Hz – 20kHz
Digital performance
- Supported Sample Rates 44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 /
4.167) at 24 bit - Clock Sources Internal or from Dante Network Master
- Minimum Latency 1ms
Front panel output connectivity
- Headphone Outputs 1 x 1/4″ stereo jack
- Line Outputs 2 x Male XLR
- PSU (PoE And DC) 1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector
- Network Green LED: Indicates device is network master or network
slave, shows valid network lock
Headphone output
- 0 DBFS Reference Levels Headphones 19dBm
- Headphone Frequency Response 20Hz – 20kHz ±0.05dB
- Headphone THD N <-100dB (0.001) unweighted, 20Hz – 20kHz;
-1dBFS input - Headphone Dynamic Range 118dB A-weighted (typical), 20Hz – 20kHz
- Output Impedance 5O
- Headphone Impedance 32O – 600O
Power
- Power Over Ethernet (PoE) Complies with IEEE 802.3af class 0 Power-over-
Ethernet standard - DC Power Supply 1 x 12V 1.2A DC Power Supply
- Power Consumption PoE: 11.0W – DC: 9.8W
- Operating Temperature Operates at up to an ambient temperature of 50
degrees Celcius
