Beryllium inverted dome tweeter

The inverted dome tweeter is a hallmark of Focal. As a result of more than twenty years of development into a tweeter that could produce a high output, but without requiring high energy input and without increasing directivity. The introduction of the pure Beryllium dome, capable of covering 5 full octaves from 1,000 to 40,000Hz constitutes a new decisive advance regarding new audio formats. This tweeter capacity to reproduce high frequencies with unmatched speed and transparency. At first the pure Beryllium tweeter was only available on the very high-end digital speakers of the Focal Professional lines (SM8 & SM11), but is now featured on the new SM6 series, allowing an unprecedented price/performance ratio.

The perfect complement to bass and infrasound

The “W” cone

Focal has been developing the technologies of composite sandwich cones for more than 15 years. The “”W”” process (Glass/Foam/Glass), used on the SM11, SM8 and SM6 lines, provides a true optimiza a true optimization of the frequency response by fine tuning of mass, rigidity and damping parameters. The balance between these 3 fundamental and often contradictory parameters is at the base of the outstanding sound neutrality of our speakers.

Specifications

• Inputs :

Type / Impedance – Electronically balanced / 10 kOhms

Connector – XLR

Sensitivity – Adjustable, +4dBu or -10dBV

• Bass – Midrange Treble – 150W rms, BASH® technology 100W rms, class AB
• Power supply :
  Local supply – 230V (1.6A fuse rating)115V (3.5A fuse rating)IEC inlet and detachable power cord
  Connection – IEC inlet and detachable power cord

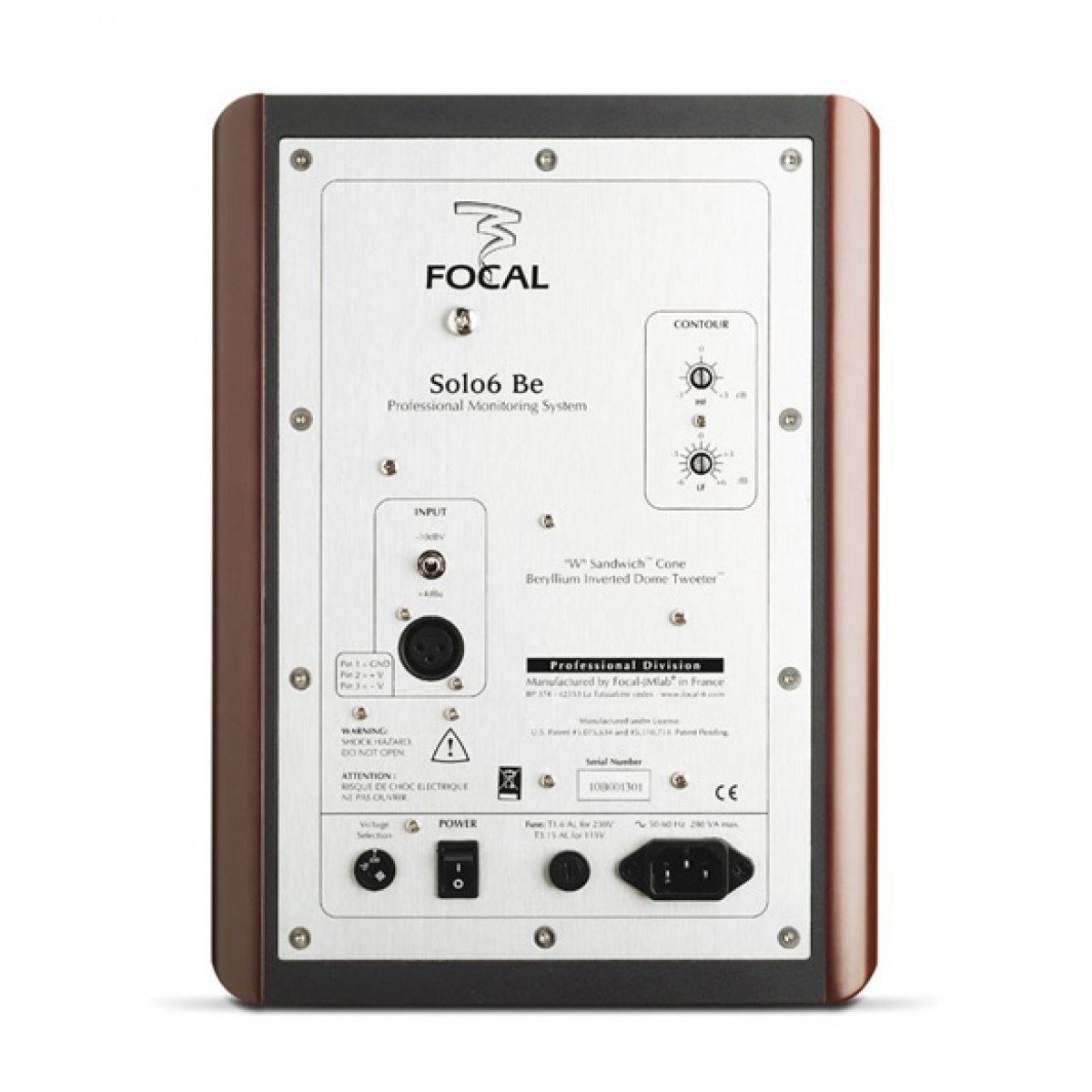

• User controls and indicators – Input sensitivity selection switch Adjustable tweeter and woofer levels by potentiometers On/off switch, voltage selector
• Light indicator – Power On LED
