Original price was: ₹192,400.₹182,780Current price is: ₹182,780.
In stock

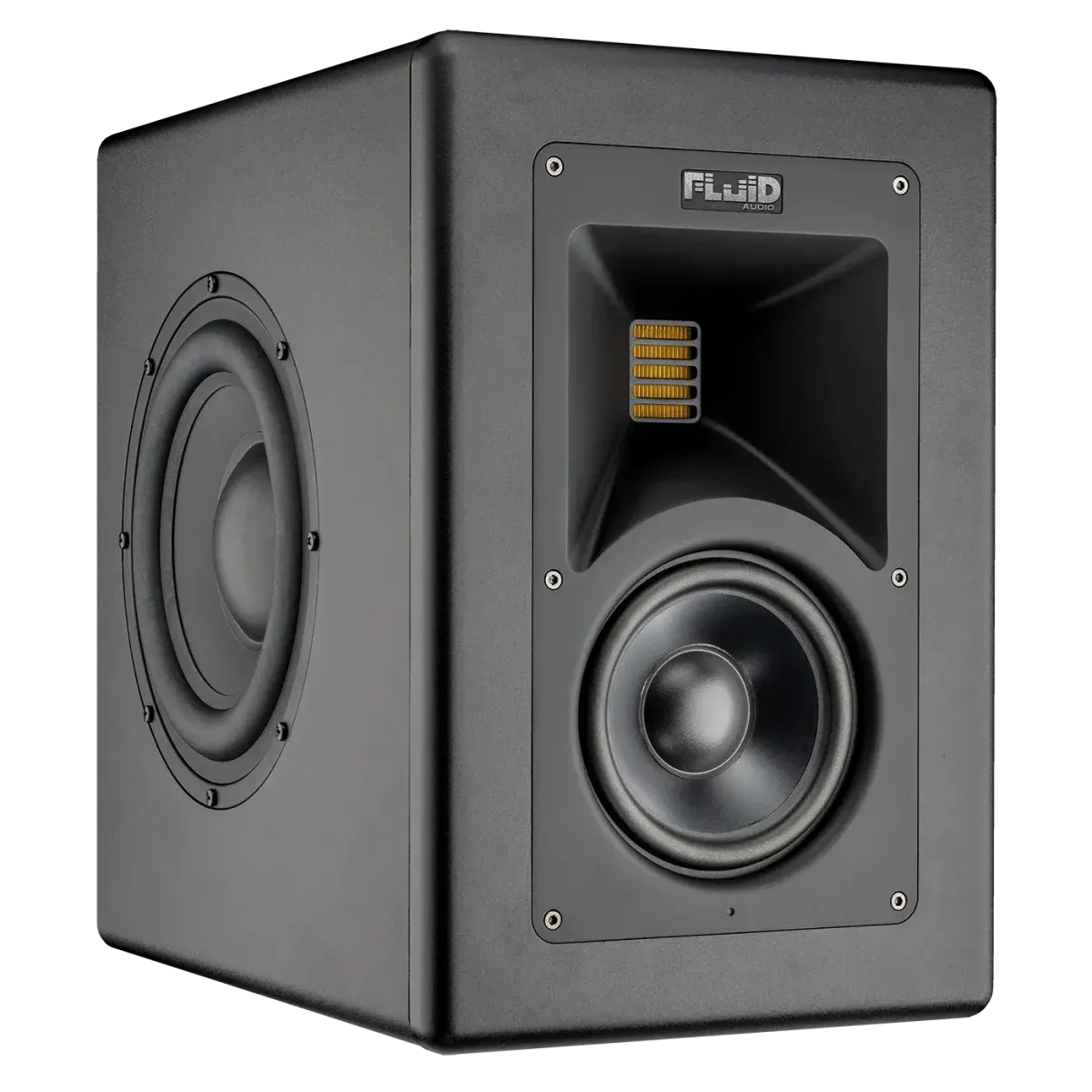

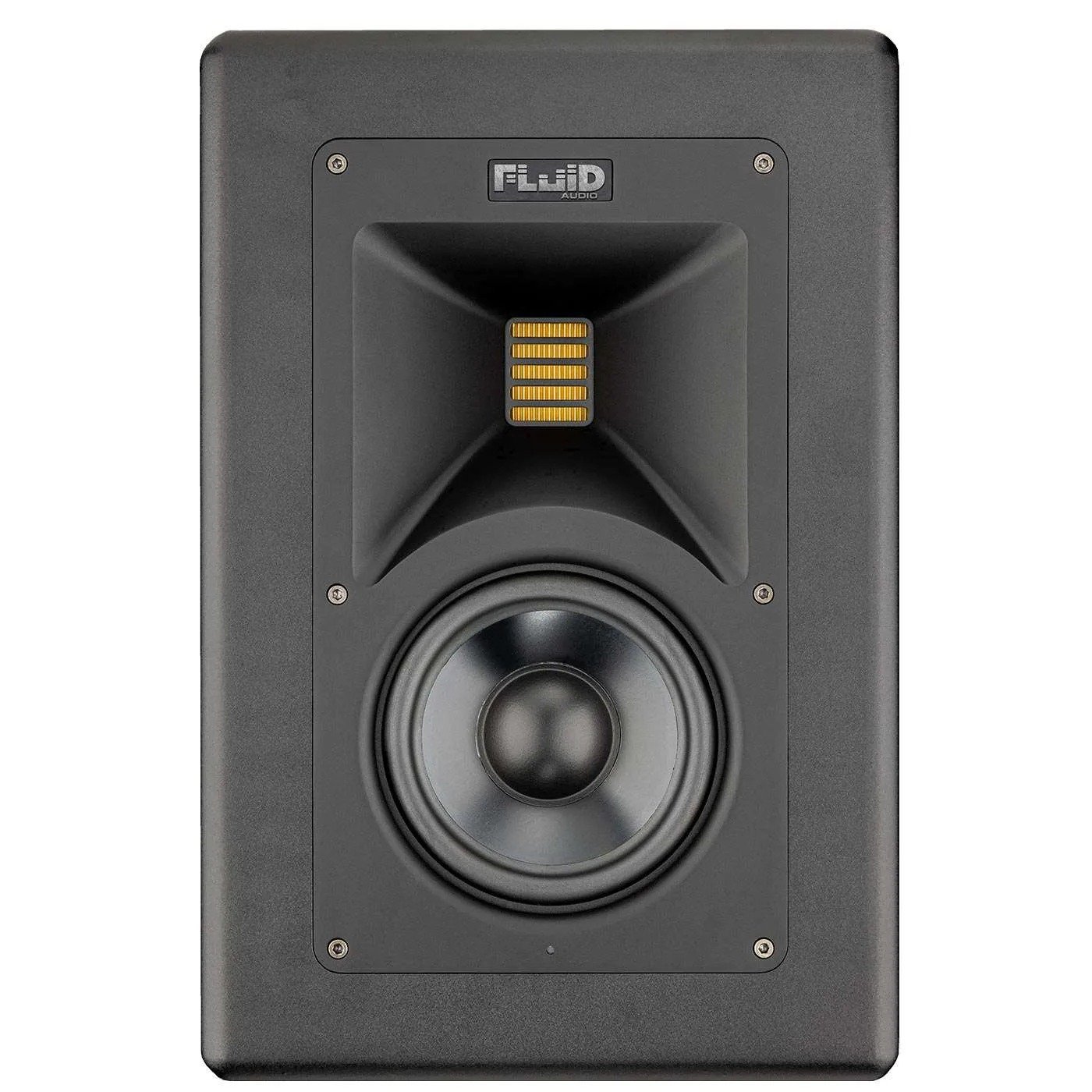

The Image 2 is a high-precision 3-way nearfield/midfield studio monitor designed for serious mixing and mastering. Powered by advanced Class-D quad amplification and DSP, it delivers ultra-flat frequency response, deep bass down to 40Hz, and crystal-clear imaging with minimal distortion.
Featuring Sonarworks SoundID Reference integration, it allows room calibration profiles to be loaded directly into the monitor for unmatched accuracy. Switch easily between full-range and Cubemix mode via footswitch to test your mix on “bass-limited” systems.

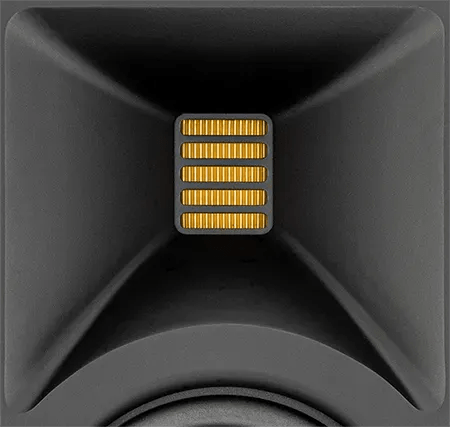

With an AMT tweeter, aluminum midrange driver, dual 8″ woofers, and future-ready USB support for profile management, the Image 2 is a cutting-edge monitoring solution built for modern studios.
Using the Fluid Audio DCT (DSP Configuration Tool) you can push SoundID Reference calibration profiles to the built-in embedded DSP platform onboard the Image 2.
This will compensate for room imperfections that acoustically treated and un-treated rooms sometimes have. Using SoundID Reference (v5.6 and newer) and a measuring microphone, you can measure your room, create calibration curves specifically for your environment and upload them directly onto the Image 2 with the DCT tool. The Image 2 supports up to 4 different profiles. As an example: Flat target, Dolby Atmos Music, Custom Target as well as Translation Check. All of these can be loaded as different profiles and switched between using the DCT tool running on Windows or OSX. (USB has to be connected to both monitors to switch between the profiles).
Fluid Audio has ingeniously incorporated precision accuracy, controlled directivity. Impressively, this system maintains an extended bass response down to -3dB @38Hz (in chamber), ensuring a comprehensive audio experience. The Image 2 stands as a testament to uncompromising audio quality, catering to the discerning preferences of recording engineers and audio enthusiasts alike.
In essence, Fluid Audio’s Image 2 offers a complete audio solution, blending pinpoint accuracy, directional control, and a diverse range of input options, all within a space-saving design. Its exceptional bass performance makes it a preferred choice for those seeking exceptional sound quality in a compact format.
Fluid Audio Image 2 DSP board feature great performance in every aspect. Flagship discrete AD/DA converters. Together with well optimized signal circuitry improves the S/N ratio to 115 dBa.
The in-house developed digital signal processing system introduces a range of features that greatly enhance the studio experience. In addition to the analog XLR input, there are an AES digital in and SPDIF IN/out, enabling the possibility of daisy chaining two Image 2 speakers. Moreover, the digital connection bypasses interface conversions, effectively reducing unwanted artifacts.
| Max SPL | 116 dB (Dual Monitors) 113dB (Single) |
|---|---|
| Frequency Response | ± 2.2dB 40Hz-20kHz ; -3dB @ 38Hz |
| Crossover | Bass / Mid : 154Hz |
| Driver Dimensions | 2 x 8" Bass + 1 x 5" Midrange + ⌀ 1.1" x 1.7" AMT Tweeter AMT Tweeter unfolded size 4.5" x 1.1" / 114 x 28 mm (total radiation area) |
| Amplifier Power | 2 * 225 W Bass (Class D) |
| Signal Processing | AD Converter : 24 bit |
| Audio Input Connectors | Analog XLR/TRS, Digital AES (supports AES/EBU) and SPDIF connection |
| Acoustic adjustments rear panel | High Freq: -1, 0, +1 |
| Rear panel other | Digital / Analog selector |
