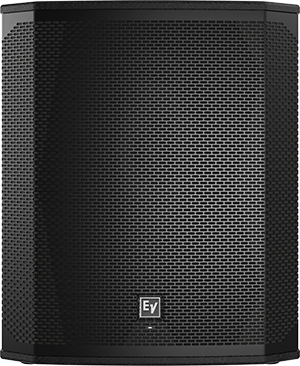

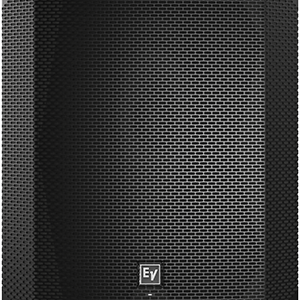

Electro Voice ELX200-18SP 18″ powered subwoofer
Brand:
Electro Voice
Product Highlights
ELX200-18SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (18-inch EVS-18L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall
₹184,284
In stock
Estimated delivery dates: May 7, 2026 - May 11, 2026
In stock
ELX200-18SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (18-inch EVS-18L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall
settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
Superior Bass Output
Experience deep, powerful, and distortion-free sound with the ELX200-18SP subwoofer. Equipped with a high-efficiency 1200W Class-D power amplifier and an 18-inch EVS-18L woofer, it delivers up to 132 dB SPL of dynamic bass. This subwoofer ensures rich low-frequency performance, perfect for live events, music venues, and DJs who demand exceptional clarity and punch. Engineered by Electro-Voice, the ELX200-18SP maintains consistent sound quality even at high output levels. Its durable 15-mm wooden enclosure provides excellent acoustic performance, making it an ideal choice for both portable and installed professional audio systems.
Intelligent Sound Control
The ELX200-18SP features integrated QuickSmartDSP, offering precise control and best-in-class processing. Users can access three setup presets—Music, Live, and Club—along with a three-band EQ, sub/top crossover options, and five user-programmable presets for easy customization. Visual limiter monitoring, input level meters, and master volume controls ensure an optimal gain structure every time. Whether you’re tuning your system for indoor or outdoor performance, the QuickSmartDSP interface allows effortless sound shaping, ensuring perfect tonal balance and system efficiency. Designed for professionals, it delivers the flexibility and control needed for superior sound performance.
Wireless Mobile Management
Control your sound system effortlessly with the EV QuickSmart Mobile app. Using Bluetooth Low Energy (BTLE) technology, the app allows wireless configuration, control, and monitoring of up to six ELX200 loudspeakers simultaneously. Adjust EQ, switch presets, monitor limiter status, and receive performance alerts directly from your smartphone or tablet. This innovative feature lets you fine-tune your sound from anywhere in the venue—no need to stand behind your speakers. Perfect for modern sound engineers, the QuickSmart Mobile app ensures complete command over your audio environment, enhancing convenience and workflow efficiency during live performances.
Features
- EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
- QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
- High-efficiency 1200 W Class-D power amplifier delivers up to 132 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.

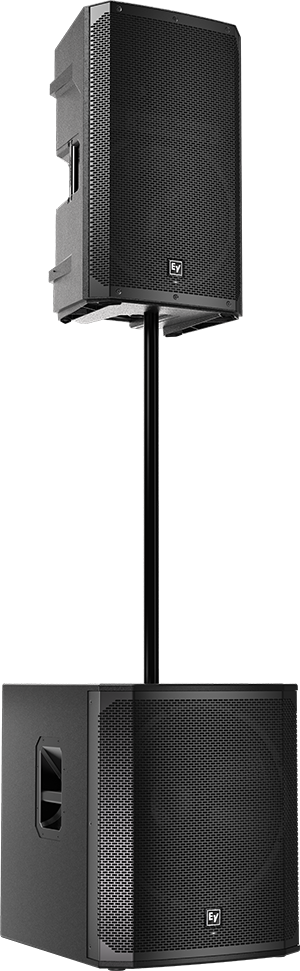

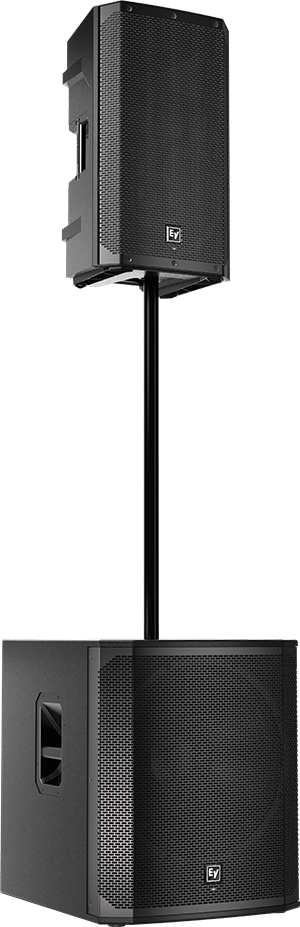

- Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
Tags: 18 inch 1200W PA subwoofer, Electro Voice ELX200-18 powered subwoofer, professional live sound bass speaker
| Frequency response (-3 dB) | 47 Hz – 105 Hz¹ |
|---|---|
| Frequency range (-10 dB) | 40 Hz – 145 Hz¹ |
| Maximum SPL | 132 dB2 |
| Power rating | 1200 W |
| LF transducer | EVS-18L 457 mm (18 in) |
| Low-Pass frequency | Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz |

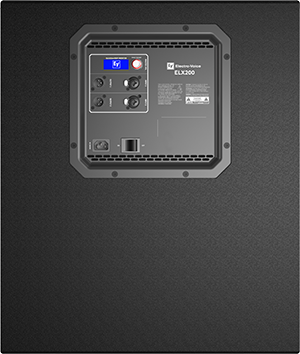

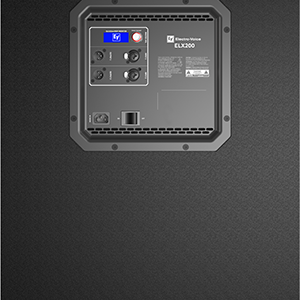

| Connectors | (2) XLR/TRS combo jacks and (2) XLR link outputs |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Color | Black |
| Dimensions (H x W x D) | 600 mm x 507 mm x 574 mm (23.7 in x 20.0 in x 22.6 in) |
| Net weight | 29.0 kg (64 lb) |
| Shipping weight | 33.1 kg (73.0 lb) |
| Power consumption | 100 – 240 V~, 50 – 60 Hz, 1.2 ~ 0.6A³ |
