Reliable UHF Wireless Performance with PLL Control

Name: Eikon WM700M - PLL UHF Wireless Handheld Microphone System - Suhavi Mart
Price: 10633 INR
Availability: InStock

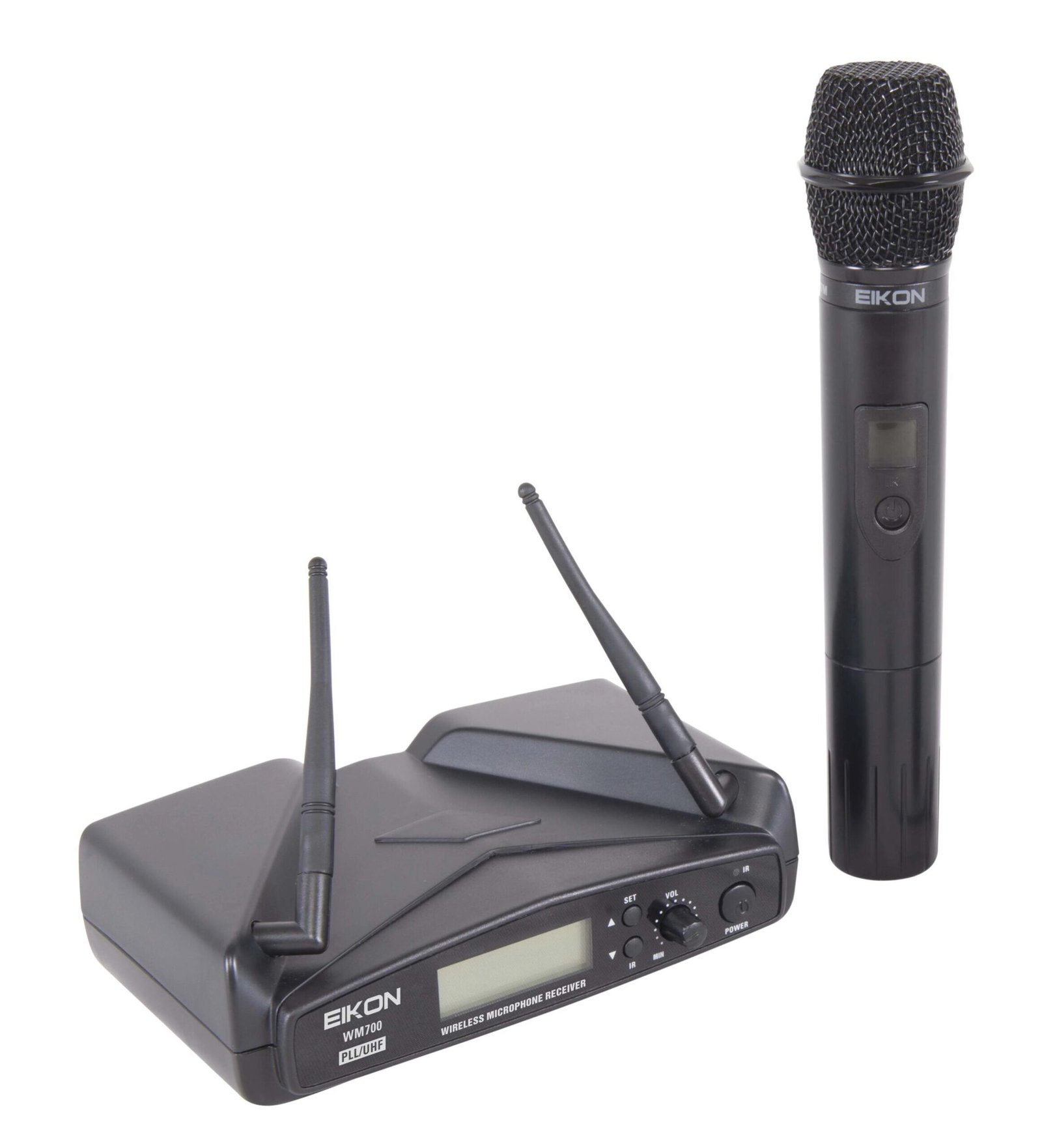

The WM700 Wireless Microphone System is designed to deliver professional-grade audio transmission using PLL-controlled UHF variable frequency technology. Its reliable performance is further enhanced by the 32 kHz Digital Tone Pilot, ensuring clear, interference-free audio across various environments.

Multiple Configuration Options for Every Need

Whether you’re a solo performer or managing multiple audio sources, the WM700 has you covered. Choose from five versatile combinations that include single and dual channel receivers, handheld transmitters, and bodypack transmitters equipped with headset microphones—tailored to meet diverse application requirements in live performances, conferences, and broadcast scenarios.

Flexible Frequency Bands & Simultaneous Use

The WM700 is available in two UHF bands—823–832 MHz or 512–562 MHz (WM700MA)—with 16 or 32 pre-set selectable frequencies. Its design allows up to 4 frequencies to be used simultaneously in the same location, making it an excellent choice for crowded frequency environments.

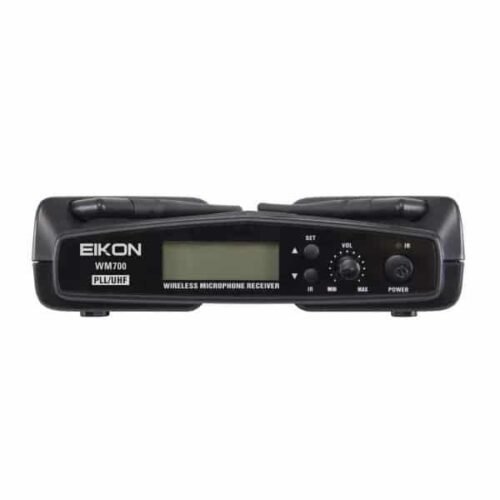

RECEIVER	Frequency Band UHF: 823-832 MHz or 512-562 Mhz (WM700MA) RF Sensibility -105 dBm RF Image/Spurious Rej. >70 dB RF Interference Reject. >70 dB RF Frequency Stability ±0.002% THD Distortion <1% S/N Ratio >105 dB Frequency Response 50 Hz – 15 KHz (±3 dB) Power Supply 5 V DC 500 mA Dimensions (mm) 175 x 135 x 45

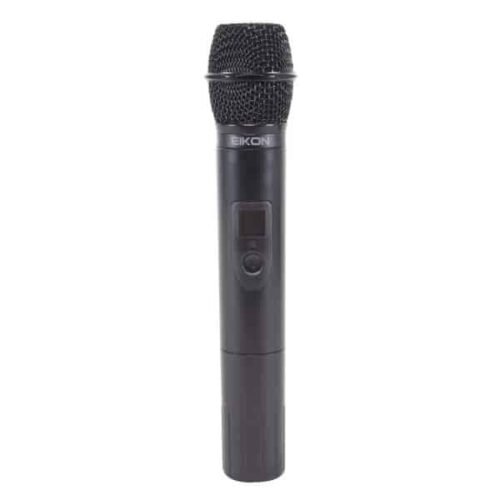

HANDHELD TRANSMITTER	RF Frequency Band UHF: 823-832 MHz or 512-562 Mhz (WM700MA) RF Power <10 dBm Modulation method FM (F3E) RF Max deviation ±40 KHz RF Frequency Stability ±0.002% Spurious Emission under limits EN 300422 Frequency Response 50 Hz – 15 KHz (±3 dB) Power Supply 2×1.5V AA alkaline bat Dimensions (mm) 235 x 50 x 50
