Professional-Grade Wireless Audio with PLL Control

Name: Eikon WM700DM - PLL UHF Wireless Handheld Microphone System - Suhavi Mart
Price: 14897 INR
Availability: InStock

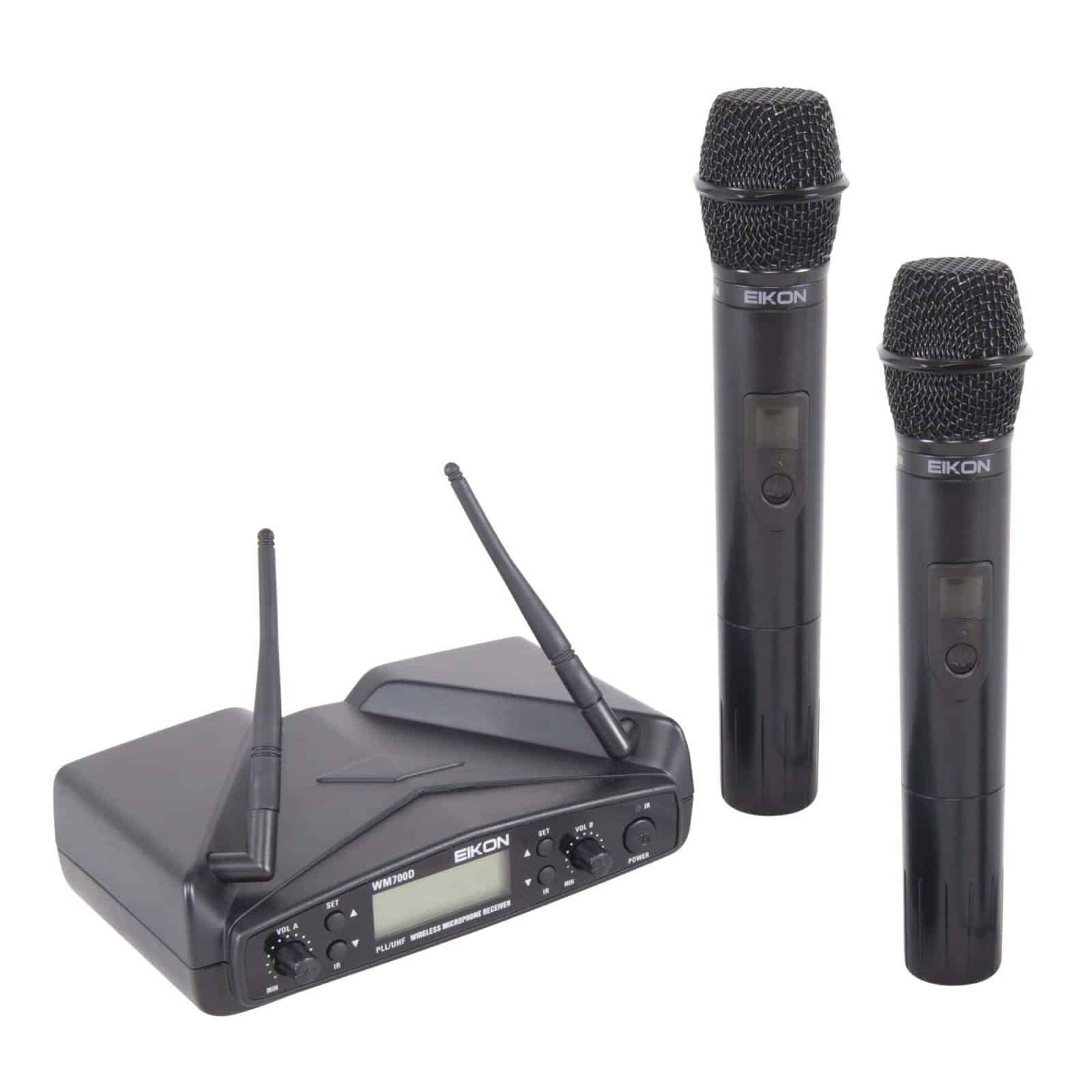

The WM700 Wireless Microphone System is a high-performance, PLL-controlled UHF variable frequency system designed for reliable and crystal-clear audio transmission. Whether you’re on stage, in a conference, or recording content, this system ensures stable connectivity and professional-grade audio output. One of its standout features is the 32 kHz Digital Tone Pilot, which enhances signal integrity and minimizes interference, allowing you to focus solely on your performance or message.

Versatile Configurations for Every Need

The WM700 system offers unmatched flexibility with five different combination options, including single-channel or dual-channel receivers. Users can choose between handheld transmitters, bodypack transmitters, or a headset microphone setup, making it ideal for vocalists, public speakers, fitness instructors, and broadcasters alike. This versatile approach ensures you can customize your setup according to your specific requirements.

Dual Frequency Bands with Simultaneous Use

Available in two distinct UHF frequency bands—823–832 MHz and 512–562 MHz (WM700DMA)—the system supports groups of 16 or 32 pre-set frequencies. This allows for simultaneous multi-channel operation, with up to four frequencies usable in the same location per frequency band. Whether you’re setting up for a concert or a corporate event, the WM700 ensures smooth, interference-free performance across multiple channels.

High Fidelity Audio & Wide Coverage

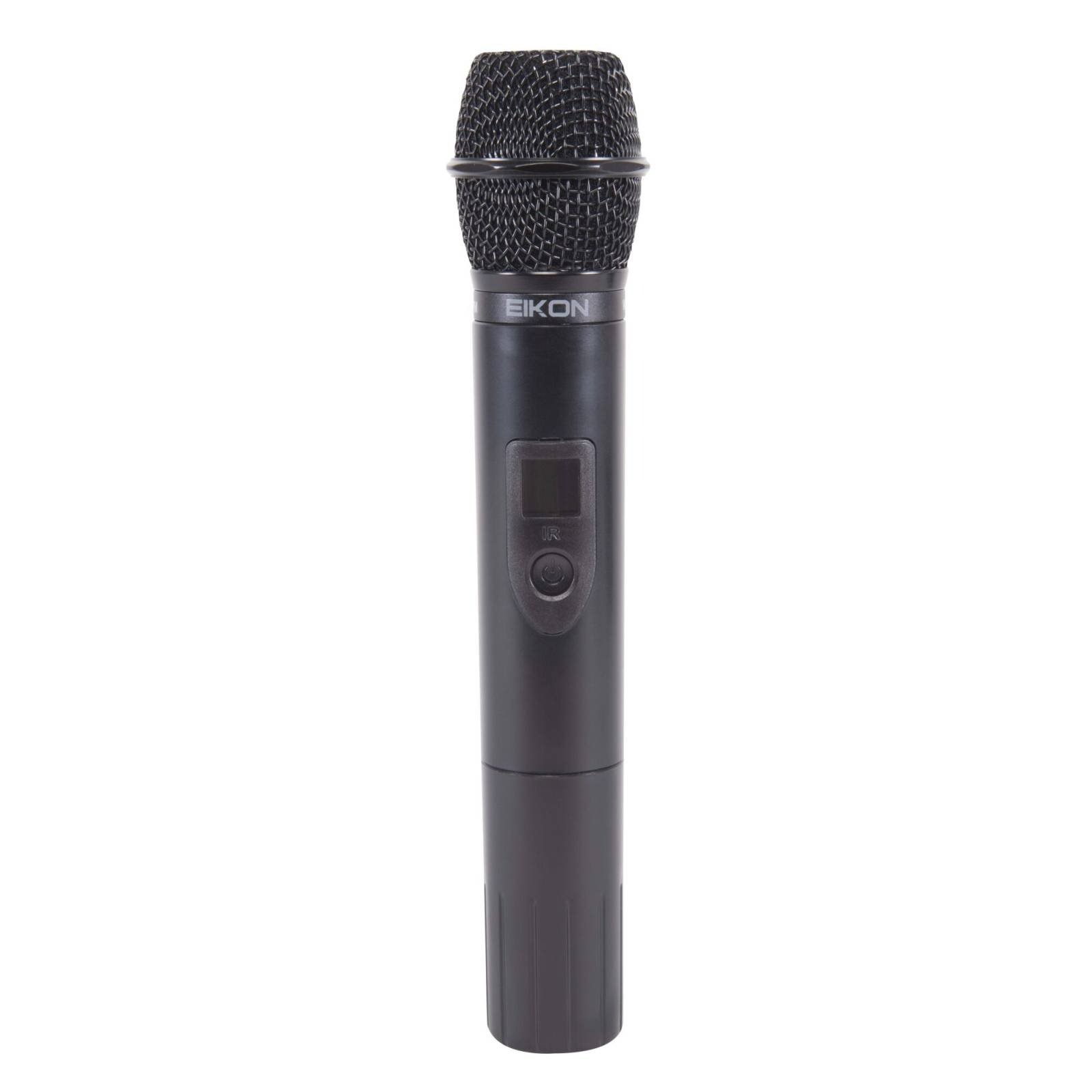

Engineered to deliver precise and detailed sound, the WM700 boasts a frequency response of 50 Hz – 15 kHz and a signal-to-noise ratio of 105 dB. The included cardioid dynamic capsule in each of the two handheld transmitters effectively isolates vocals while minimizing background noise. With a range of up to 30 meters (100 feet), performers can move freely without losing audio clarity or stability.

RECEIVER	Frequency Band UHF: 823-832 MHz or 512 – 562 Mhz (WM700DMA) RF Sensibility -105 dBm RF Image/Spurious Rej. >70 dB RF Interference Reject. >70 dB RF Frequency Stability ±0.002% THD Distortion <1% S/N Ratio >105 dB Frequency Response 50 Hz – 15 KHz (±3 dB) Power Supply 5 V DC 500 mA Dimensions (mm) 175 x 135 x 45
HANDHELD TRANSMITTER	RF Frequency Band UHF: 823-832 MHz or 512 – 562 Mhz (WM700DMA) RF Power <10 dBm Modulation method FM (F3E) RF Max deviation ±40 KHz RF Frequency Stability ±0.002% Spurious Emission under limits EN 300422 Frequency Response 50 Hz – 15 KHz (±3 dB) Power Supply 2×1.5V AA alkaline bat Dimensions (mm) 235 x 50 x 50
