Drives Your Creativity

Specially full-expanded based on EFNOTE 7
Full-sized 5-piece shell and 5-piece cymbal set
360° flat sensing with multi-sensor technology
World’s first STAK™ 17″ FX cymbal
Player centric design

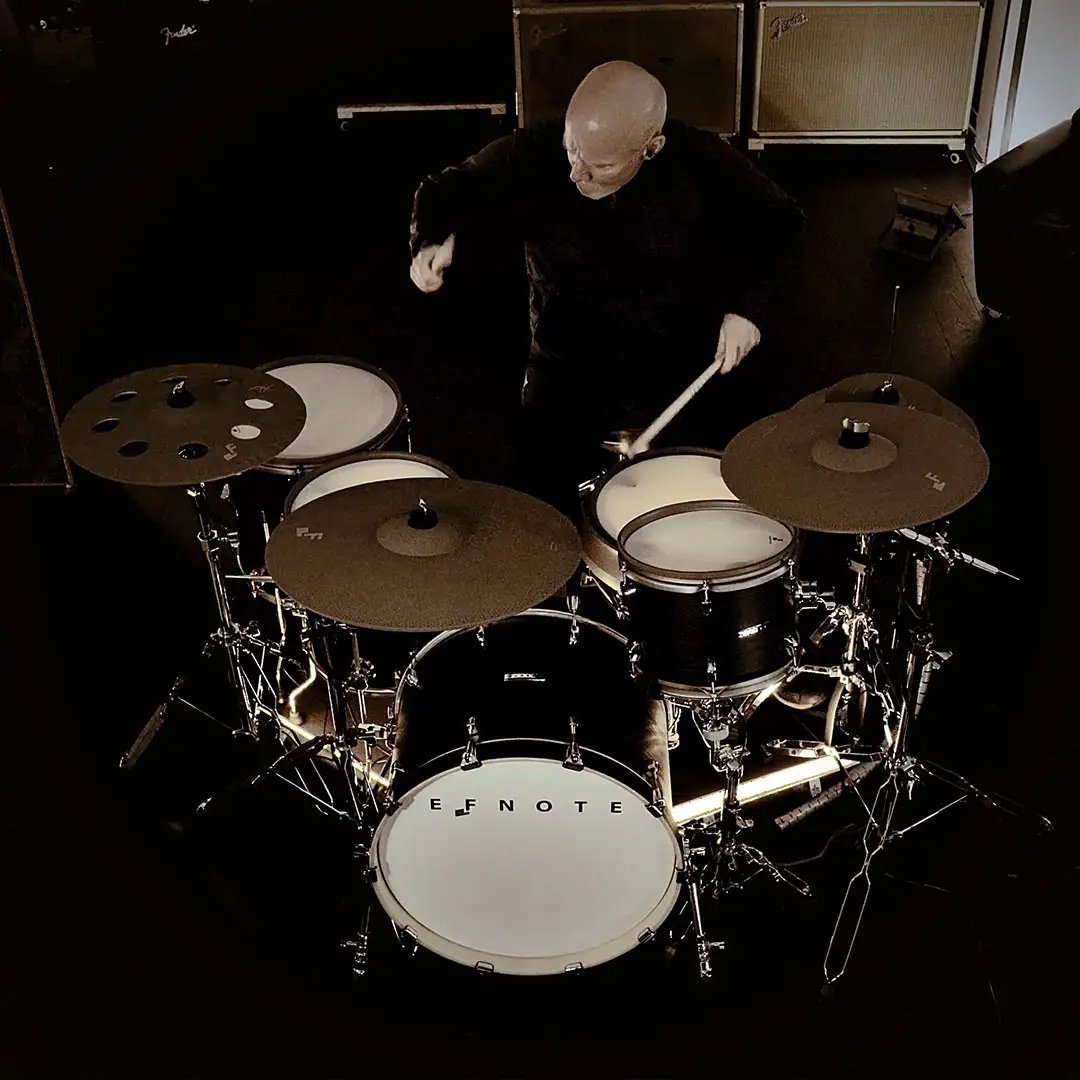

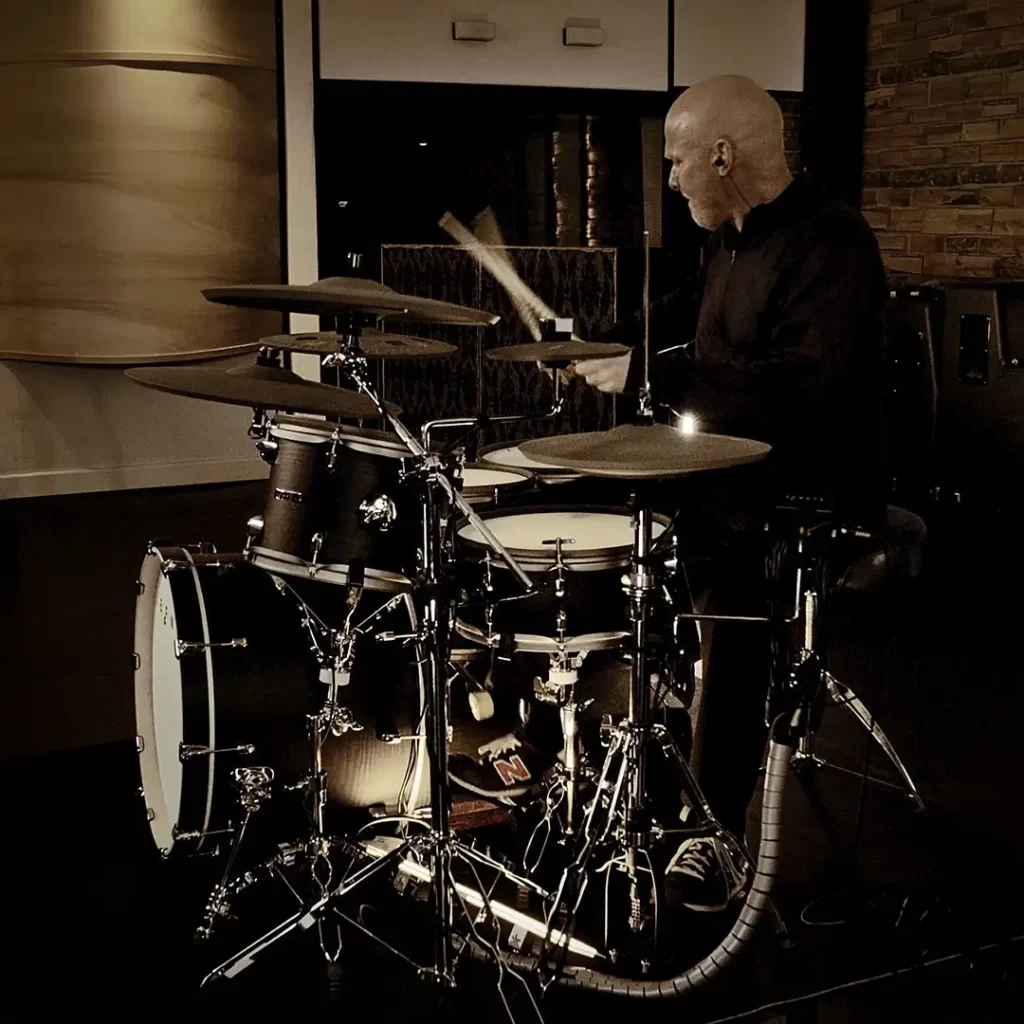

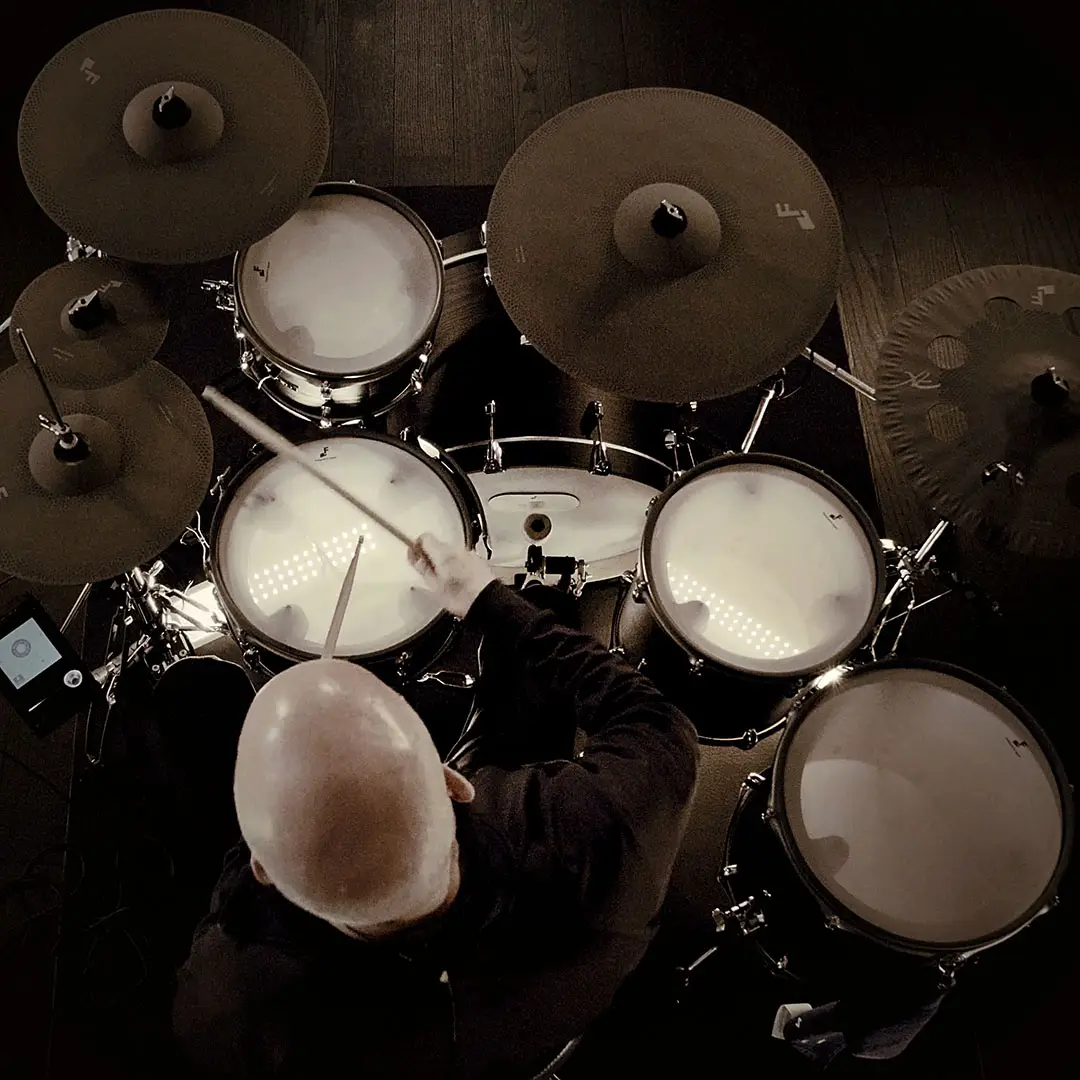

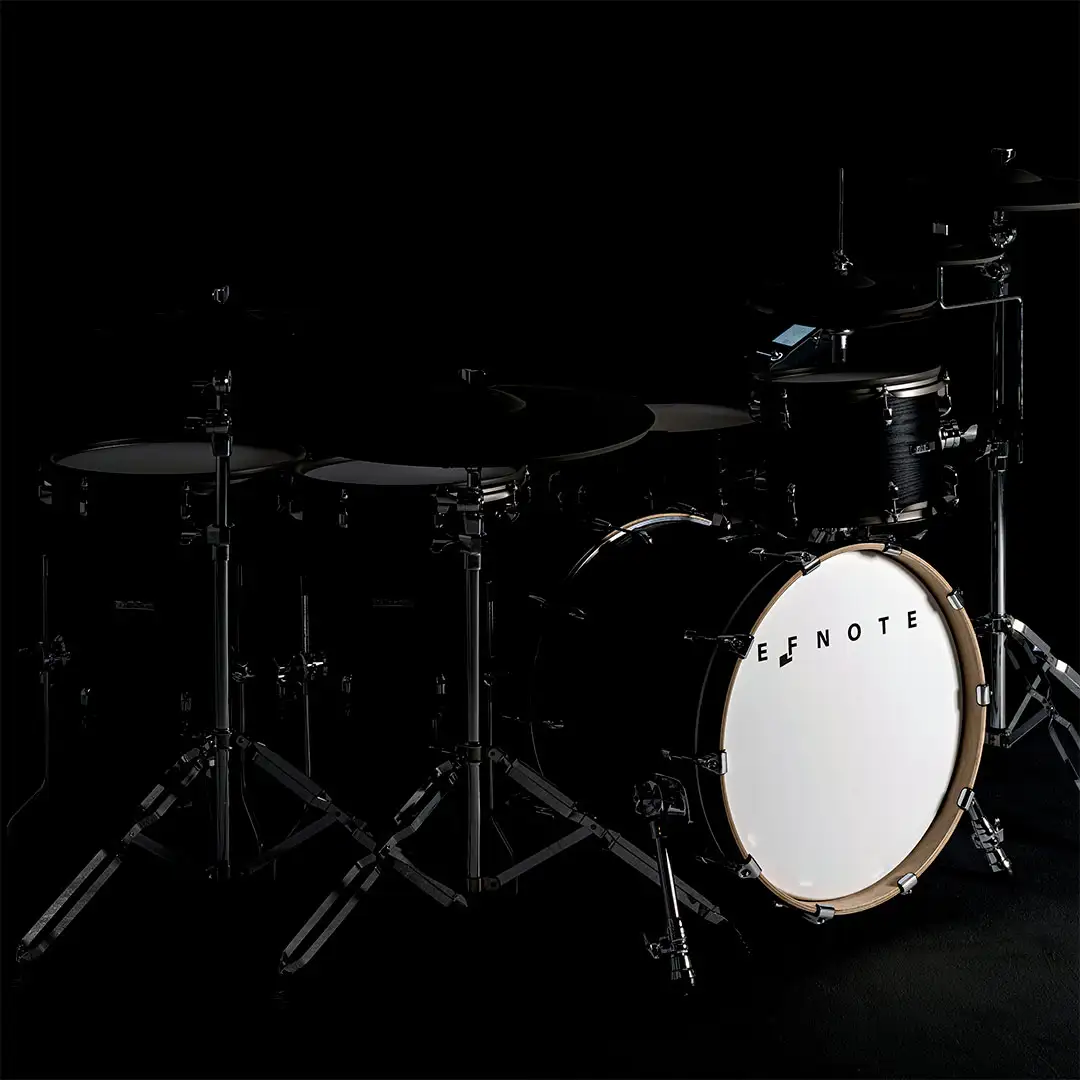

Authentic Presence

Proves your musicality to the audience on stage
Low, wide and bold silhouette asserts its potential
Dignified black oak-ish finish
Realistic swaying of full-sized cymbals that visualize its sound

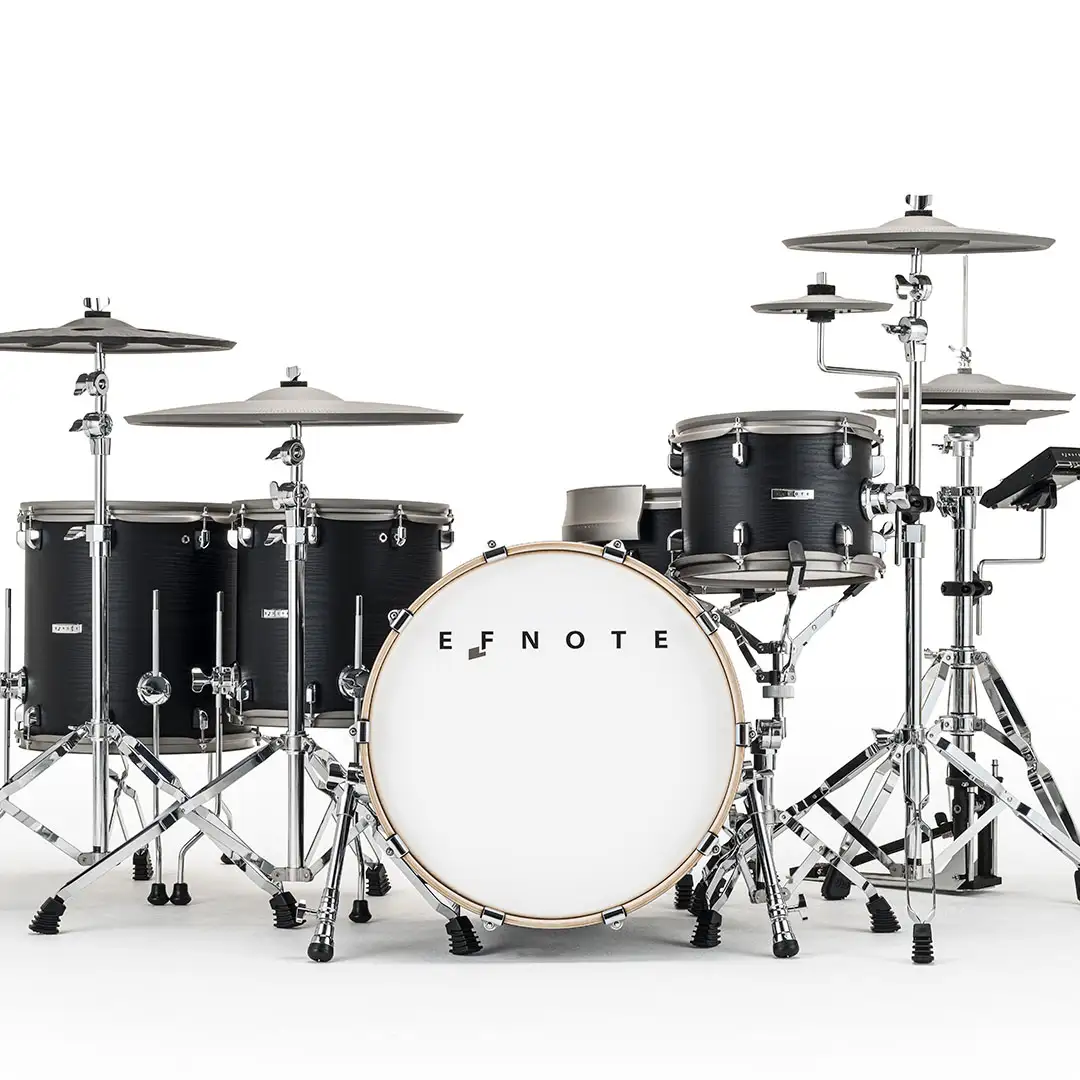

Tradition and Innovation

Modern but classic setup with:

1x basket stand mounted tom
2x floor tom
1x holed effect cymbal
1x crash cymbal
1x splash cymbal

Portrays Textures of Vintage Drums

Good old collector’s drum sets are newly recorded for EFNOTE 7/7X
Contains attack and eKick elements that can be layered to enhance the sound
Dedicated remastered acoustic drum sounds

17" FX Cymbal - Real-Feel

Light touch and real wobbling
360° flat sensing
Special surface design with dedicated dark-gray color and hammered texture

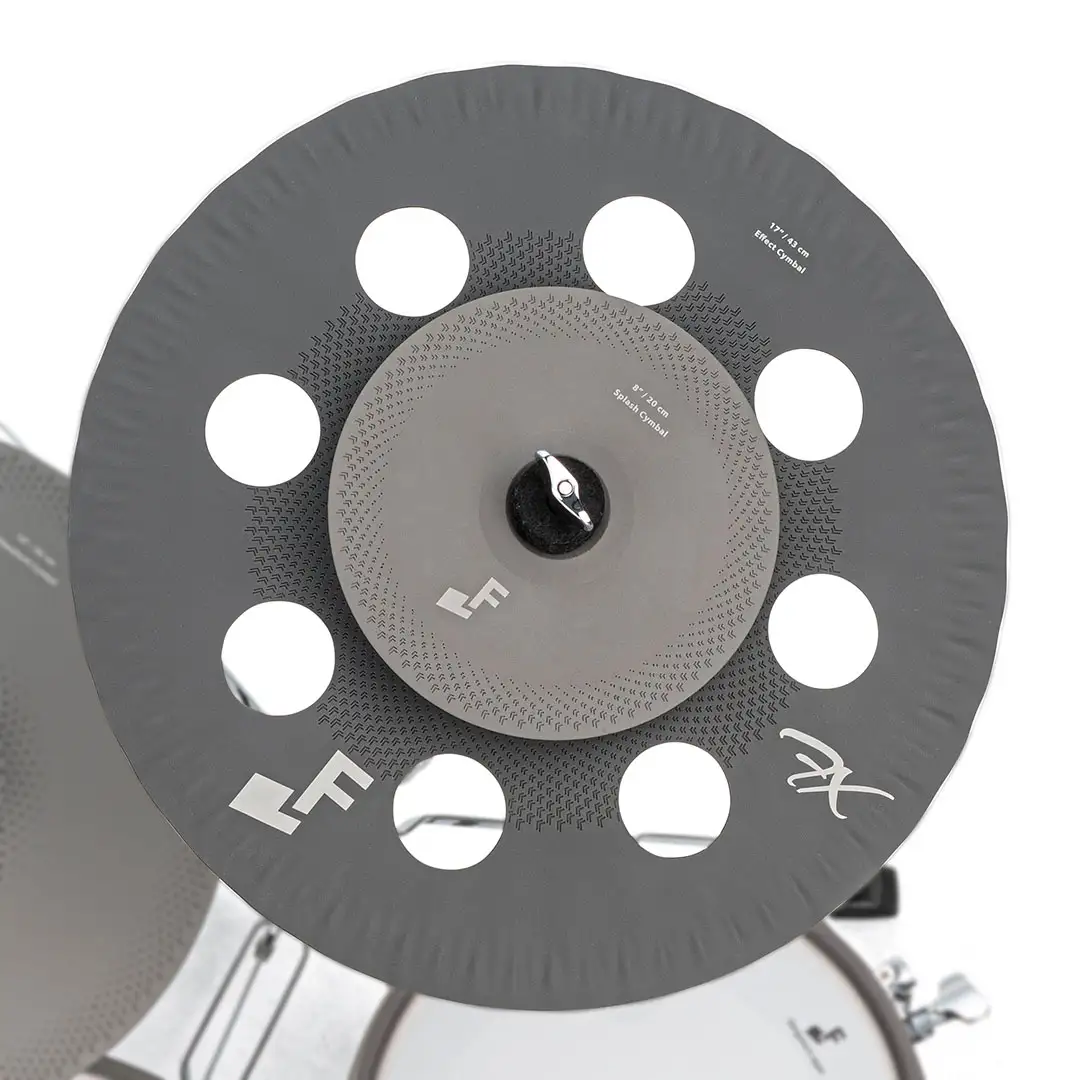

17" FX Cymbal - Stackable

World’s first STAK™ mount design enables stacking electronic cymbals
In the EFNOTE 7X configuration, the 8″ splash cymbal can be stacked on the 17″

17" FX Cymbal - Suspendable

STAK™ also provides a suspended cymbal setting with clean wiring

20" Ride Is Here!

The 20″ diameter provides slow wobbling of edge and the quick response of bow/cup
Multi-sensored 360° play/choke area
360° free-swinging design
Responsive thin edge
Hammered texture surface

Finest Hi-Hat Cymbals

14″ top/bottom cymbals
World’s first multi-optical sensing to capture the motions in 3D
Tru-Motion™ technology for expressiveness leap
360° free-swinging top/bottom cymbal design

Beautiful Cymbal Surface

Elegant warm-gray and refined dark-gray (17″ FX) surface with fine engravings
Clean silicone rubber surface that is resistant to drumstick marks

9-Sensor Snare Drum

14 x 5.5″, 10 lugs, birch wood shell, 2ply mesh drum head
Multi-sensor for hotspotless and high-resolution sounding
High head tension tuning available
Wide and adjustable side-rim

Independent Side-Rim

Easy, intuitive and reliable
No switch operation required
Elegant arc design

20" Kick, Unwavering Confidence

20 x 15″, 10 lugs, birch wood shell, 2ply mesh drum head
Props the whole set at the center of stage
Stable multi sensing for single/double beater(s)

Modern Two Floor Toms Style

13 x 13″, 8 lugs / 15 x 15″, 8 lugs
Birch wood shells, 2ply mesh drum heads
Multi-sensor for hotspotless and high-resolution sounding
Low-rebound 2ply mesh drum head
Low head tension tuning available

Ultra-Compact Sound Module

Ultra-small form factor with uncompromised features
Metal chassis and aluminum finish
High quality DAC and audio circuit
High power headphone amplifier
Touch screen intuitive user interface

ELISE™ Sensing Processor

Capturing drummer’s intentions from each stroke
Low latency, wide dynamic-range, consistent and stable sensing
Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

Full-Scale Acoustic Sound

Full stereo acoustic drum/cymbal samples recorded by EFNOTE
Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
Raw sound without resynthesis

For Training

Multi-function metronome with beat LED indicator
Built-in metronome speaker for daily training without headphones
On-board drum recording function (15 tracks)
Stroke Analyzer
Rhythm Box feature provides over 90 basic drum beats

For Recording

USB 8-ch individual audio outputs with Mac / Windows (ASIO)
USB 2-ch audio inputs for playback
Analog 4-ch audio outputs
USB MIDI in/out with individual MIDI channels
MIDI output (5-pin DIN)

For Small Gigs

Setlist feature enables you to configure kit order with tempo for each song
Kick and Snare can be output individually with analog 4-ch outputs
Click and Audio-In can be assigned only for headphones
High-power headphones output
MIDI output (5-pin DIN)

Stroke Analyzer

“Stroke Scope” displays your strike points on time-line
“Accuracy Score” estimates your strike accuracy

Sound Edit

Tuning, Muffling, 2-band EQs for each pad
Pad layer function can overlay two sounds
User Inst Library enables you to store 128 customized instruments
On-board reverb
Dedicated level control screen

Flexible Audio Routing

10-ch output buses
Flexible output routing for each pad
Output assignable click
Output: 4-ch analog / 8-ch USB
Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
Bluetooth MIDI
EFNOTE Tools App for control remotely

EFNOTE Tools

Get New Drum Kits

Visit the official Kit Library to get the new drum kit data.

There you will surely find ideas that inspire your creativity.
