No More Acrylic Panel

Name: EFNOTE 707 Complete Set (CS7 stand) - Suhavi Mart
Price: 930405 INR
Availability: InStock

There is no need to isolate your drummer from the choir, acoustic instruments, your audience or congregation. Your drummer is now free to connect and engage with everyone!

EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity, balance and control.

Stage-Box Reliability

EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show.

Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad.

Each channel is equipped with HPF, 2-band EQ, individual compressors for Bus 1-6, and ground lift switches.

Flexibility for All Music

EFNOTE PRO supports 7 shells and 8 cymbals. All pads are individually wired, so players can adapt to any musical environment.

All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time.

In addition, with 12-ch of multitrack USB Audio and 16-ch USB MIDI running simultaneously, a drummer, producer or mixer have quick access to editing, in order to meet artist’s budget requirements.

Design

Innovative Two-Piece Design
The two-piece sound module provides both operability and expandability required by professionals

Low-profile and compact control surface with touch-screen full-color LCD
Floor-standing base unit with robust enclosure and reliable cable connections

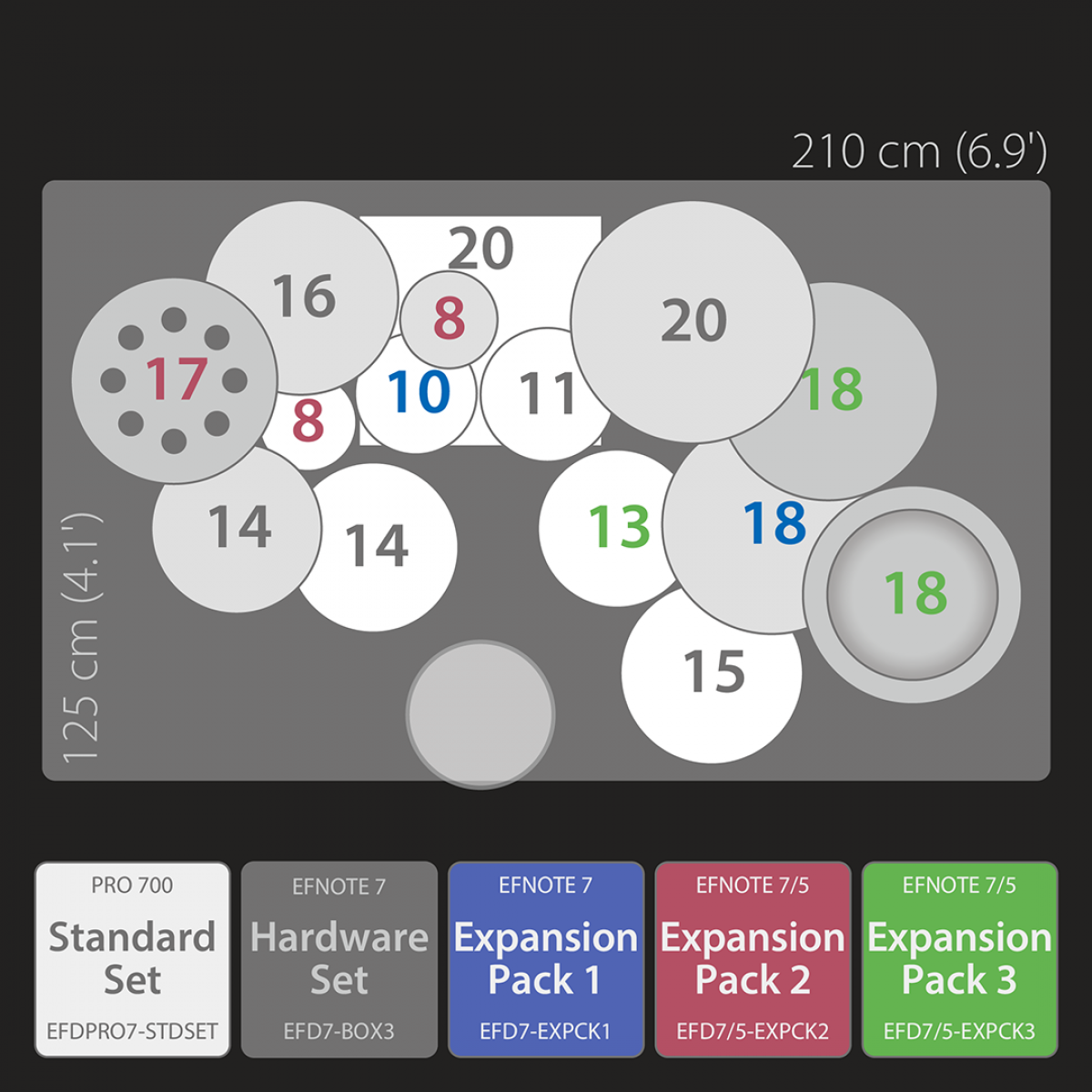

Perfect Customizing

Mix and match the expansion packs and optional components to create your ideal set
Consistent pad design
Supports EFNOTE 3/3X/5/5X/7/7X pads

Beautiful Kit Images Inspire

Kit themes that highlight the musicality of each kit
Simple interface design for professionals
High-definition and high-brightness screen

Contains Legendary Drums Sets

The delicate resonance of aged shells are newly captured, recorded by EFNOTE
Raw and organic, NOT synthetic and electronic
Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

Discrete Foot Stage Light

A foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box
Great for dark stages
Adjustable brightness

Diverse Cymbal Collection

Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
Contains modern trash/effect/stacked cymbal sounds

Overlay Tone (Layering)

Elements such as tambourines and EDM kicks can be easily layered over each drum sound
Attack Elements for reinforcing the attack
Percussion sounds
eKick, eSnare and eClap sounds

Playability

7 Shells and 8 Cymbals
Build a custom kit for any stage
5x 2-zone input for toms
6x 3-zone (including 3-zone hi-hat), 2x 2-zone input for cymbals
Traditional individual trigger connections (TRS), for professional reliability

High-Powered Headphone Amp

1x 1/4″ jack + 1x 1/8″ jack for headphones (can be used simultaneously)
Dedicated 2x headphone amp circuit for enough loudness
High quality DAC and audio circuit

ELISE™ Sensing Processor 2.0

We’ve evolved, delivering improved sensitivity for capturing your most delicate touch
The new algorithm for even more natural dynamics

Full Drum Pad Lineup

Birch wood shells and 2-ply mesh drum heads
Multi-sensor for hot-spotless and high-resolution sound
20” and 16” kick drums
14” and 12” snare drums
8”, 10”, 11” rack toms
12”, 13”, 15” floor toms

“World's First” Cymbal Pads

Tru-Motion™ 14” hi-hat cymbal
8” to 20” full size cymbal lineup, the first of their kind
New 18” China cymbal and 17” effect cymbal with stackable/suspendable STAK™ mount

12-ch Buses to the Console

12-ch buses, and 12x XLR balanced bus output
Dedicated bus compression for Bus 1 to 6
HPF and 2-band EQs for Bus 1 to 12
Stereo-Link for two adjacent buses
Ground lift switches

XLR Inputs from the Console

2-ch Monitor In (XLR balanced) for monitoring return from the console
2-ch Line In (TS unbalanced) for an additional sampling/percussion pad
Ground lift switch for Monitor In

EFNOTE Desktop Tools

Allows for simple and intuitive management of UT and IX.
Compatible with Mac and Windows.
Visit the V2.0 page to get started.

Remote Control

EFNOTE Tools App available for remote control/file-management
Save and upload kit/trigger/bus settings
Control the bus assign/effect/mix/output settings
Select the drum kit and preview each pad sound

USB 12-ch Multi-Track Recording

Simultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available
Confirmed with major DAWs
5-pin DIN MIDI Out

Bluetooth®

Wireless connection with a smartphone or tablet for playing along

*(EFNOTE app will be available)

Centralized Volume Control

Simply press the left knob to access the central volume management window
One-touch switching between Main L/R and Bus Mix L/R monitoring
One-touch mute for Monitor In

Graphical Bus Assigning

Graphical bus assignment helps you setup your intended routing correctly
All Pads can be assigned as both stereo and mono outputs
Click, Line In, Monitor In can be set to a bus individually

Bus Effect Overview

Allows viewing of each bus’s settings of effects and stereo link in one window
HPF, EQ, Comp, and Stereo-link can be selected ON/OFF at once

Brand:	EFNOTE
User Interface	Full Color, Capacitive Touchscreen Display 2x Multi-Function Knob (with Ring LED) 1x Value Knob (with Ring LED)
Trigger Interface	3-Zone (7x): Snare, Crash 1/2/3/4(FX), Ride, Hi-Hat 2-Zone (7x): Tom 1/2/3/4/5, Crash 5(Splash), Crash 6(China) 1-Zone (1x): Kick ELISE™ 2.0 Trigger Sensing Chip
Audio / MIDI Interface	Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12) Line Out: 2x 1/4” TS Phone (-10dBV, Unbalanced, +14dBV Max) Phones Out: 1x 1/4” Stereo (320 + 320 mW @32Ω), 1x 1/8” Stereo (320 + 320 mW @32Ω) Monitor In: 2x XLR(F) + 1/4” TRS Combo (+4dBu, Balanced, +24dBu Max), GND Lift Sw Line In: 2x 1/4” TS Phone (-10dBV, Unbalanced, +10dBV Max) 0dBu = 0.775Vrms, 0dBV = 1.0Vrms USB: B Type USB 2.0 Hi-Speed Audio: 12ch Out (48kHz/24bit) / 2ch In (48kHz/16bit), Mac/Windows ASIO MIDI: In/Out Bluetooth: Audio Input (A2DP) Bluetooth MIDI In/Out (Bluetooth Low Energy/GATT) Transmission Frequency: 2402-2480 MHz, Maximum Transmit Power: 2.5 mW EIRP MIDI Out: 5-pin DIN
Other Interfaces	Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only) USB (Flash Drive): A Type USB 2.0 (supports flash drive only) USB (For Service): B Type (for service purpose only)
Drum Kits / Instruments	Preset Drum Kits: 23 (editable) User Drum Kits: 100 Instruments: Acoustic Drums/Cymbals (stereo), Percussion (stereo), Attack Elements Tru-Aco™ Sound Technology
Edit Parameters	Level, Pan, Tuning, Muffling (for each pad) 2-Band EQ (for each pad) Overlay Tone (for each zone) Global Pan (for all drum kits in common) Changable Kit Name Color and Background Kit Image (for each user drum kit)
Click	4x Click Setup Memory Tempo (BPM): 40.0-240.0 (0.1 Step) Beat (Time Signature): 1/4-13/4, 2/8-13/8
Set-List	15x Set-List (20 slots for each list) Array-style 20 slot buttons Slot Tag Color and Slot Notes feature Tempo and Beat Settings for each slot Each set-list can be saved to a USB flash drive
Recorder	Tracks: 15 Resolution: 480 TPQN
Buses	16 Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R) Bus HPF and EQ (Bus 1-12), Bus Compressor (Bus 1-6) 12x Bus Outputs (12x XLR Analog and 12ch USB Audio) Bus Mixer Main HPF and EQ (Main L/R)
Other Features	Inst Expansion Foot Light Ground Lift Switches (for Bus Out and Monitor In) Full Metal Cabinet Guard Handles
Dimensions / Weight	Control Surface: 128 (W) x 172 (D) x 30 (H) mm / 700 g Base Unit: 206 (W) x 210 (D) x 238 (H) mm / 3,250 g Excluding protrusions
Power Supply / Current Draw	AC Adapter (FJ-SW1202000N-EFNOTE) DC 12V / 1.5A
Accessories	1x Link Cable 2.0m (EFD-DSUB9-2) 1x AC Adapter (FJ-SW1202000N-EFNOTE) 10x Trigger Cable 3.0m (EFD-TRS-LL3) 1x Hi-Hat Cable L 3.0m (EFD-DIN6-LL3) Module Mount Set Smartphone Tray Set Tuning Key Cable Ties Cable Labels Quickstart Guide
