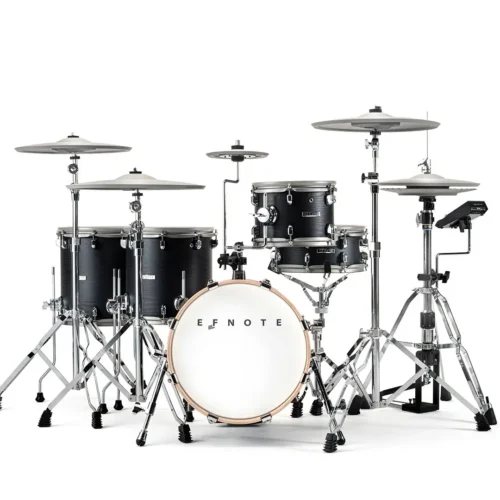

Completion of Compact Style

• Specially full-expanded based on EFNOTE 5
• 5-piece shell and 5-piece cymbal set
• Dignified black oak-ish finish
• Player centric design

Playability and Musicality

• Redefines compact drums by the completed playability
• Pre-expanded for adapting to a variety of musical styles
• 360° flat sensing with multi-sensor technology

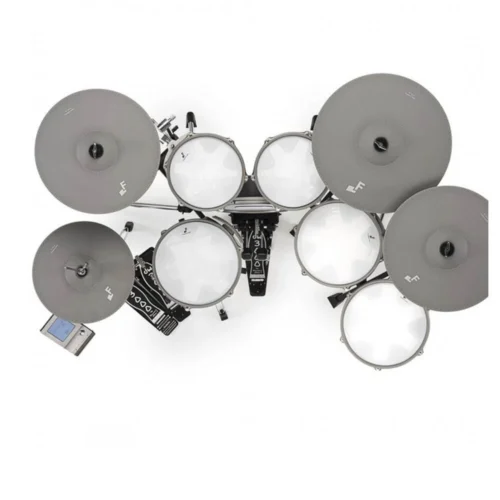

One more rack tom can be expanded from this picture.

Specializes in Acoustic

• Beautiful acoustic drum sounds
• 99% capacity is used for acoustic drum sound
• Includes rich ambient that reinforces the drum sound

7-Sensor Snare Drum

• 12 x 5″, 8 lugs, birch wood shell, 2ply mesh drum head
• Multi-sensor for hotspotless and high-resolution sounding
• High head tension tuning available

Independent Side-Rim

• Easy, intuitive and reliable
• No switch operation required
• Elegant arc design

16″ Kick, More Than the Size

• 16 x 12″, 8 lugs, birch wood shell, 2ply mesh drum head
• Comfortable feeling and stability over its size
• Stable multi-sensing for single/double beater(s)

Modern Two Floor Toms Style

• 12 x 12″, 8 lugs / 13 x 13″, 8 lugs
• Birch wood shells, 2ply mesh drum heads
• Multi-sensor for hotspotless and high-resolution sounding
• Low head tension tuning available

Finest Hi-Hat Cymbals

• 14″ top/bottom cymbals
• World’s first multi-optical sensing to capture the motions in 3D
• Tru-Motion™ technology for expressiveness leap
• 360° free-swinging top/bottom cymbal design

Full Size Cymbals

• 2x 16″ crash cymbal, 3-zone (Bow/Edge/Cup)
• 1x 18″ ride cymbal, 3-zone (Bow/Edge/Cup)
• Multi-sensored 360° play/choke area
• 360° free-swinging design
• Responsive thin edge

EFNOTE 5X does not support the Crash 2 cup when the Crash 3 is used.

Splash!

• 8″, 2-zone (Bow/Edge)
• Ultra thin and light weight design
• Multi-sensored 360° play/choke area
• 360° free-swinging design
• Responsive thin edge

Beautiful Cymbal Surface

• Elegant warm-gray surface with fine engravings
• Clean silicone rubber surface that is resistant to drumstick marks

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features
• Metal chassis and aluminum finish
• High quality DAC and audio circuit
• High power headphone amplifier
• Touch screen intuitive user interface

ELISE™ Sensing Processor

• Capturing drummer’s intentions from each stroke
• Low latency, wide dynamic-range, consistent and stable sensing
• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

Full-Scale Acoustic Sound

• Full stereo acoustic drum/cymbal samples recorded by EFNOTE
• Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
• Raw sound without resynthesis

For Training

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board drum recording function (15 tracks)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

Stroke Analyzer

• “Stroke Scope” displays your strike points on time-line
• “Accuracy Score” estimates your strike accuracy

Sound Edit

• Tuning, Muffling, 2-band EQs for each pad
• Pad layer function can overlay two sounds
• User Inst Library enables you to store 128 customized instruments
• On-board reverb
• Dedicated level control screen

Flexible Audio Routing

• 10-ch output buses
• Flexible output routing for each pad
• Output assignable click
• Output: 4-ch analog / 8-ch USB
• Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI
• EFNOTE Tools App for control remotely
