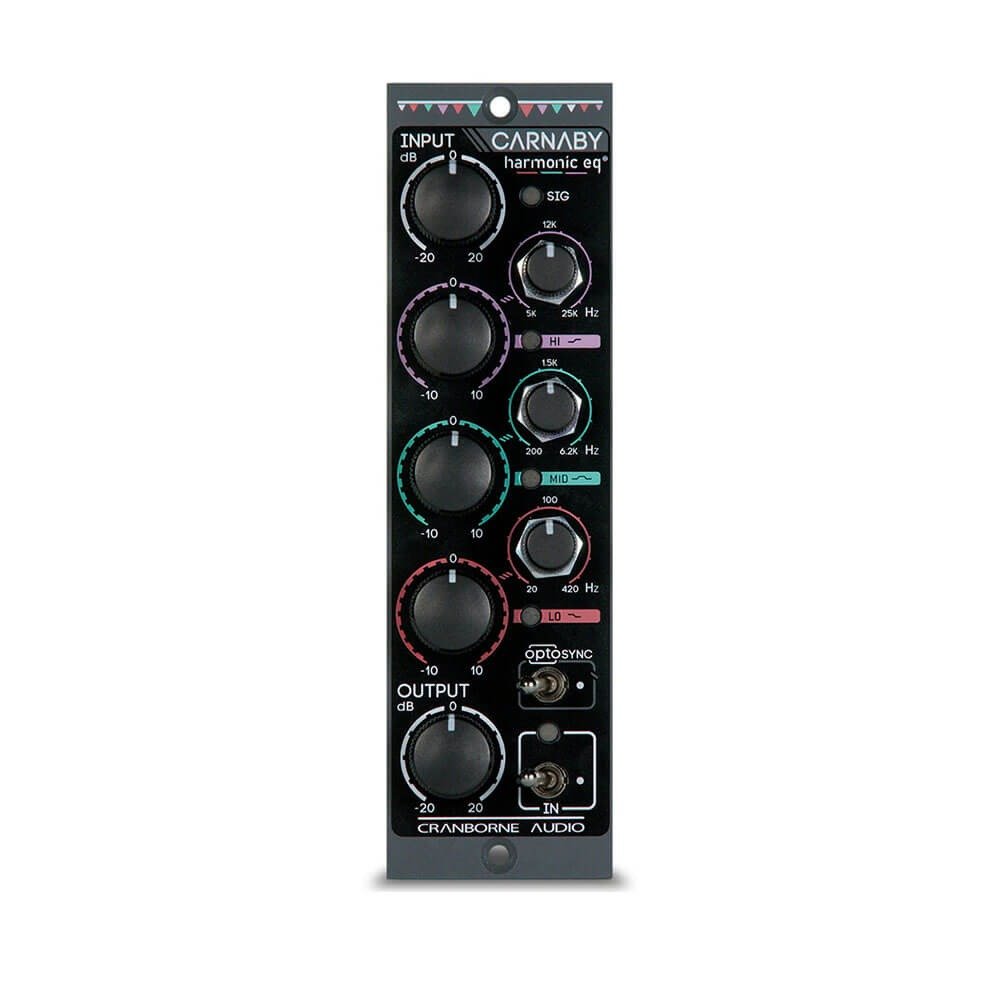

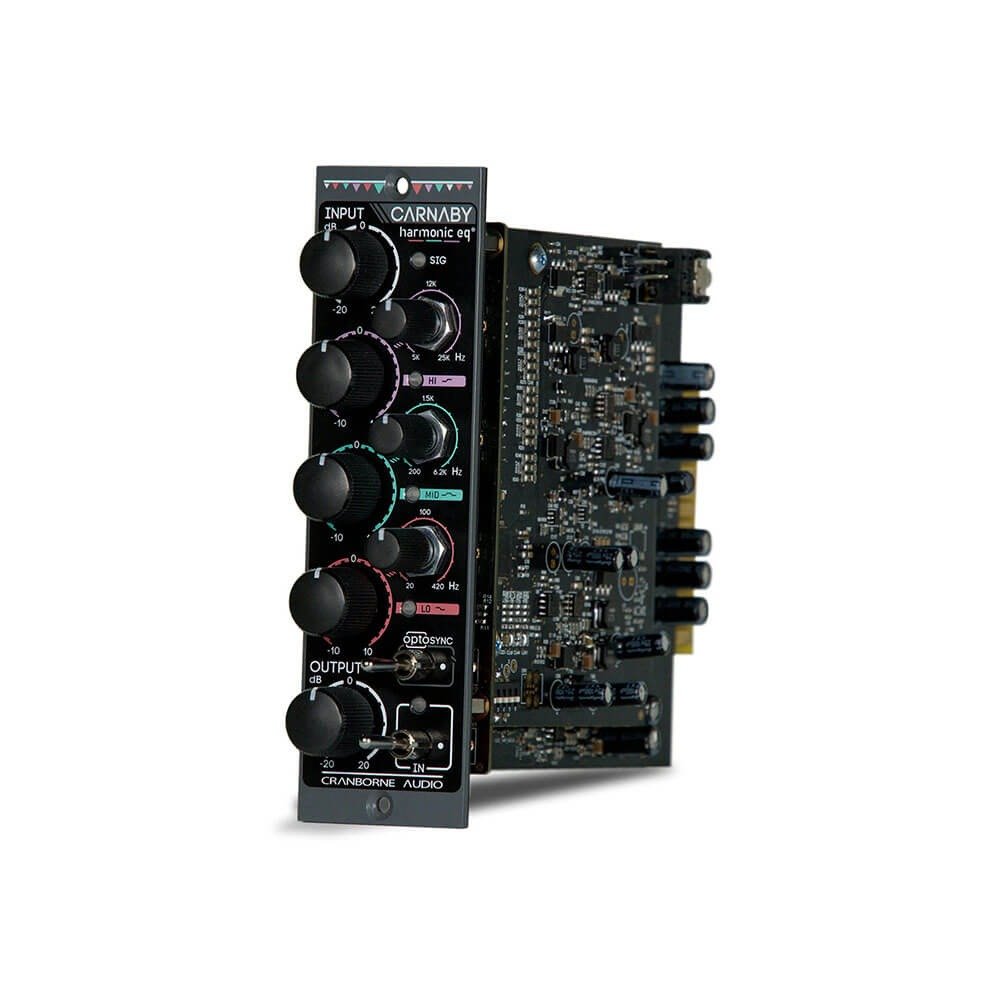

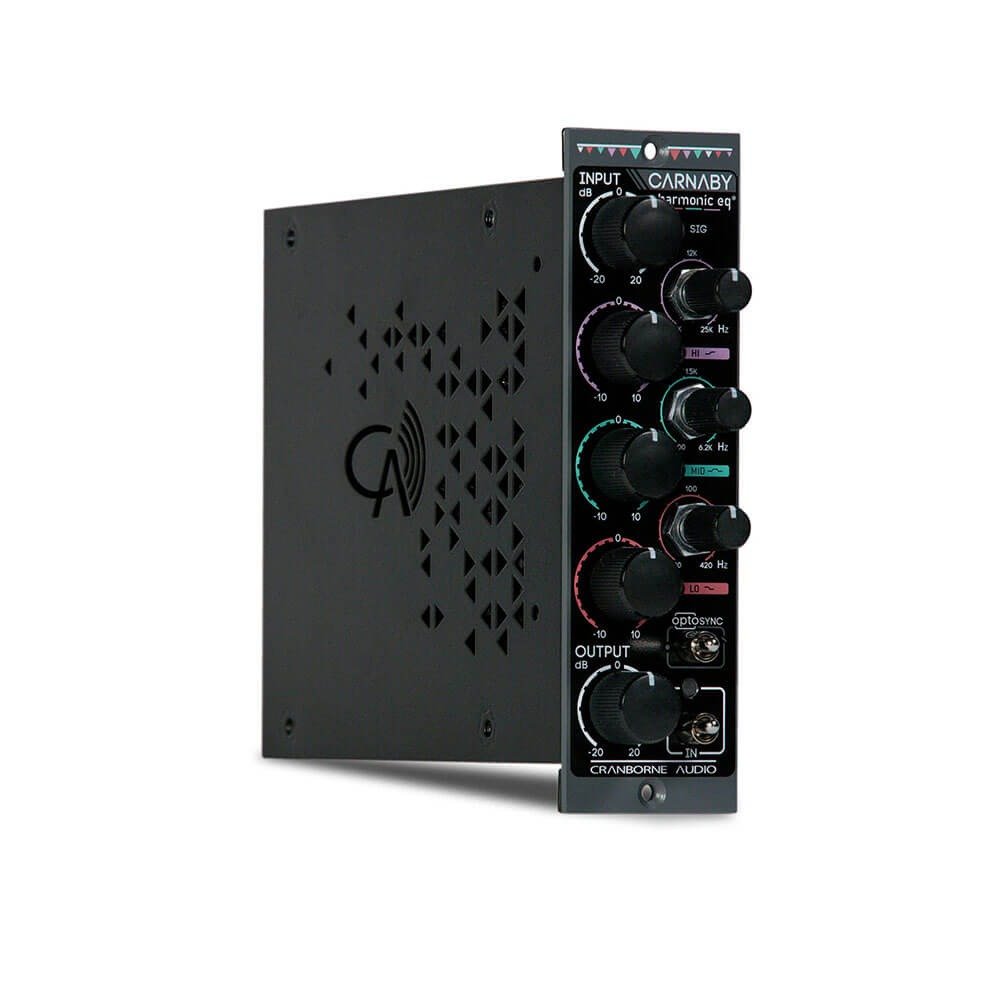

Cranborne Audio Carnaby 500 Series Harmonic EQ

The Cranborne Audio Carnaby 500 Equalizer is a unique 3-band parametric EQ designed for the 500 series format. It introduces a groundbreaking concept called “Harmonic EQ,” which utilizes harmonic saturation to boost and cut frequency content, providing a genuine analog harmonic saturation experience with the control of an equalizer. Here’s a detailed overview of its features:

Harmonic EQ Concept:

The Carnaby 500 is the world’s first Harmonic EQ, enhancing audio sources, stems, and mixes with analog harmonic saturation for a warm and musical sound.

3-Band Parametric EQ:

The EQ features three interactive bands, each with 10 dB of boost/cut and sweepable overlapping frequency controls.

HI Band: Covers a frequency range from 5kHz to 25kHz, adding smooth saturation to extend high frequencies for air and breath in vocals and acoustic instruments.

MID Band: A peaking filter with a fixed Q and a wide sweepable frequency range from 200 Hz to 6.2 kHz, using saturation to emphasize harmonics anywhere in the frequency range.

LO Band: With a frequency range of 420 Hz down to 20 Hz, it uses hard-clipping saturation to extend sub-harmonic frequencies into the audible low-end, suitable for subtle warming or extreme saturation.

Dynamic Response:

Unlike traditional EQs, Carnaby 500 exhibits a dynamic response, increasing total boost/cut and harmonics as you drive the circuits harder. Each band has input and output level controls with ±20 dB of adjustment, allowing for saturation and distortion effects or cleaner EQ.

Stereo-Link via OPTOSYNC:

Carnaby 500 offers an innovative stereo-linking feature called OPTOSYNC, allowing two units to work as a perfect stereo pair. OPTOSYNC synchronizes controls from the left unit to the right wirelessly using LED and optical communication. This can be used for stereo mixes or linking multiple units for broader applications.

Rugged Industrial Design:

The processor is designed with a robust and unique structural support system, custom 41-way detented pots on every control, and automatic calibration for all analog saturation paths, ensuring long-term reliability and performance.

CARNABY 500 Features:

• 3-band Harmonic EQ developed by Cranborne Audio.
• Parametric LO and HI shelving bands with ±10 dB cut/boost and harmonic saturation.
• Parametric peaking MID band with ±10 dB cut/boost, fixed Q, and harmonic saturation.
• LED indicators to display saturation level for each band.
• ±20 dB Input and Output Level controls.
• OptoSync wireless communication for linking controls between units.
• ⅛” TRS socket for linking non-adjacent modules.
• Circuit auto-calibration for precise stereo matching.
• True-bypass IN/OUT switching with complete or post-input trim modes.
• Stepped front-panel controls for quick recall and precision.

The Cranborne Audio Carnaby 500 Equalizer combines innovation, versatility, and analog warmth, making it a valuable tool for enhancing audio in professional studios.

The Cranborne Audio Carnaby 500 Series Harmonic EQ is designed for audio professionals and enthusiasts who demand precise tonal shaping combined with rich harmonic enhancement. In an industry where every nuance counts, this EQ module delivers not only surgical control over your sound but also injects the warmth and character that digital equalizers often lack. Whether you’re mixing, mastering, or tracking, the Carnaby empowers you to sculpt your audio with clarity and musicality, ensuring your sound stands out in any production.

Traditional EQs often focus solely on frequency adjustment, but the Carnaby goes beyond by integrating harmonic distortion into its design. This means you’re not just cutting or boosting frequencies—you’re adding subtle harmonic content that enriches and colors your sound in a way that feels natural and pleasing to the ear. The single-channel 500 series module offers three bands of EQ—low, mid, and high—each with a wide frequency range and variable Q, allowing you to target precise tonal areas with boosts or cuts of up to ±10 dB. This range provides the flexibility to perform everything from gentle tonal enhancements to more dramatic corrections without sacrificing audio fidelity.

The high band covers frequencies from 5 kHz up to 25 kHz, giving you control over air and sparkle, essential for adding clarity and brightness to vocals and instruments. The mid band spans 200 Hz to 6.2 kHz, a crucial range for shaping presence and definition in a mix, while the low band extends from 20 Hz to 420 Hz, allowing you to control the foundational warmth and punch. The variable Q control across these bands means you can adjust the bandwidth of your EQ curves, enabling either broad, smooth tonal shaping or sharp, surgical cuts that isolate specific problem frequencies.

User convenience and workflow efficiency are prioritized with straightforward controls for Input, Hi, Mid, Lo, and Output levels, making it easy to dial in your desired sound quickly. The inclusion of a bypass switch lets you instantly compare your processed and unprocessed signals, ensuring you make precise, informed adjustments without guessing. Its compact single-slot 500 series format measures 5.25 inches in height, 6.69 inches in depth, and 1.25 inches in width, weighing just 0.66 pounds, making it an ideal addition to any 500 series rack without taking up unnecessary space or adding bulk.

Practical applications for the Carnaby EQ are extensive. In tracking scenarios, it can add desirable harmonic richness to vocals and instruments, enhancing character before the sound hits your DAW. During mixing, its versatile EQ controls enable you to carve space for each element, ensuring clarity and balance in dense arrangements. Mastering engineers will appreciate its transparent frequency response from 20 Hz to 25 kHz, which preserves the integrity of the original mix while allowing precise tonal refinement. Its harmonic qualities also help glue mixes together by adding subtle warmth and cohesion.

In summary, the Cranborne Audio Carnaby 500 Series Harmonic EQ offers a unique blend of precise frequency control and harmonic enhancement in a compact, easy-to-use module. Priced at ₹57,950, this EQ is a wise investment for anyone seeking to elevate their audio productions with a tool that delivers both technical accuracy and musicality. With its robust build, flexible controls, and sonic versatility, the Carnaby stands as a dependable partner in any professional audio setup, ready to unlock new dimensions of sound quality and creativity.
