Hundreds of sonic refinements — instantly

The ToneMatch audio engine puts Bose’s largest library of customized presets at your command. These ToneMatch presets instantly optimize instruments at the touch of a button. Different presets can be independently assigned to each of the engine’s four channels. For example, select the exact mic presets for the microphones you’re using on channels 1 and 2, your guitar model for channel 3, and your bass model for channel 4 — all at the same time. Bose’s engineers often work with manufacturers directly to expand the ToneMatch preset library, and updates are available to you for free with easy downloading via the built-in USB port.

Intelligent EQ and effects

Fine-tune your sound system with greater accuracy using Bose’s intelligent zEQ system. It redefines low, mid, and high ranges for each ToneMatch preset. When you need to cut or boost specific frequency ranges for different instruments and mics, zEQ gives you the power. Globally assign one of five different reverbs to each mic/line channel. You can also choose from three delay types, 10 additional effects, and seven dynamics processors — and assign them independently to each channel.

Easy livestreaming

Additionally, the Bose T8S’s built-in USB output allows you to stream your audio directly to social media platforms such as Facebook and Instagram. Connect the T4 to your Mac or PC, and you will have access to studio-quality preamps, phantom power, and effects. Finally, the 6-band master EQ helps compensate for the ambient acoustics around you.

Bose T4S and T8S: which mixer is right for me?

The biggest differences between these mixers are the number of onboard channels and how they interface with your sound system. If you have further questions, don’t hesitate to contact your Sweetwater Sales Engineer.

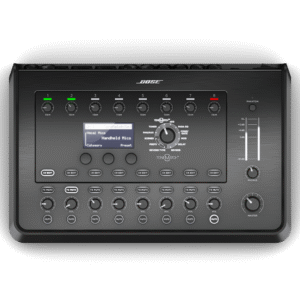

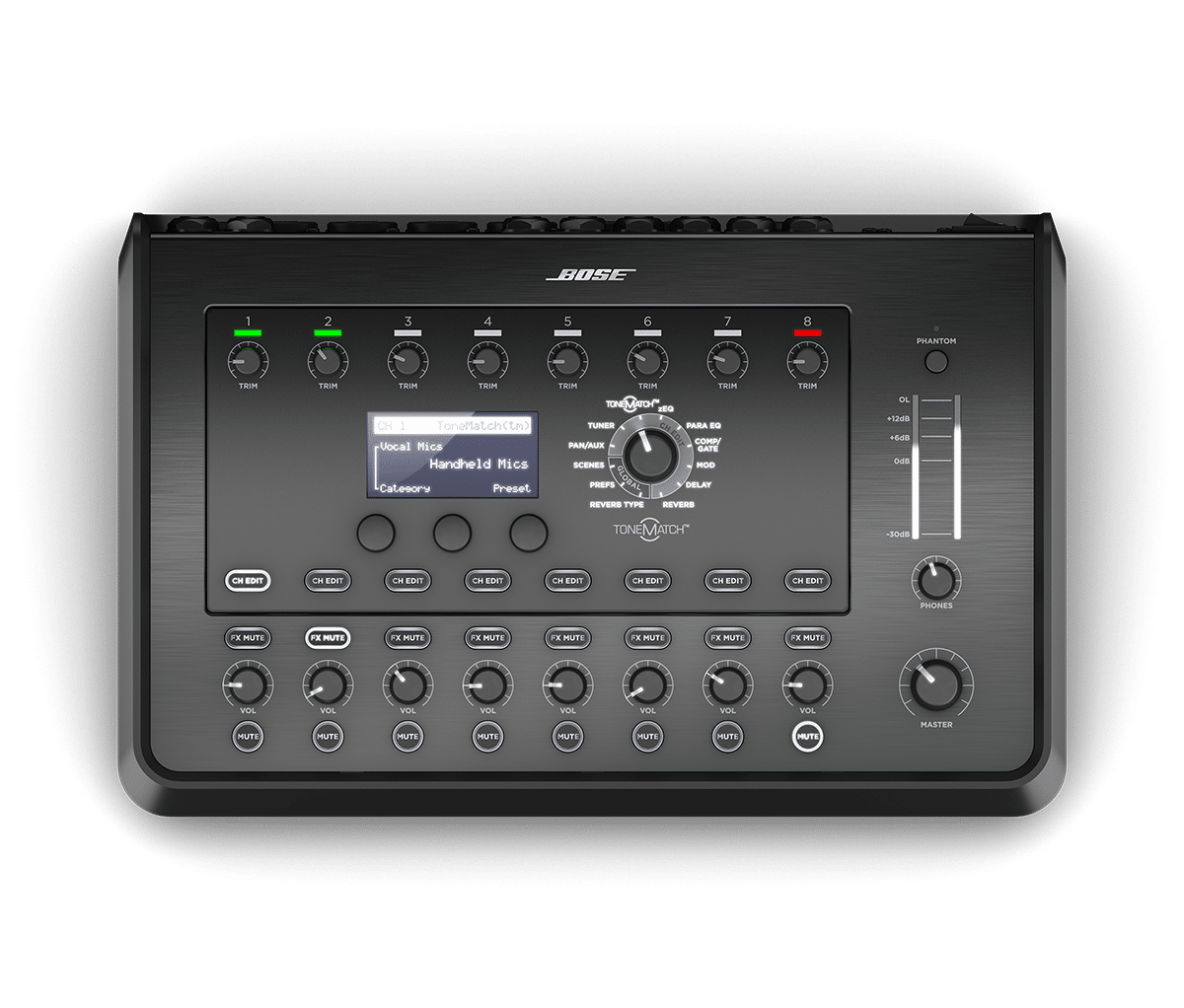

T8S:

• 8 channels with combi mic/line inputs and phantom power
• XLR balanced outputs — for Bose F1 speaker systems, etc.
• 1/4″ aux outs (x4), 1/4″ aux ins (x2), 1/4″ stereo main outs
• Wall power supply included. The T8S can also be powered by a single L1 Pro unit with the purchase of a separate ToneMatch cable

Features

• Powerful Audio Processing:

  Updated, studio-quality effects with advanced digital audio processing

  High-quality effects include compressor, limiter, de-esser, noise gate, chorus, flanger, phaser, tremolo, delay and reverb

  Bose ToneMatch processing for natural-sounding vocals and instruments

  zEQ focuses the sound of ToneMatch presets for effective adjustments on the fly

  Independent ToneMatch, EQ, dynamics and effects per channel

  Dedicated reverb on Aux 1 send, and a global shared reverb for use across all channels

  Master output EQ helps compensate for venue acoustics

  Full end-to-end tonal optimization when used with Bose L1 and F1 systems

• Seamless Live Control:

  Tactile controls and indicators designed for live, on-stage use

  Fast-learning user interface

  Built-in tap tempo delay, chromatic tuner, and recallable scenes

  LED display and illuminated controls are easy to read and use, even on dimly-lit stages

• High-Density Connectivity:

  Unprecedented connectivity and control in a small digital stereo mixer

  Four high-quality audio preamps with XLR-combo jacks for microphones or instruments, and switchable phantom power

  Two ToneMatch outputs for digital audio and power

  Two Aux sends, and Two Aux inputs for additional sources

  USB-A and -B for USB drive playback or PC/Mac interfacing

  Independent headphone and balanced 1/4-inch; TRS stereo outputs

• Convenient Gig-Ready Features:

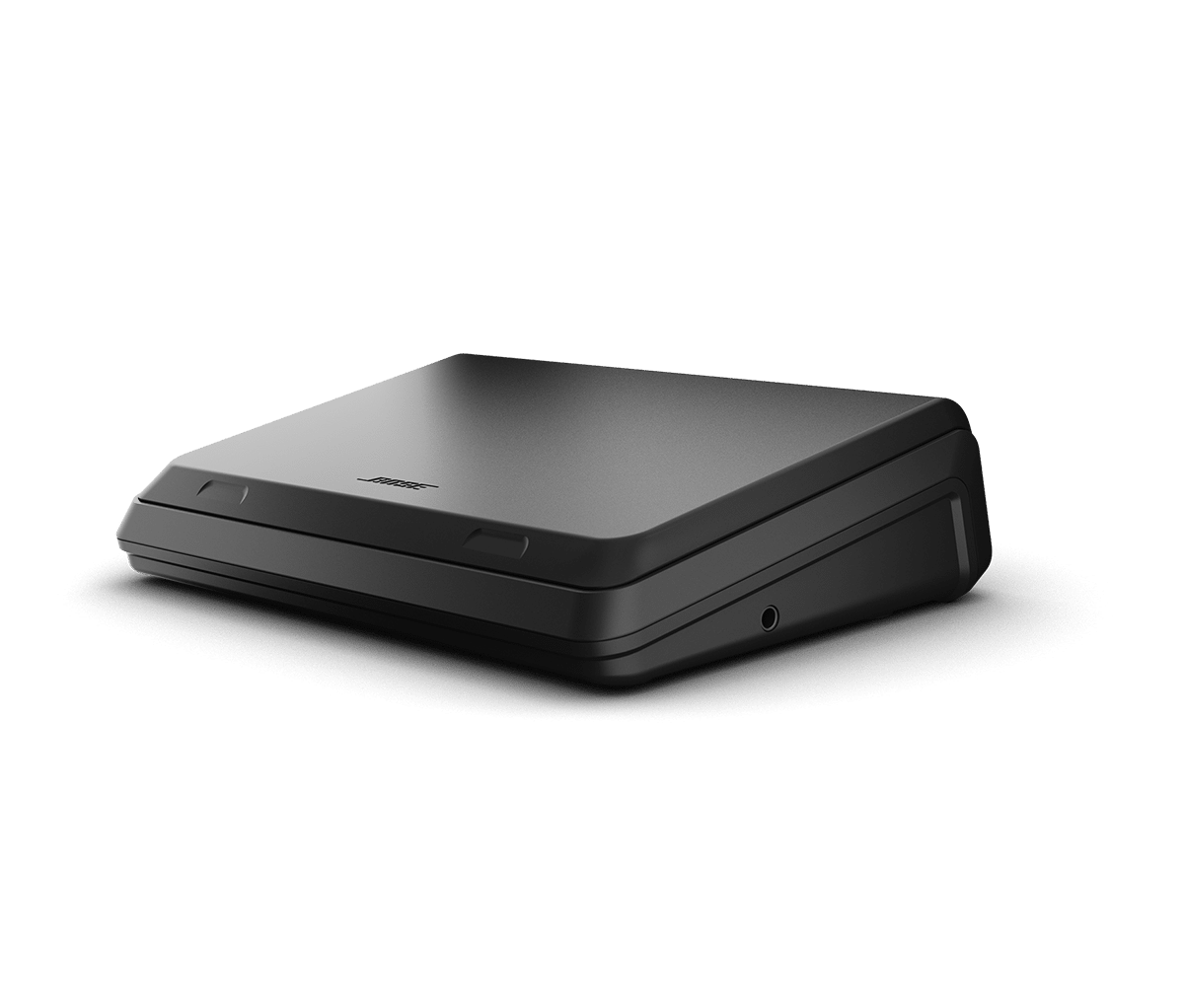

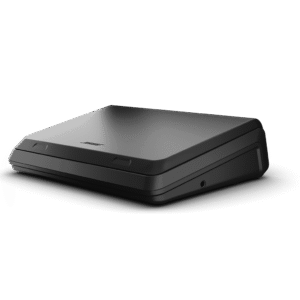

  Rugged enclosure with a protective magnetic cover to protect controls and connectors

  Includes a ToneMatch cable for connecting to a Bose L1 PRO system for digital audio and power

  Bottom insert allows you to use standard mounting accessories to keep your T8S within reach

Applications

Designed for a wide range of applications, including:

• Corporate AV
• General purpose PA
• Live streaming
• Mobile DJs
• Singer/songwriters

Specifications

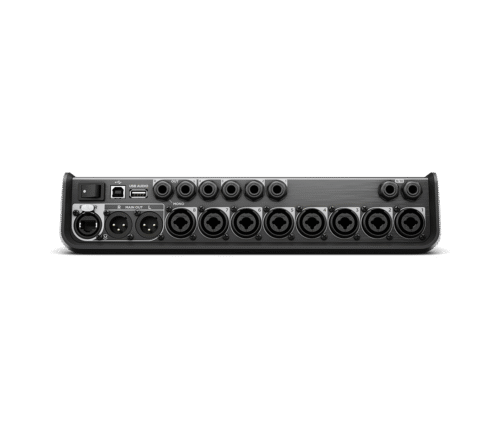

AUDIO INPUTS, ANALOG

• Input Channels

• 8 XLR combo jacks, 8 TRS 1/4-in jacks

• Phantom Power

• 48 VDC, all channels

AUDIO OUTPUTS, ANALOG

• Channels

• 8 (2 XLR + 6 balanced, line)

GENERAL

• Computer Interface Connection

• USB Type-B

INDICATORS AND CONTROLS

• Display

• OLED

INTEGRATED DSP

• Equalization

• 3-band EQ

• DSP-Enabled

• Yes

• Presets

• Bose factory presets, user presets

• Sample Rate / Bit Depth

• 48 kHz / 24-bit

PHYSICAL

• Colors

• Black

• Product Dimensions (H×W×D)

• 8.4 in × 12.3 in × 3.3 in (214 mm × 311 mm × 83 mm)

• Net Weight

• 4.1 lb (1.9 kg)

Product codes

• 785491-0110

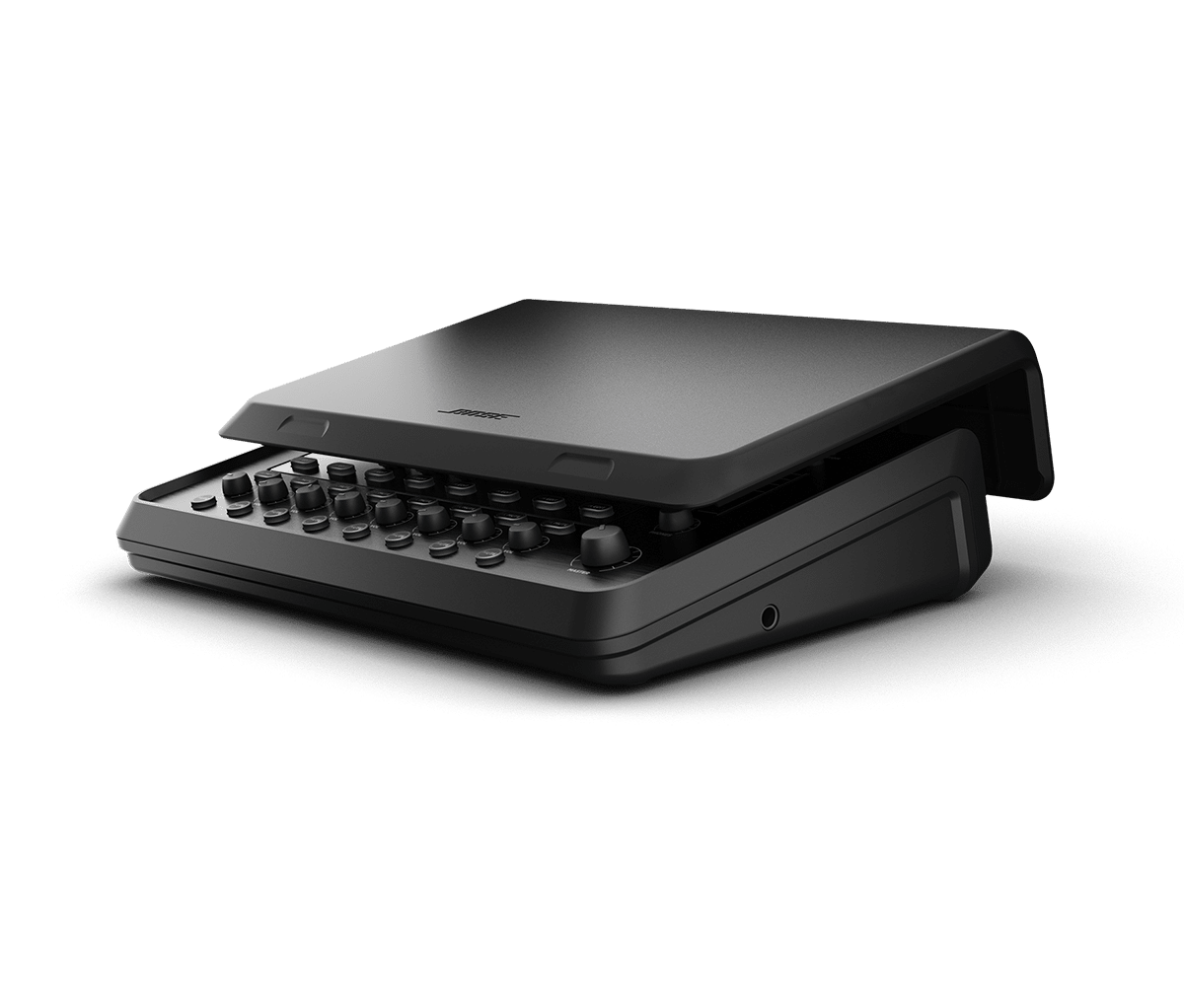

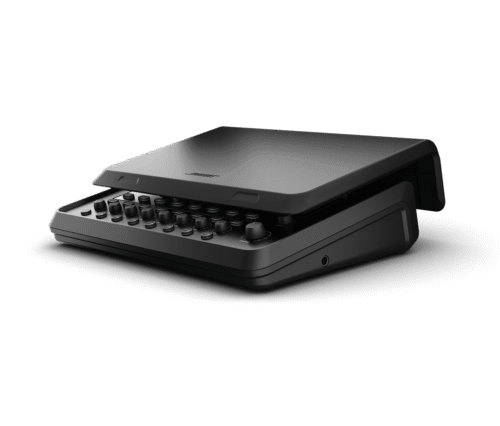

• T8S TONEMATCH MIXER
