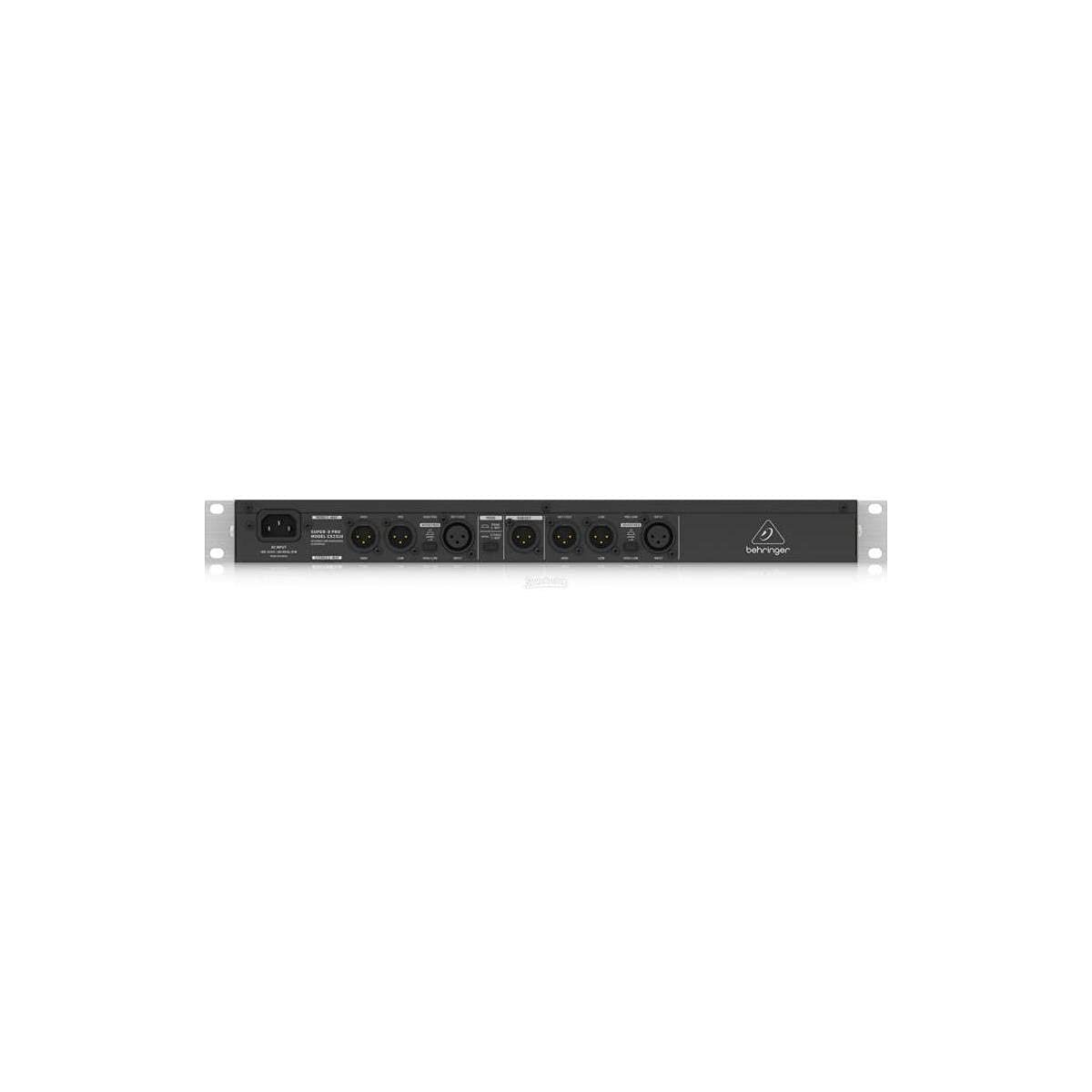

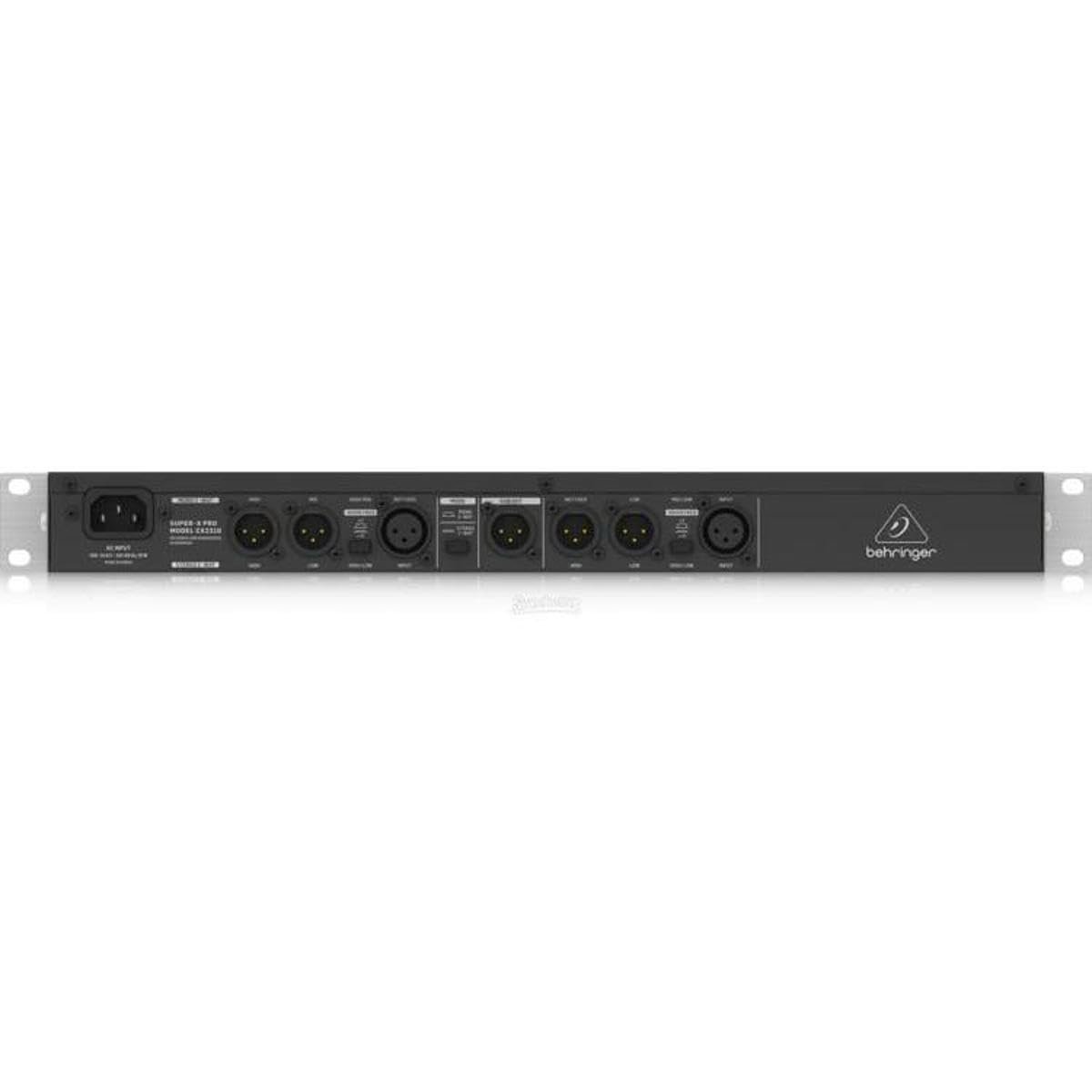

When a sound system is properly tuned, it becomes powerful, balanced and efficient. Bass content is punchy and tight, with vocals and instruments that are rich, crisp and well defined. The CX2310 crossover’s accurate signal processing protects critical loudspeaker components and improves overall system efficiency. All Input and Output connections are balanced/unbalanced XLR and feature 25 Hz Low Cut filters for low-frequency driver protection – plus Mute and Phase Invert switches, making troubleshooting even a large system – virtually effortless!
Loudspeakers (which we call transducers) convert electrical signals into sound waves. And no matter how well a transducer is designed or made, it simply cannot reproduce the entire audio spectrum all by itself. Low-frequency sounds tend to push a transducer to the maximum, making it impossible for that same transducer to reproduce the treble content with the sound quality it deserves. (Try singing high falsetto next time you’re bench-pressing your limit!)
That’s why high-quality sound systems use multiple speakers (woofers and tweeters) to spread out the work. While the woofer (usually the larger transducer) does all the heavy lifting, the tweeter can easily handle the high-frequency content. Three and four-way systems distribute the work even more, allowing the individual transducers to reproduce the frequency range for which they were designed. It is the crossover’s function to divide these tasks between the various amplifiers and transducers.

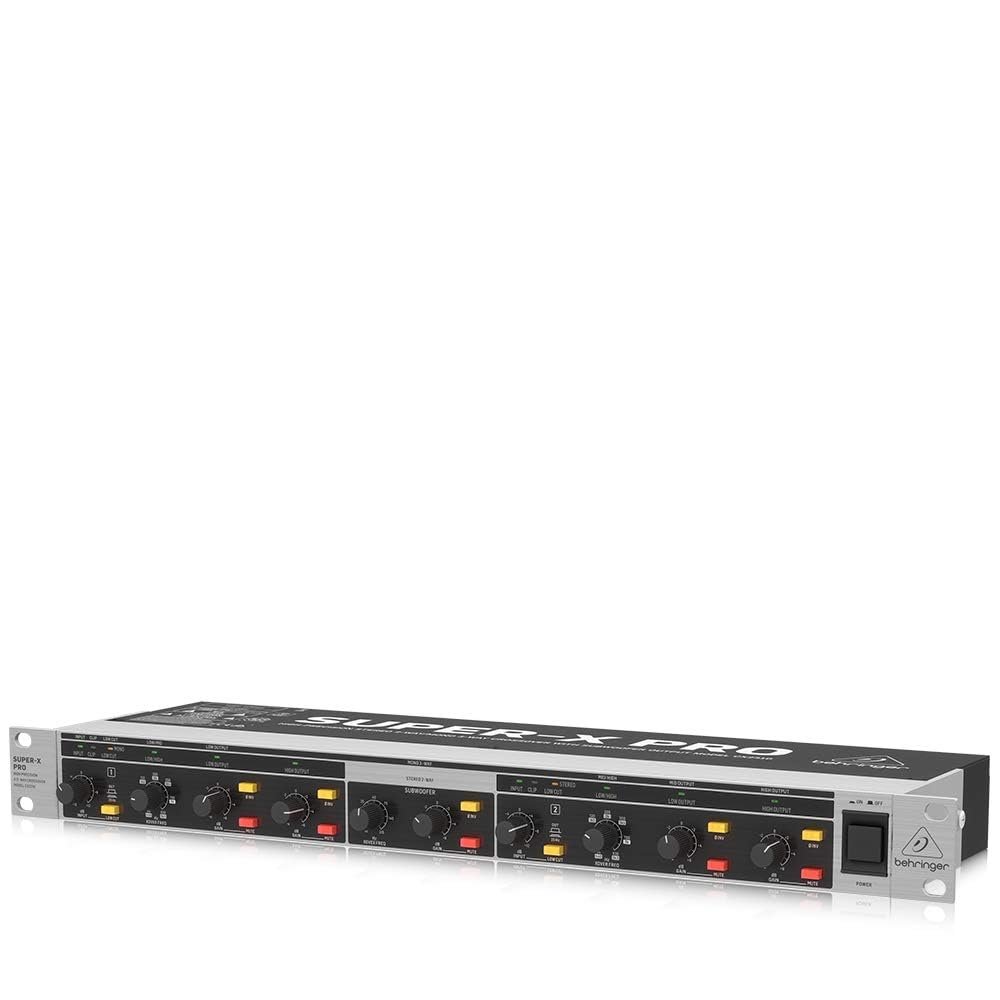

The CX2310 provides two modes of operation: 2-way stereo, for Left and Right Lows (woofers) and Highs (tweeters); and 3-way mono, for Lows, Mids and Highs. In either mode, there is an additional output provided for a mono Subwoofer, with its own Frequency and Level controls. This extra feature effectively turns the CX2310 into a stereo 2-way + mono 1-way, or a mono 4-way frequency crossover. The Subwoofer Output is presented in mono, since people perceive extremely-low bass frequencies as being omnidirectional. For your convenience, the CX2310’s front panel features an elegant and easy-to-read LED matrix, so you can see at a glance which operating mode has been selected – and which controls are currently active.
The high-precision CX2310 is the super-effective and affordable way to optimize the performance of your sound system – and protect your valuable loudspeaker investment at the same time! Stop by your authorized BEHRINGER dealer, or get your SUPER-X PRO CX2310 online today!
| Weight | 1.6 kg |
|---|---|
| Dimensions | 48.31 × 14.71 × 4.39 cm |
| Product Dimensions | 48.31 x 14.71 x 4.39 cm; 1.6 kg |
| Item model number | CX2310 |
| Hardware Interface | 1/4-inch Audio |
| Signal Format | Analog |
| Voltage | 9 Volts |
| Item Weight | 1 kg 600 g |
| Imported By | Alphatec Audio Video Pvt Ltd |
| ASIN | B07J37C68Z |
| Date First Available | 22 October 2018 |
| Packer | Alphatec Audio Video Pvt. Ltd. |
| Importer | Alphatec Audio Video Pvt. Ltd. |
| Item Dimensions LxWxH | 48.3 x 14.7 x 4.4 Centimeters |
| Net Quantity | 1 Unit |
| Included Components | 1 Behringer CX2310 V2 Multi Effect Processor, High-Precision Stereo 2-Way/Mono 3-Way Crossover with Subwoofer Output |
| Generic Name | Effects & Signal Processors |
| Manufacturer | Music group commercial BM LTD, Music group commercial BM LTD, Alphatec Audio Video Pvt Ltd |
