Arturia AudioFuse X8 Out 8-Channel Output Expander

For audio professionals and enthusiasts seeking to expand their output capabilities without compromising sound quality, the Arturia Audio Fuse X8 Out 8-Channel Output Expander offers an ideal solution. Designed to seamlessly integrate with existing ADAT-equipped interfaces, this desktop device provides eight additional high-quality balanced line outputs, enabling you to route your mix or stems to external processors, monitors, or modular setups with precision and clarity. Whether you are managing complex live sound arrangements or enhancing your studio’s flexibility, the Audio Fuse X8 Out ensures your workflow remains smooth and efficient.

One of the key advantages of the Audio Fuse X8 Out is its use of 24-bit/96 kHz digital-to-analog conversion across all eight channels. This level of resolution means that every nuance of your digital audio is faithfully reproduced with exceptional clarity and dynamic range, reaching an impressive 120.5 dBA. For the user, this translates into professional-grade audio fidelity that preserves the integrity of your sound sources, whether mixing, mastering, or performing live. The low total harmonic distortion plus noise (THD+N) rating of -106 dB further guarantees that your outputs remain clean, without unwanted coloration or distortion that can degrade audio quality.

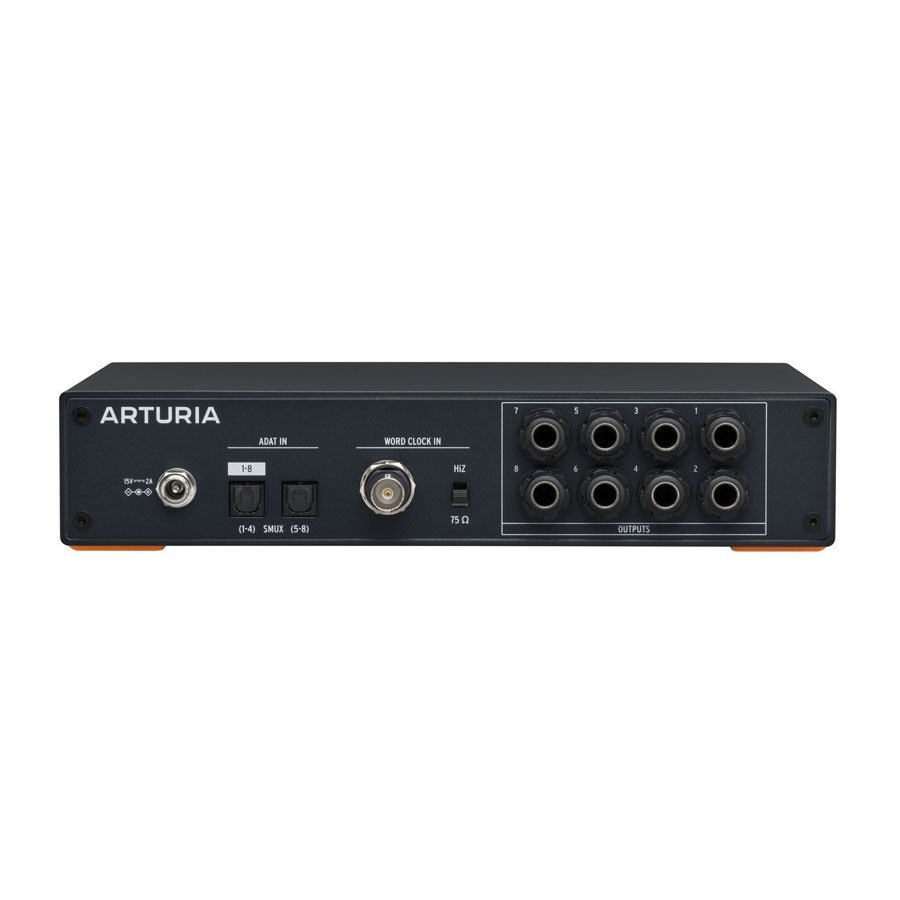

This expander is engineered to connect via ADAT optical inputs, supporting the S/MUX format to handle high sample rates efficiently. This means that if you are working at 96 kHz, the device will combine two ADAT channels per output to maintain pristine quality without sacrificing channel count. With two mini-TOSLINK/3.5 mm optical inputs, integration into your existing setup is straightforward, allowing you to extend your system’s output capacity without adding complexity or latency. Additionally, the inclusion of a BNC clock input enables precise synchronization with external word clock sources, ensuring tight timing and phase coherence across all connected devices—a critical factor when dealing with multi-channel audio environments.

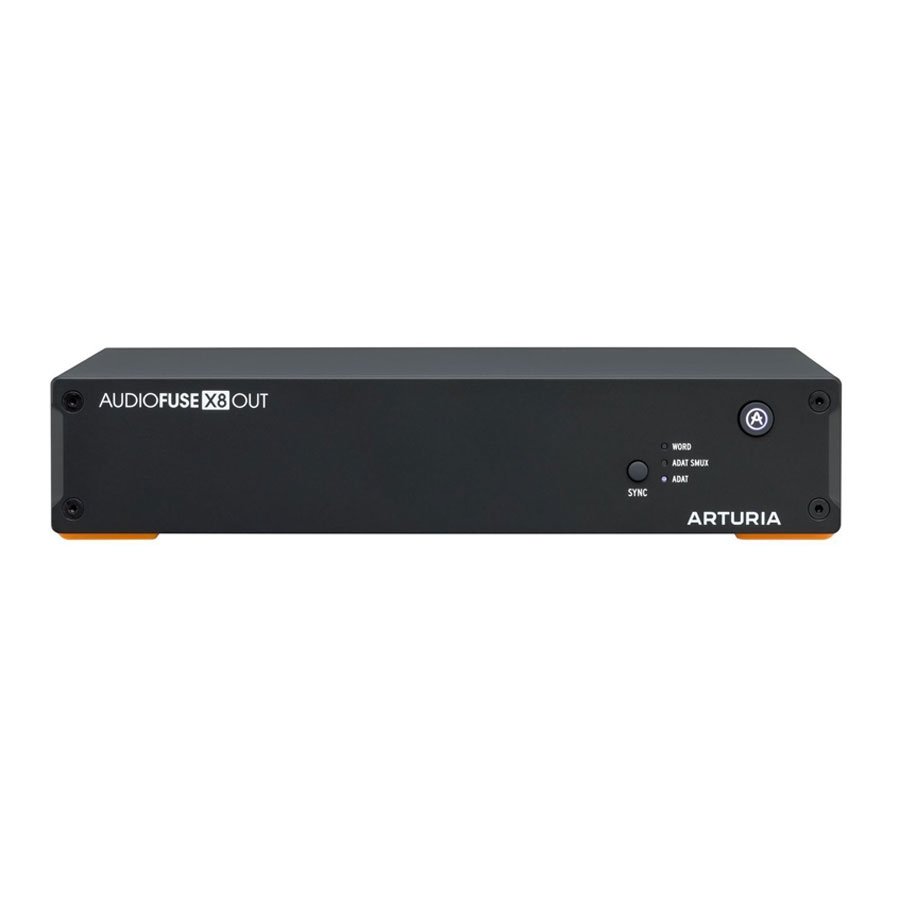

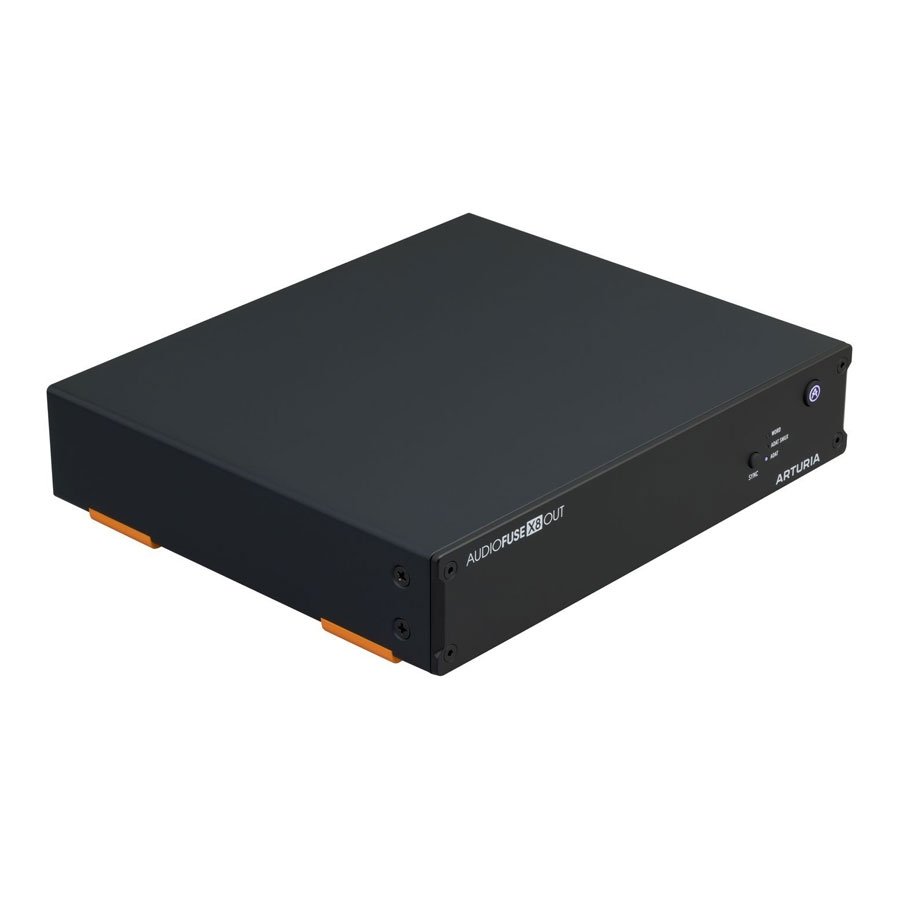

Physically, the Audio Fuse X8 Out features a compact desktop form factor but also comes with rack-mounting hardware, offering flexible installation options to suit your studio or live rig setup. The eight balanced 1/4-inch TRS line outputs each deliver a maximum output level of +24 dBu, accommodating professional line-level gear without the need for additional gain staging. The balanced output impedance of 240 ohms ensures compatibility with a wide range of equipment while minimizing noise interference. Its frequency response spans the full audible range from 20 Hz to 20 kHz with minimal variance, ensuring accurate and transparent sound reproduction across all channels.

Use cases for the Audio Fuse X8 Out are diverse. In a recording studio, it can expand the number of outputs available for headphone mixes, outboard effects, or multiple monitor systems. Live sound engineers will appreciate its ability to send separate mixes to different zones or monitor wedges with clarity and reliability. For electronic musicians and producers working with modular synths or external processors, the balanced outputs provide clean signals ready to be integrated into complex signal chains. The lack of microphone inputs or direct host connection means this device excels as a dedicated output solution, complementing your existing interface rather than replacing it.

In summary, the Arturia Audio Fuse X8 Out 8-Channel Output Expander is a professional-grade device designed to enhance your audio setup by providing high-quality, multi-channel analog outputs with precise digital-to-analog conversion and reliable synchronization options. Its combination of robust build quality, versatile connectivity, and pristine sound performance makes it a valuable investment for anyone looking to expand their output capabilities without compromise. Backed by Arturia’s reputation for innovation and quality, this expander ensures your audio signals maintain their integrity from digital source to analog destination, empowering you to deliver your best sound every time.
