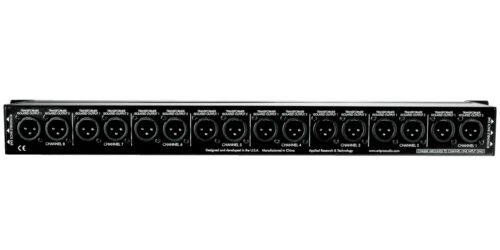

ART Pro Audio S8-3Way 8-Channel 3-Way Mic Splitter

Name: ART Pro Audio S8-3Way 8-Channel 3-Way Mic Splitter - suhavimart.com
Price: 39419.00 INR
Availability: InStock

Seen It For Less?

₹39,419.00

2 in stock

Estimated delivery dates: Jul 6, 2026 - Jul 10, 2026

Why Suhavimart is different?

Guaranteed Safe Checkout

Category: Patchbay And Splitters Brand: ART

Brand

ART

Input Impedance

> 1.1 kΩ @ 1 kHz Typical Driving Source Impedance is 150Ω

Output Impedance

< 255Ω @ 1 kHz 1 kΩ Typical Output Load Impedance

Frequency Response

20 Hz - 20 kHz (+/- 0.25 dB @ -15 dBu)

THD

< 0.26% (20 Hz - 20 kHz, -15 dBu Input) < 0.1% (45 Hz - 20 kHz, -15 dBu Input) 0.002% Typical @ 1 kHz (-15 dBu Input)

CMRR

> 105 dB @ 60 Hz > 80 dB @ 3 kHz

Phase Shift

<10° @ 20 kHz (Reference 1 kHz)

Insertion Loss

~2 dB @ 1 kHz

Dimensions (DWH)

3.75" x 19" x 1.75" 95 mm x 483 mm x 44 mm

Weight

3.75 lbs / 1.7 kg

Our expertly trained sales engineers are ready to help!

📞 +91 8368252534 | 💬 WhatsApp

S8-3Way

8-Channel 3-Way Mic Splitter

The S8-3Way lets your mic signals be in three places at once.

It’s an 8-channel splitter in a 1U rackmount enclosure with one direct output and two transformer-isolated outputs per channel. The passive design doesn’t require power, but the direct outputs will pass phantom power for use with active microphones.

When three outputs are better than one, the S8-3Way is ideal for sending signals to multiple destinations, such as front-of-house, monitor, and broadcast or recording mixers.

Need switchable input pads and ground lifts per channel? Check out the S8.

Features

8-Channel 3-Way Splitter
Balanced XLR Connections
1x Direct and 2x Transformer-Isolated Outputs per Channel
Direct Outputs Pass Phantom Power
Passive Design – No Power Required
1U Rackmount
Reversible Rack Ears

Brand	ART
Input Impedance	> 1.1 kΩ @ 1 kHz Typical Driving Source Impedance is 150Ω
Output Impedance	< 255Ω @ 1 kHz 1 kΩ Typical Output Load Impedance
Frequency Response	20 Hz – 20 kHz (+/- 0.25 dB @ -15 dBu)
THD	< 0.26% (20 Hz – 20 kHz, -15 dBu Input) < 0.1% (45 Hz – 20 kHz, -15 dBu Input) 0.002% Typical @ 1 kHz (-15 dBu Input)
CMRR	> 105 dB @ 60 Hz > 80 dB @ 3 kHz
Phase Shift	<10° @ 20 kHz (Reference 1 kHz)
Insertion Loss	~2 dB @ 1 kHz
Dimensions (DWH)	3.75" x 19" x 1.75" 95 mm x 483 mm x 44 mm
Weight	3.75 lbs / 1.7 kg
