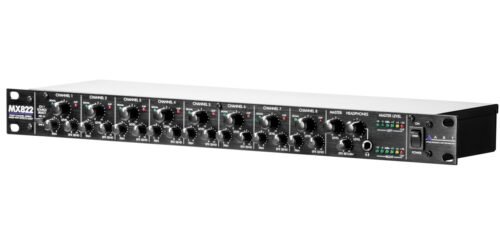

The MX822 is an eight-channel stereo mixer with an effects loop, and the most fully-featured rackmount line mixer from ART.

Each channel has dual 1/4” unbalanced inputs for mono or stereo sources, and channel 1 also has a microphone input with a balanced XLR connection and switchable phantom power.

All channels have signal and clipping indicators, as well as controls for level, pan, and EFX send. The master section has controls for the main and headphone output levels, as well as the EFX return and LED metering.

The main outputs use balanced XLR connectors, and multiple units can be chained together using the Main Expand and EFX Buss Link jacks.

Versatile, expandable, and with a fully stereo signal path, the MX822 is a powerful mixing solution for studio and stage use.

Features

• Eight stereo/mono input channels with individual level, pan and effects send controls
• External effects loop with independent send and return controls
• Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for output monitoring
• Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
• Switchable low noise +48V phantom power for microphone input
• Separate green and red LED signal and clip indicators for each input channel
• Six level left and right main output metering including clip indicators
• Balanced left and right XLR main outputs
• Multiple units may be chained together for additional inputs
• Rugged 1U rack mount steel case
