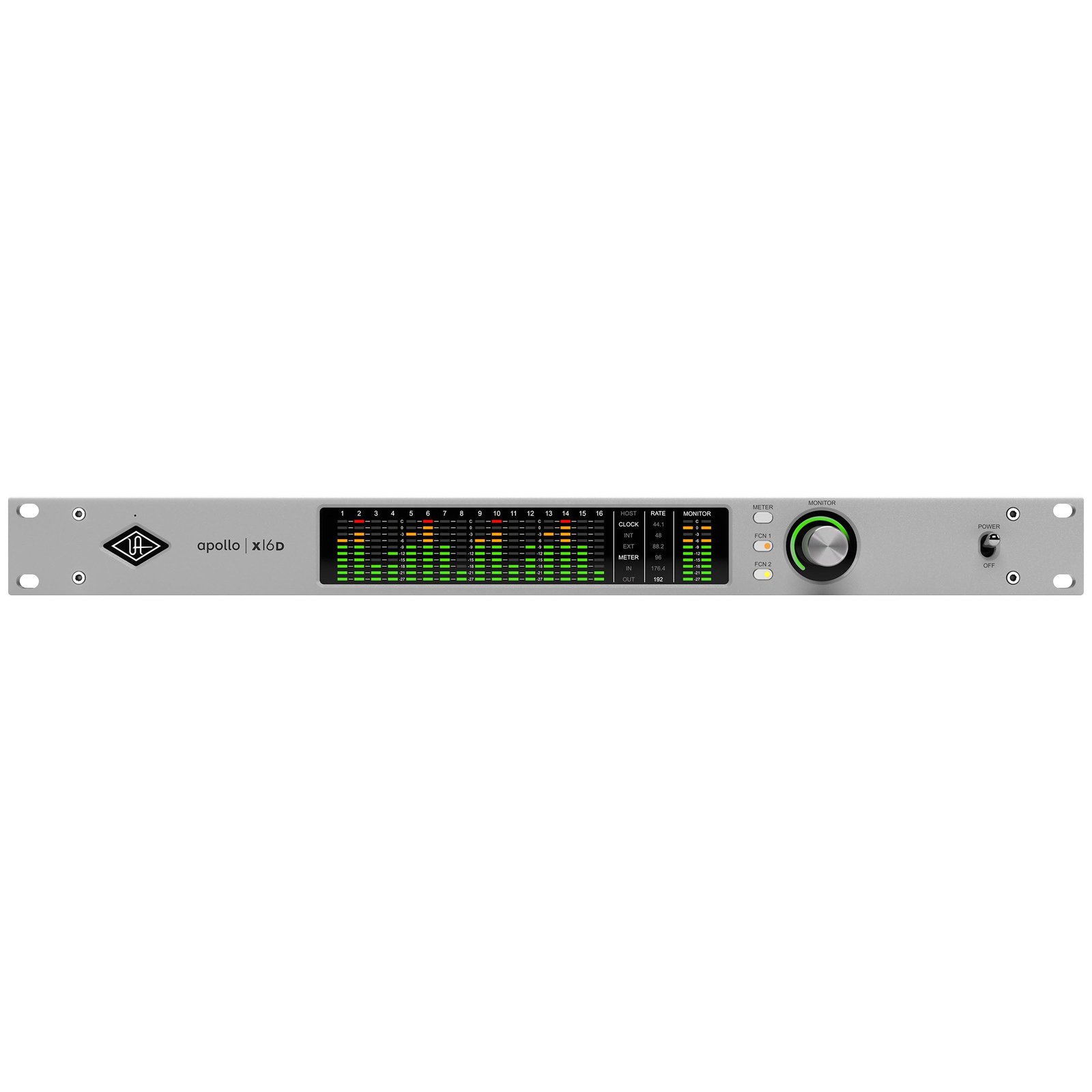

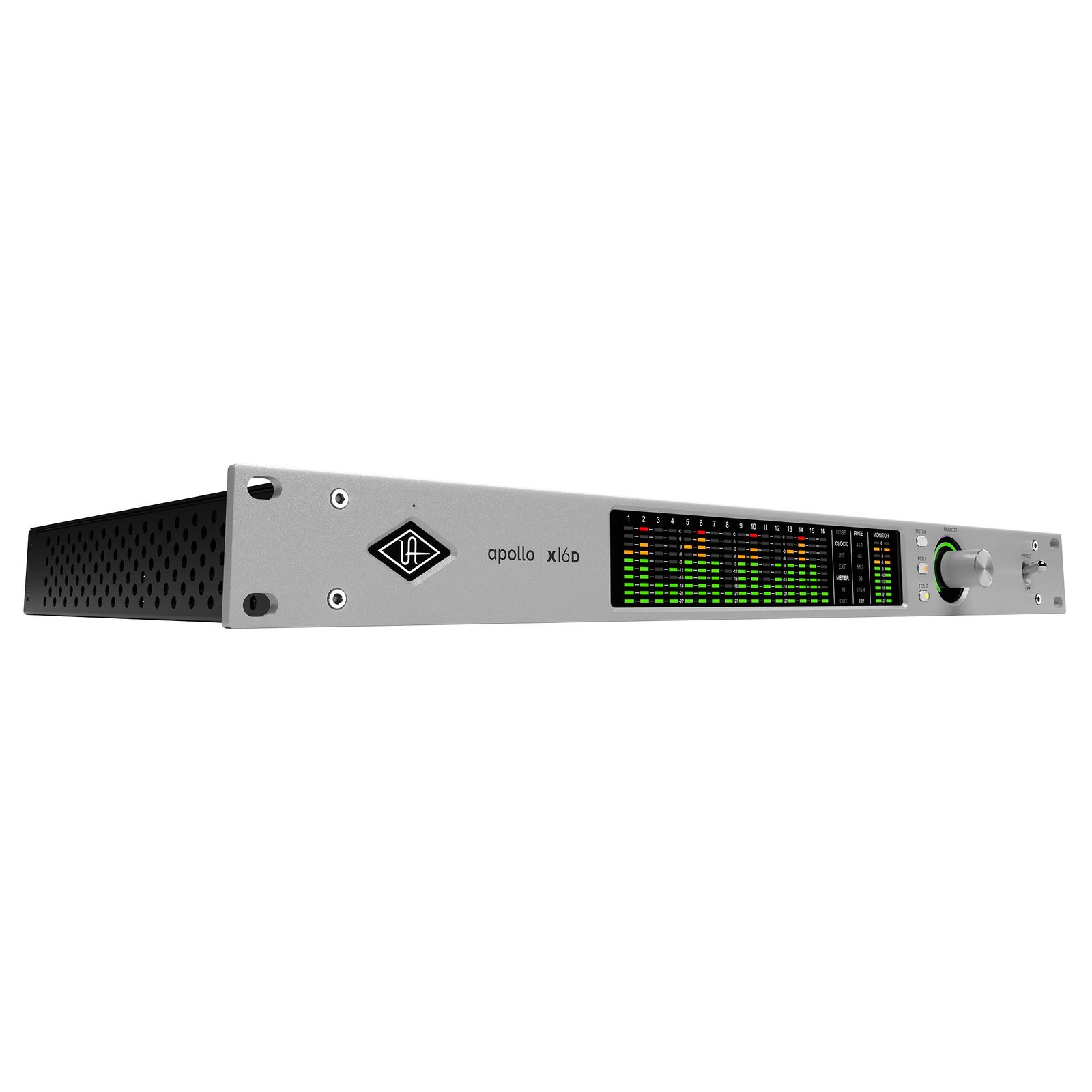

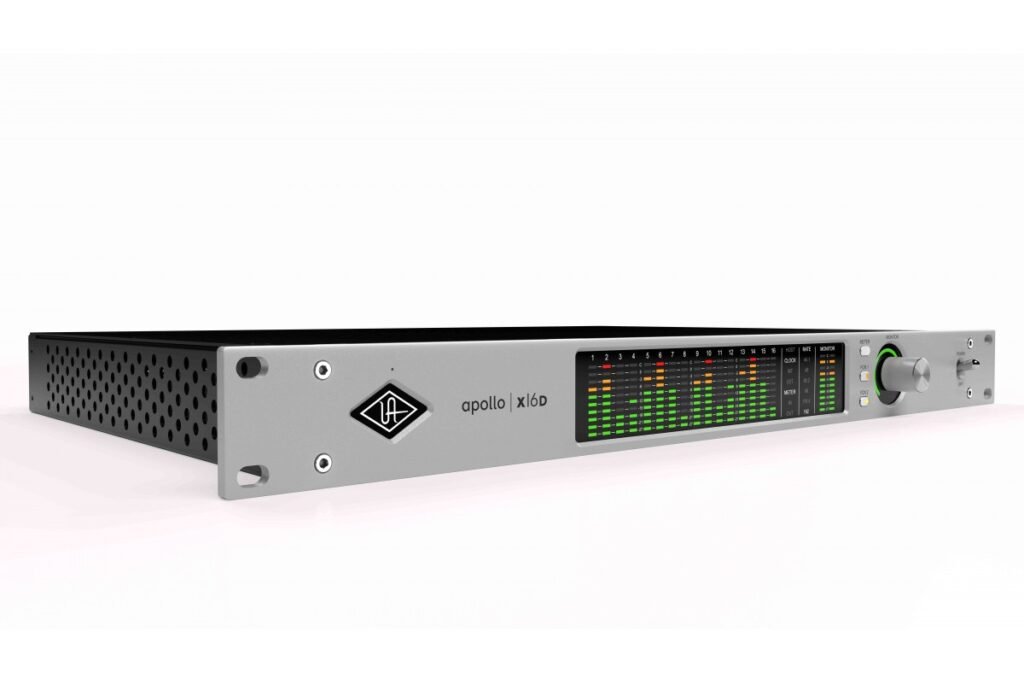

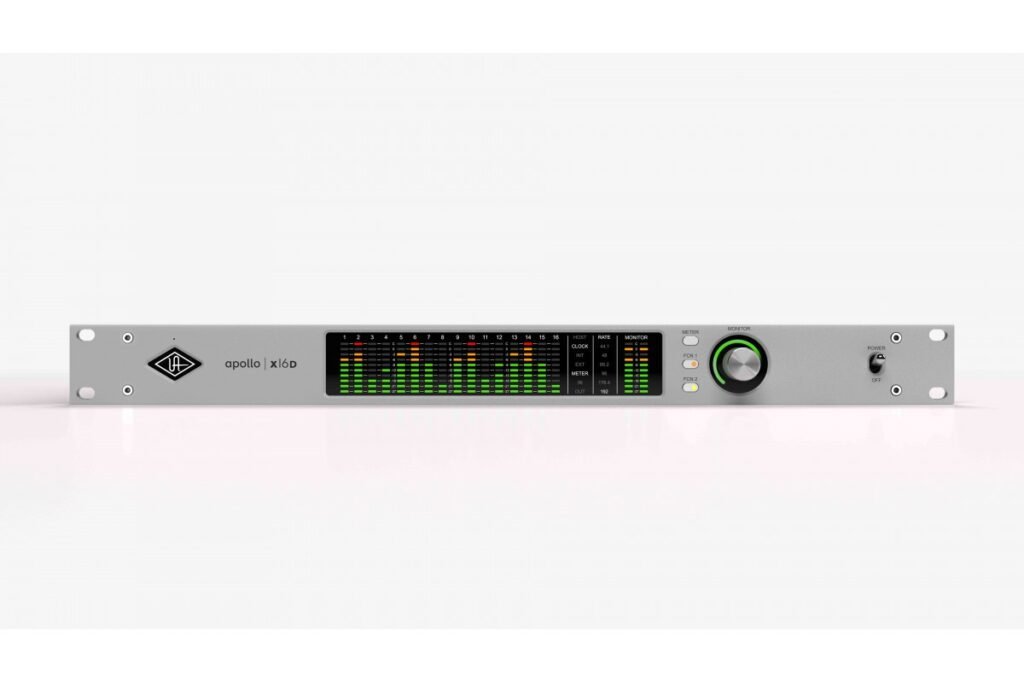

Main features of the Universal Audio Apollo x16D include:

18 x 20 audio interface featuring Dante I/O (supports AES67 mode @ 48 kHz)
Onboard HEXA Core Processing for mixing with UAD plug-ins at near-zero latency
Recall plug-in settings over MIDI, even in the middle of a performance
Two RJ45 Ethernet Dante® connections for switched or redundant network modes

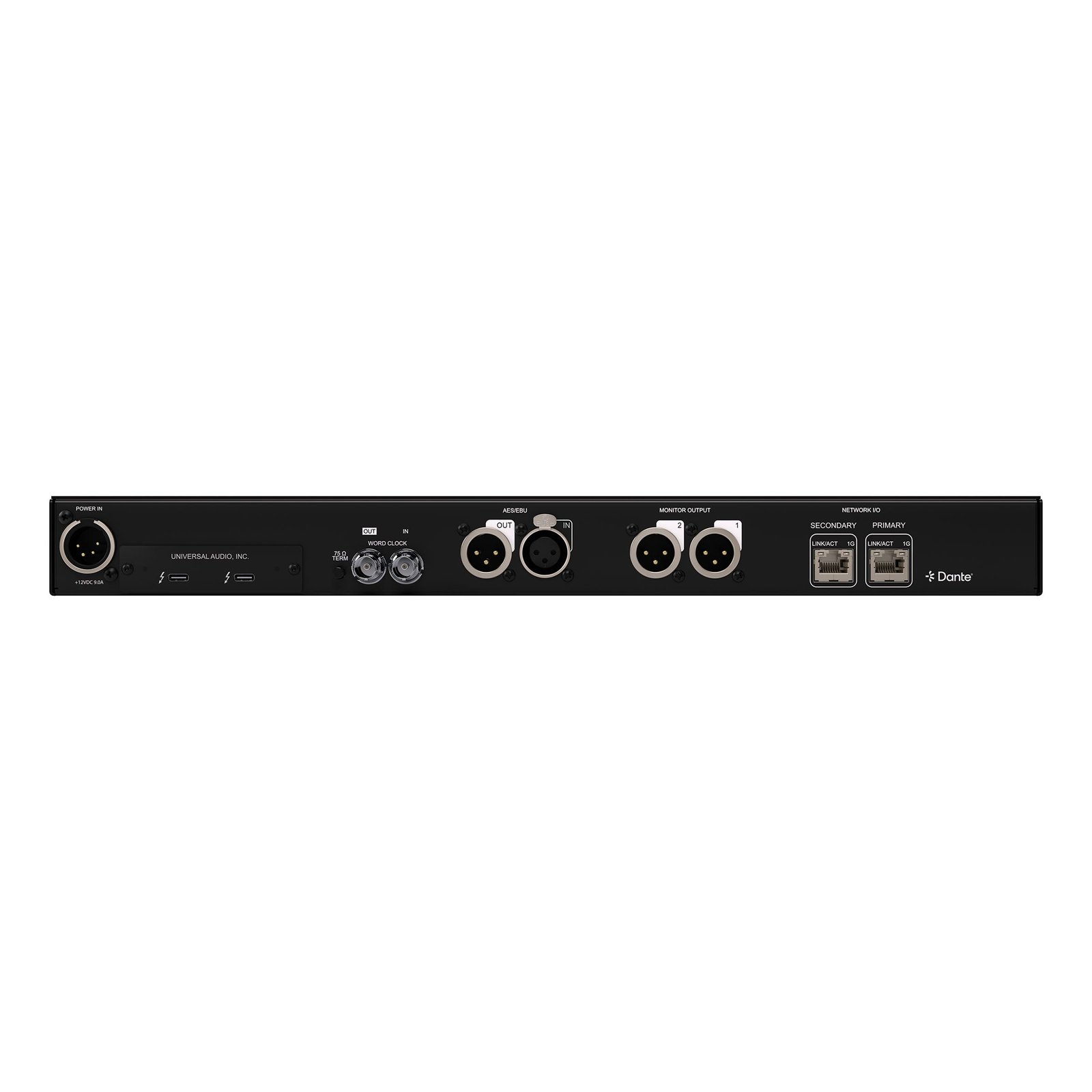

Two monitor outs (XLR), stereo AES I/O (XLR), word clock I/O (BNC) for connection to professional digital outboard hardware
Elite-class Apollo X Gen 2 D/A converter with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
Flagship D/A for critical monitoring and playback with 133 dB dynamic range and astonishingly low THD of -129 dB
Calibrate your main monitor outputs (stereo or immersive) with Apollo Monitor Correction powered by Sonarworks®*
Create 16-channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 Reality Audio, and others
Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
ALT monitoring support in all monitor modes (2 x ALT mon for stereo, 1 x ALT mon for immersive)
Includes up to 100+ UAD plug-ins with Essentials+ or Ultimate+ Editions
Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more**
Expand systems over Dante with compatible Thunderbolt Apollo interfaces**
Free industry-leading technical support from knowledgeable audio engineers

Take Elite-Class Apollo X Sound on Stage

Universal Audio built Apollo x16D for both live sound engineers and networked recording studios. With its 16 channels of Dante I/O, elite-class audio conversion, and HEXA core DSP processing — the world’s most powerful system for running UAD plug-ins in realtime — Apollo x16D seamlessly connects to your digital mixing console, putting over 200 UAD plug-ins right at your fingertips.

Hundreds of Effects, One Rack Space

Apollo x16D comes in two editions, both delivering a generous suite of UAD plug-ins right out of the box. Build your mix with classic Teletronix LA-2A and 1176 compressors, Pultec EQs, and Neve channel strips to modern favorites from Auto-Tune, Avalon, and more.

Expand Your Studio Over Dante

Link up to four x16Ds to build a 64-channel Dante system with network redundancy. Or expand your current Thunderbolt Apollo studio over Dante — the most low-latency and scalable audio network available. This means that if you’ve been considering making the switch to a networked recording studio, or you simply want to grow to a multi-room setup, you don’t have to start from scratch.**

Mix Down to Surround

After the show, bring Apollo x16D back to the studio, where it becomes your all‑in‑one monitoring hub for mixing formats up to 9.1.6 with multi-channel immersive Apollo Monitor Correction powered by Sonarworks.® This allows you to easily create 16‑channel immersive audio mixes of live sets or studio recordings for Dolby Atmos, Auro‑3D, Sony 360 Reality Audio, and others.

A Hybrid System, Made for Your Mission

Combine Apollo x16D’s HEXA Core DSP with native processing from your host computer to produce large sessions with complex plug-in chains — a powerhouse hybrid workflow that outpaces any native-only recording setup.

Included Plug-Ins in Essentials+ Edition

Channel Strips & Preamps (6)
Century Tube Channel Strip
CS-1 Channel Strip
Helios Type 69 Preamp & EQ
Precision Channel Strip
UA 610-A Preamp & EQ
UA 610-B Preamp & EQ

Compressors / Limiters (7)
Fairchild 670 Legacy
Teletronix LA-2A Classic Leveler
Teletronix LA-2A Gray Classic Leveler
Teletronix LA-2A Silver Classic Leveler
Teletronix LA-2A Legacy Leveling
Amplifier
UA 1176LN Legacy
UA 1176SE Legacy

Equalizers (6)
Helios Type 69 Legacy EQ
Pultec EQP-1A Legacy EQ
Pultec EQP-1A Passive EQ
Pultec HLF-3C Passive EQ
Pultec MEQ-5 Passive EQ
Pultec Pro Legacy EQ

Special Processing (4)
Auto-Tune Realtime Access
Oxide Tape Recorder
Precision Enhancer Hz
Verve Analog Machines Essentials

Instruments (1)
PolyMAX Polyphonic Synth

Delay & Modulation (3)
Galaxy Tape Echo
Precision Delay Mod
Precision Delay Mod L

Reverbs & Rooms (3)
Precision Reflection Engine
Pure Plate Reverb
RealVerb Pro Custom Room Modeler

Guitar & Bass (3)
Ampeg SVT-VR Classic Bass Amplifier
Marshall Plexi Classic Amplifier Raw Distortion
