No More Acrylic Panel

There is no need to isolate your drummer from the choir, acoustic instruments, your audience or congregation. Your drummer is now free to connect and engage with everyone!

EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity, balance and control.



Stage-Box Reliability

EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show.

Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad.

Each channel is equipped with HPF, 2-band EQ, individual compressors for Bus 1-6, and ground lift switches.

Flexibility for All Music

EFNOTE PRO supports 7 shells and 8 cymbals. All pads are individually wired, so players can adapt to any musical environment.

All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time.

In addition, with 12-ch of multitrack USB Audio and 16-ch USB MIDI running simultaneously, a drummer, producer or mixer have quick access to editing, in order to meet artist’s budget requirements.

Design

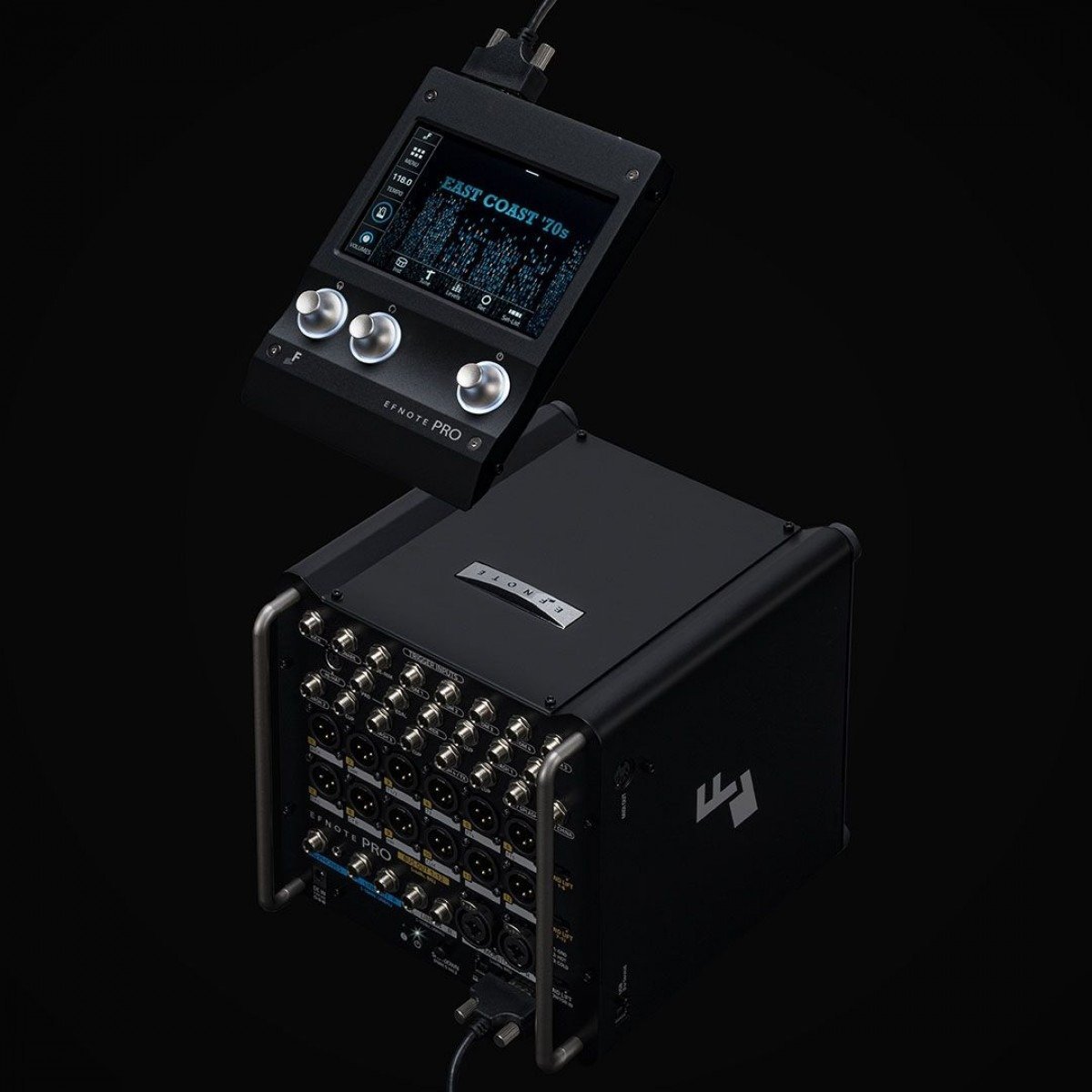

Innovative Two-Piece Design

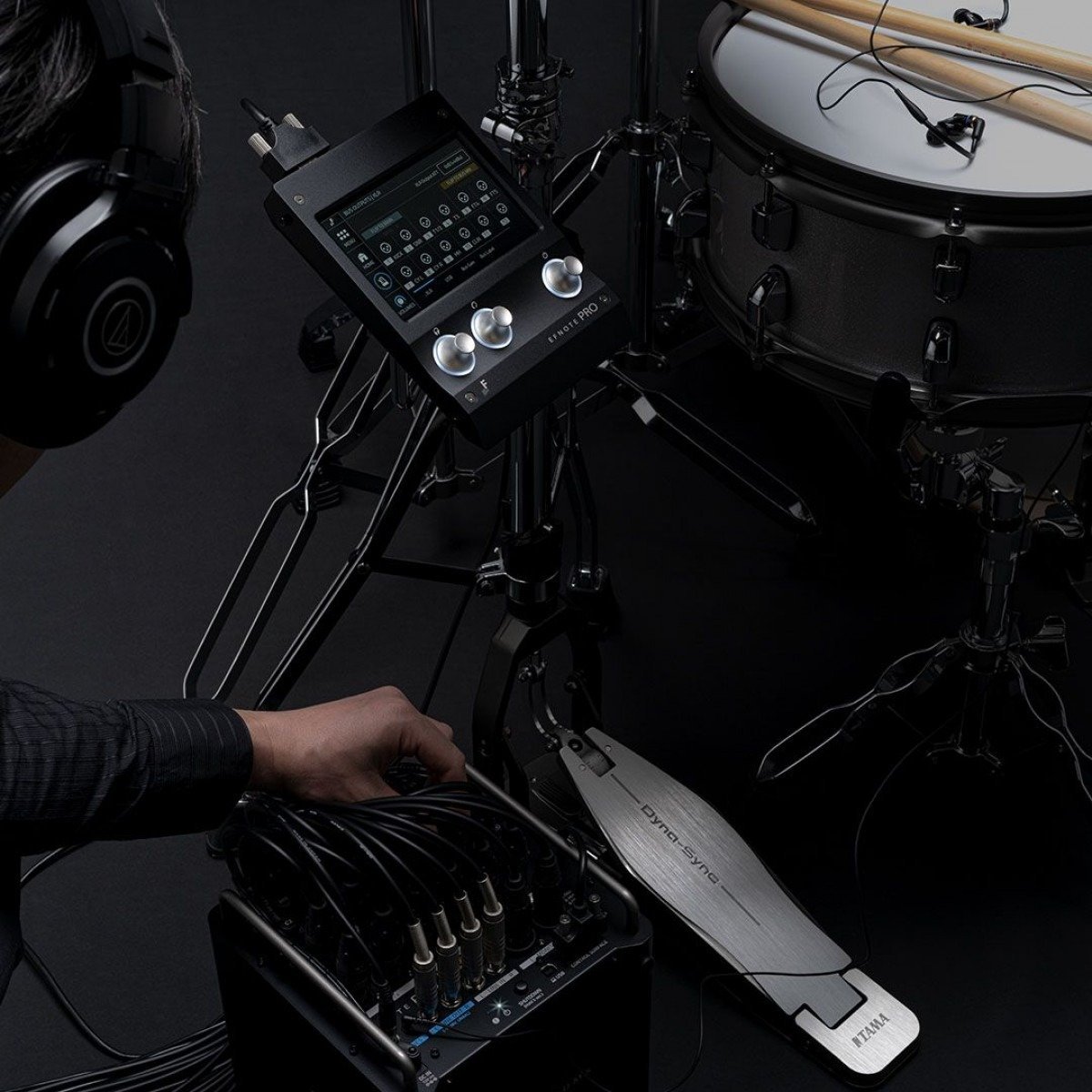

The two-piece sound module provides both operability and expandability required by professionals

Low-profile and compact control surface with touch-screen full-color LCD

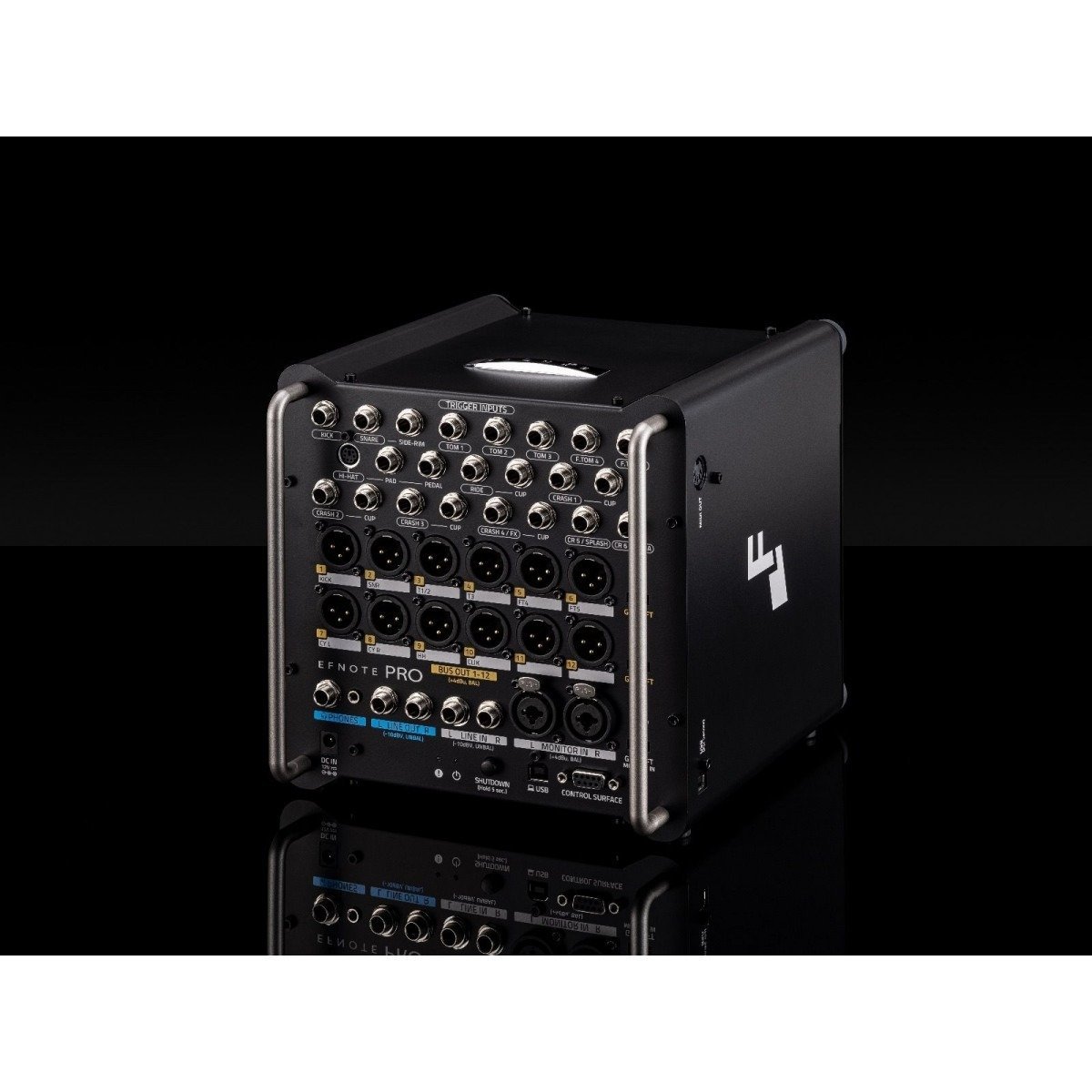

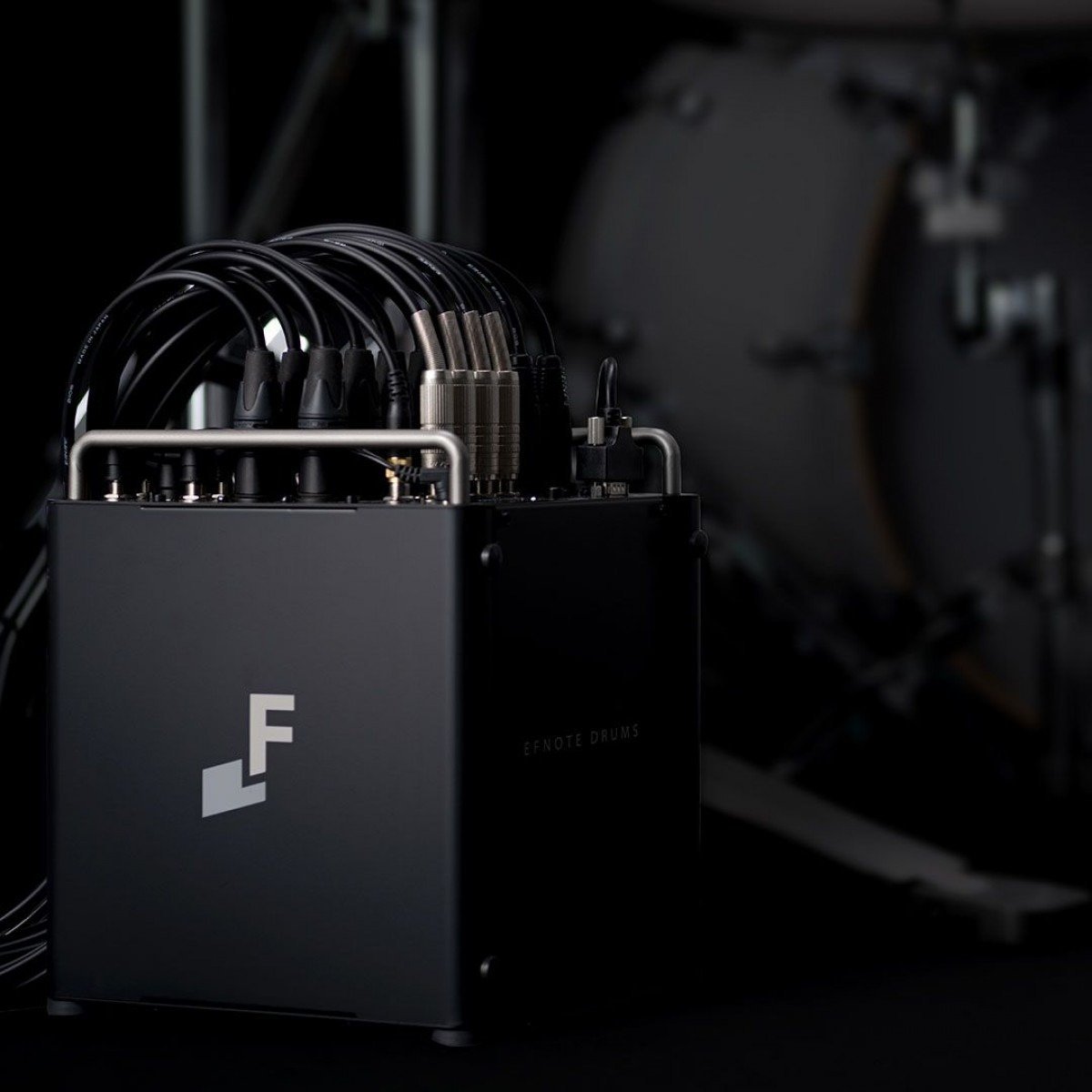

Floor-standing base unit with robust enclosure and reliable cable connections

Perfect Customizing

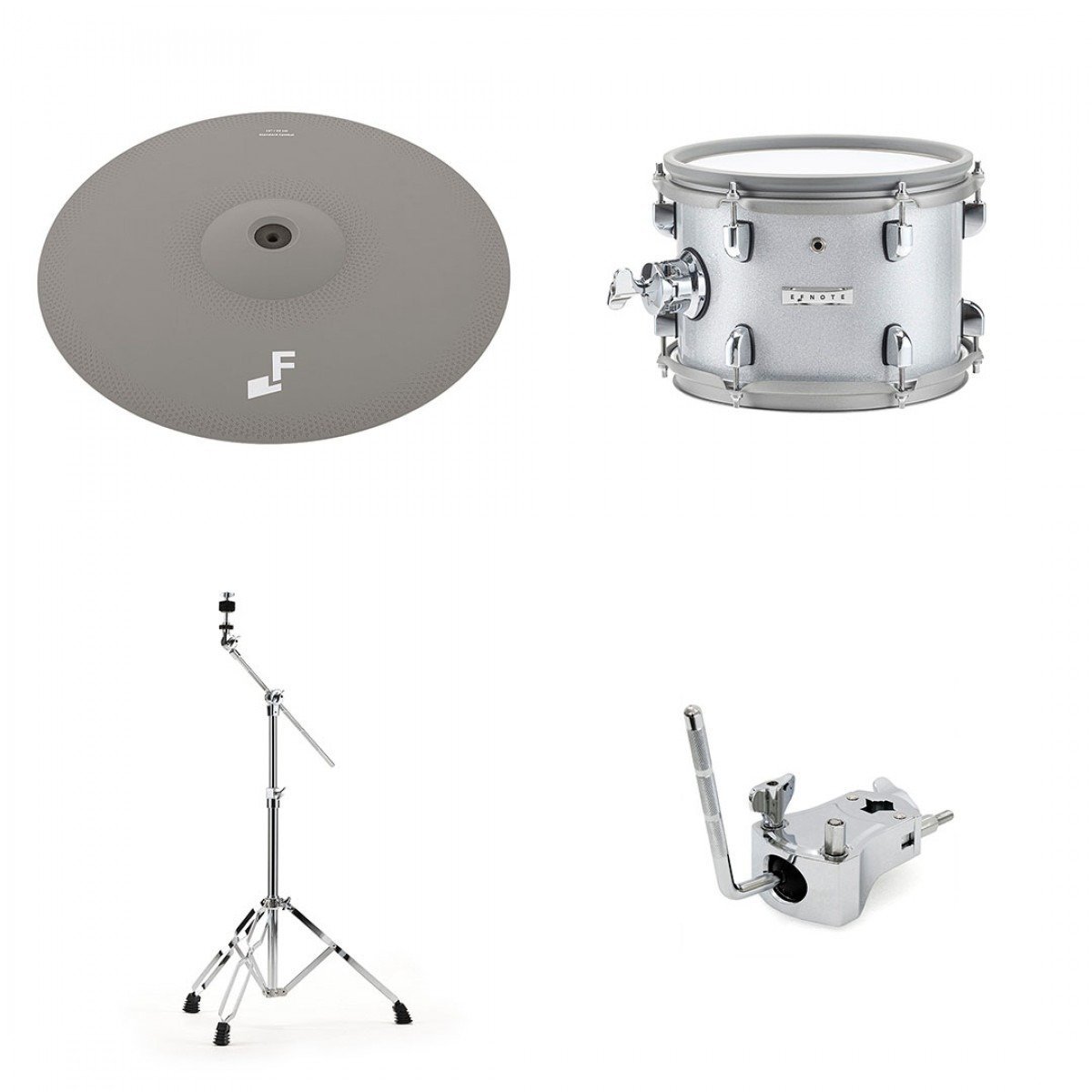

Mix and match the expansion packs and optional components to create your ideal set
Consistent pad design
Supports EFNOTE 3/3X/5/5X/7/7X pads

Beautiful Kit Images Inspire

Kit themes that highlight the musicality of each kit
Simple interface design for professionals
High-definition and high-brightness screen

Contains Legendary Drums Sets

• The delicate resonance of aged shells are newly captured, recorded by EFNOTE
• Raw and organic, NOT synthetic and electronic
• Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

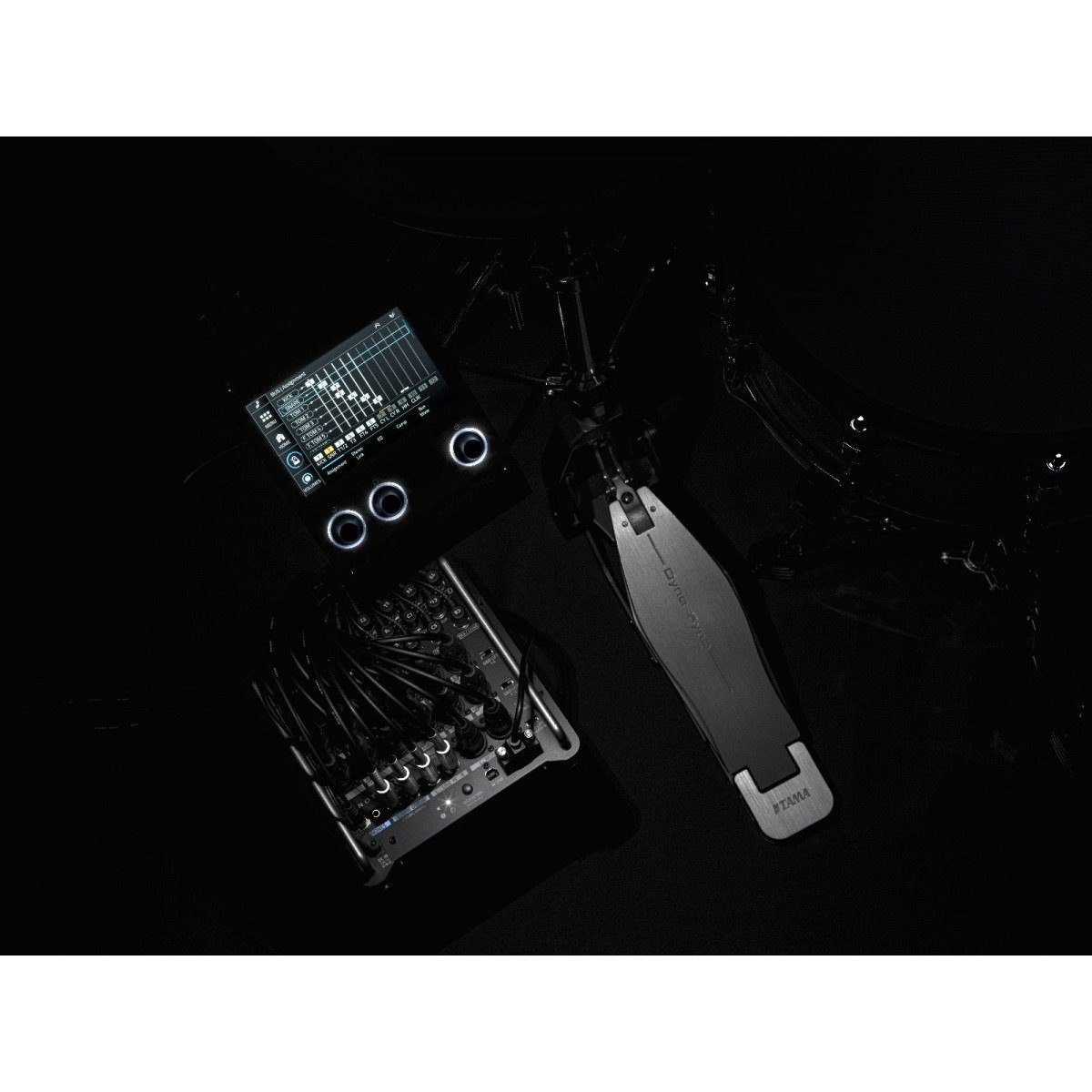

Discrete Foot Stage Light

• A foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box
• Great for dark stages
• Adjustable brightness

Diverse Cymbal Collection

• Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
• Contains modern trash/effect/stacked cymbal sounds

Overlay Tone (Layering)

• Elements such as tambourines and EDM kicks can be easily layered over each drum sound
• Attack Elements for reinforcing the attack
• Percussion sounds
• eKick, eSnare and eClap sounds

Playability

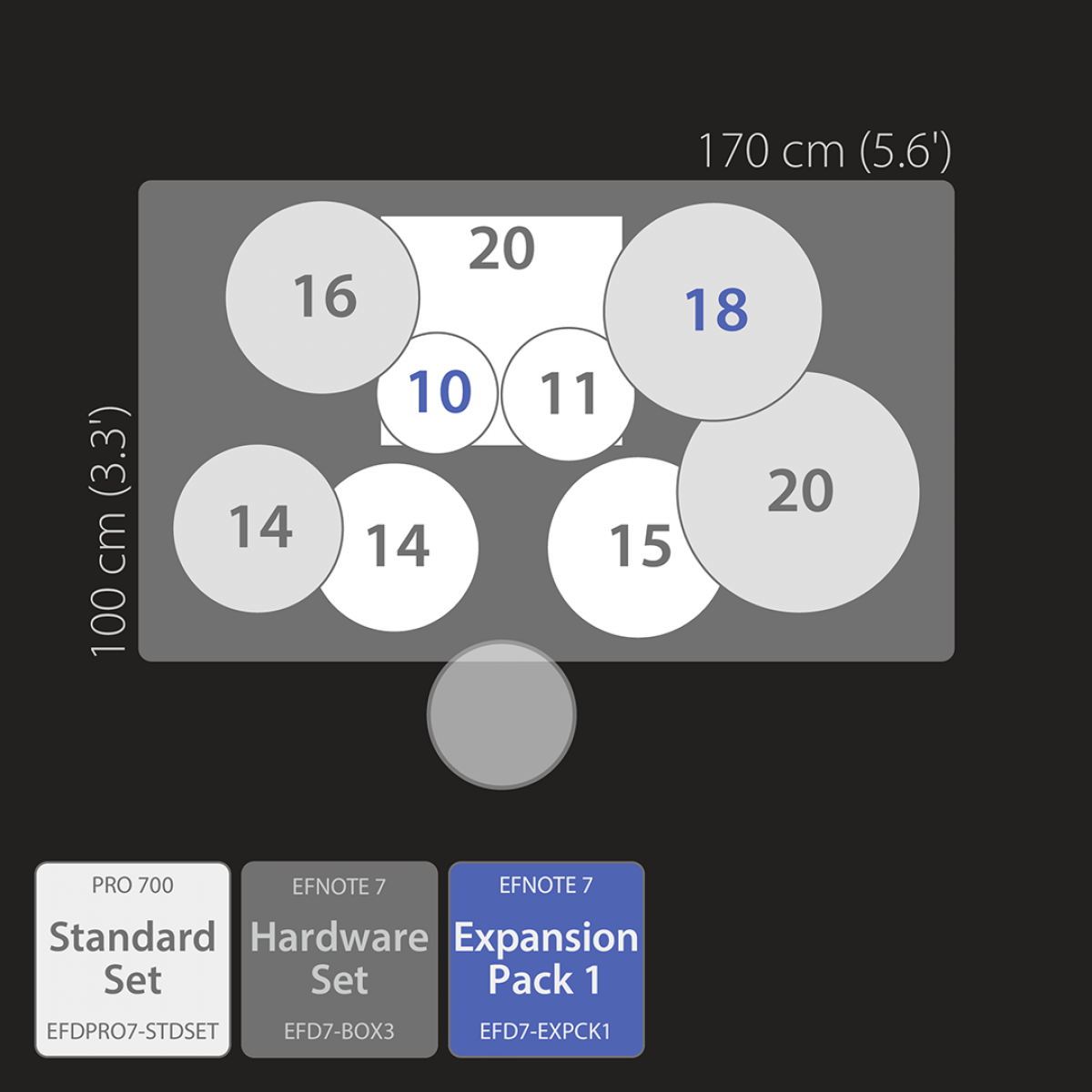

• 7 Shells and 8 Cymbals
• Build a custom kit for any stage
• 5x 2-zone input for toms
• 6x 3-zone (including 3-zone hi-hat), 2x 2-zone input for cymbals
• Traditional individual trigger connections (TRS), for professional reliability

High-Powered Headphone Amp

• 1x 1/4″ jack + 1x 1/8″ jack for headphones (can be used simultaneously)
• Dedicated 2x headphone amp circuit for enough loudness
• High quality DAC and audio circuit

ELISE™ Sensing Processor 2.0

• We’ve evolved, delivering improved sensitivity for capturing your most delicate touch
• The new algorithm for even more natural dynamics

Full Drum Pad Lineup

• Birch wood shells and 2-ply mesh drum heads
• Multi-sensor for hot-spotless and high-resolution sound
• 20” and 16” kick drums
• 14” and 12” snare drums
• 8”, 10”, 11” rack toms
• 12”, 13”, 15” floor toms

“World’s First” Cymbal Pads

• Tru-Motion™ 14” hi-hat cymbal
• 8” to 20” full size cymbal lineup, the first of their kind
• New 18” China cymbal and 17” effect cymbal with stackable/suspendable STAK™ mount

12-ch Buses to the Console

• 12-ch buses, and 12x XLR balanced bus output
• Dedicated bus compression for Bus 1 to 6
• HPF and 2-band EQs for Bus 1 to 12
• Stereo-Link for two adjacent buses
• Ground lift switches

XLR Inputs from the Console

• 2-ch Monitor In (XLR balanced) for monitoring return from the console
• 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad
• Ground lift switch for Monitor In

EFNOTE Desktop Tools

• Allows for simple and intuitive management of UT and IX.
• Compatible with Mac and Windows.
• Visit the V2.0 page to get started.

Remote Control

• EFNOTE Tools App available for remote control/file-management
• Save and upload kit/trigger/bus settings
• Control the bus assign/effect/mix/output settings
• Select the drum kit and preview each pad sound

USB 12-ch Multi-Track Recording

• Simultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available
• Confirmed with major DAWs
• 5-pin DIN MIDI Out

Bluetooth®

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI

Centralized Volume Control

• Simply press the left knob to access the central volume management window
• One-touch switching between Main L/R and Bus Mix L/R monitoring
• One-touch mute for Monitor In

Graphical Bus Assigning

• Graphical bus assignment helps you setup your intended routing correctly
• All Pads can be assigned as both stereo and mono outputs
• Click, Line In, Monitor In can be set to a bus individually

Bus Effect Overview

• Allows viewing of each bus’s settings of effects and stereo link in one window
• HPF, EQ, Comp, and Stereo-link can be selected ON/OFF at once

For drummers seeking the ultimate combination of precision, versatility, and professional-grade sound, the EFNOTE 701 Traditional Set with CS7 stand represents a pinnacle in electronic drum technology. Whether you’re a seasoned performer, a studio professional, or a dedicated hobbyist, this advanced electronic drum kit offers an unparalleled playing experience that captures the nuance and dynamic range of acoustic drums while providing the flexibility of digital control. The EFNOTE 701 transforms your drumming with its innovative design and cutting-edge features, allowing you to express your artistry with confidence and ease.

At the heart of the EFNOTE 701 is its sophisticated user interface, featuring a full-color capacitive touchscreen display that enables intuitive control over every parameter. This means you can effortlessly customize your drum kits, adjust sound levels, and fine-tune your setup on the fly without fumbling through complex menus. The inclusion of two multi-function knobs with ring LEDs and a value knob streamlines your workflow, giving you tactile control over key settings and immediate visual feedback. For the drummer, this translates into a seamless and efficient setup process, letting you focus on your performance rather than technical adjustments.

The trigger interface of the EFNOTE 701 is designed to deliver exceptional responsiveness and expressive depth. With 3-zone triggers on seven pads—including the snare and multiple crash cymbals—and 2-zone triggers on seven additional pads, you gain nuanced control over each strike, allowing you to produce varied articulations such as rimshots, bell hits, and bow strikes. The kick drum features a dedicated single-zone trigger ensuring accurate pedal response. Powered by the advanced ELISE™ 2.0 Trigger Sensing Chip, the system detects playing dynamics with high precision, so every ghost note, accent, or subtle nuance is faithfully captured. This level of sensitivity ensures your playing feels natural and expressive, bridging the gap between electronic and acoustic drums.

Connectivity options on the EFNOTE 701 are comprehensive and built for professional environments. The 12 balanced XLR bus outputs provide high-quality audio signals with selectable attenuation and ground lift switches, enabling seamless integration with studio mixers, audio interfaces, or live sound systems. Additional line and headphone outputs support flexible monitoring setups, while the USB 2.0 Hi-Speed interface delivers 12 channels of 24-bit/48kHz audio output and 2 channels of input, compatible with both Mac and Windows via ASIO drivers. Bluetooth functionality supports audio input and low-energy MIDI communication, allowing wireless connection to compatible devices for playback or control. This extensive connectivity suite ensures that you can easily incorporate the EFNOTE 701 into any recording, rehearsal, or live performance rig.

The module comes preloaded with 23 editable preset drum kits and offers room for 100 user-created kits, giving drummers the freedom to tailor sounds to their unique style. These kits feature Tru-Aco™ Sound Technology, which provides authentic acoustic drum and cymbal sounds recorded in stereo for rich realism. Each pad’s sound can be edited with parameters including level, pan, tuning, muffling, and overlay tone, alongside a 2-band EQ per pad for precise tonal shaping. The ability to change kit name colors and background images adds a personal touch to your setup. Additionally, the built-in 15-track recorder with high temporal resolution and multi-channel buses enables you to capture performances or create backing tracks directly within the module.

Physically, the EFNOTE 701 is designed for durability and convenience. The control surface is compact yet robust, measuring 128 by 172 by 30 mm and weighing only 700 grams, making it easy to position in any studio or stage setup. The base unit is solidly constructed with a full metal cabinet and guard handles, providing longevity and protection during transport. The package includes essential accessories such as trigger cables, a hi-hat cable, a module mount set, and a smartphone tray, ensuring that you have everything needed to get started immediately. Its power supply is a standard DC 12 V adapter with efficient current draw, facilitating compatibility with common power sources.

Ideal for professional drummers who require expressive playability, studio musicians aiming for pristine sound quality, and educators seeking a versatile teaching tool, the EFNOTE 701 Traditional Set delivers a comprehensive drumming solution. Its combination of high-fidelity sound, advanced triggering, extensive connectivity, and customizable interface sets a new standard in electronic drum kits. Whether you are practicing quietly at home, recording intricate parts in the studio, or performing live with confidence, the EFNOTE 701 empowers you to elevate your drumming to the next level.

Investing in the EFNOTE 701 Traditional Set means choosing a drum kit that prioritizes your creative needs without compromise. Priced competitively at ₹678,480, it offers exceptional value for a professional-grade instrument with cutting-edge technology and robust build quality. Backed by EFNOTE’s commitment to innovation and quality, this drum set is a reliable companion for your musical journey. Experience the expressive power, precise control, and versatile connectivity of the EFNOTE 701 and redefine what’s possible in electronic drumming.
