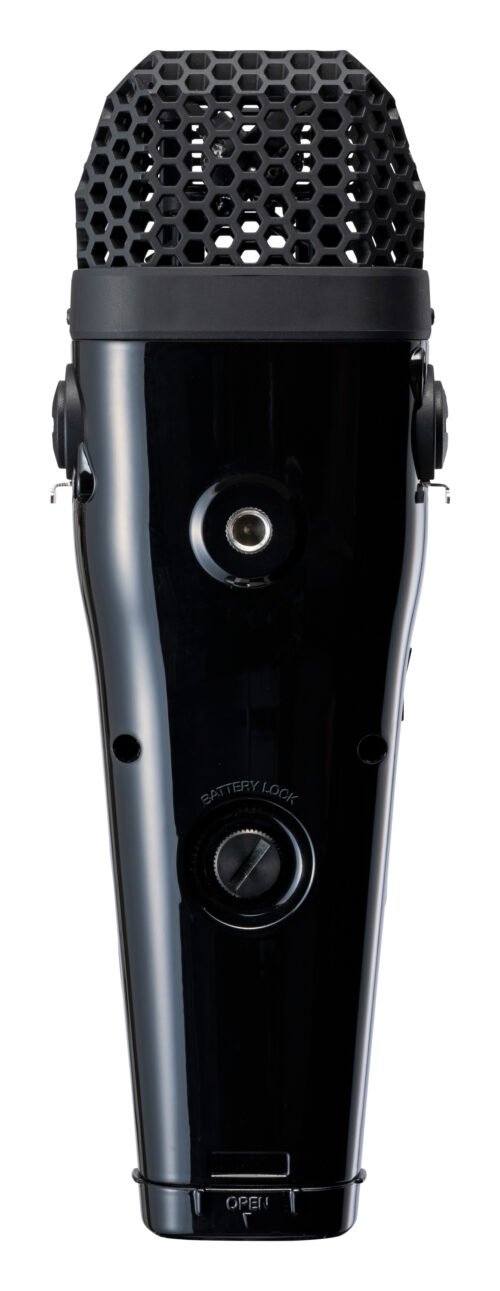

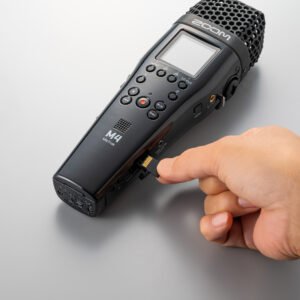

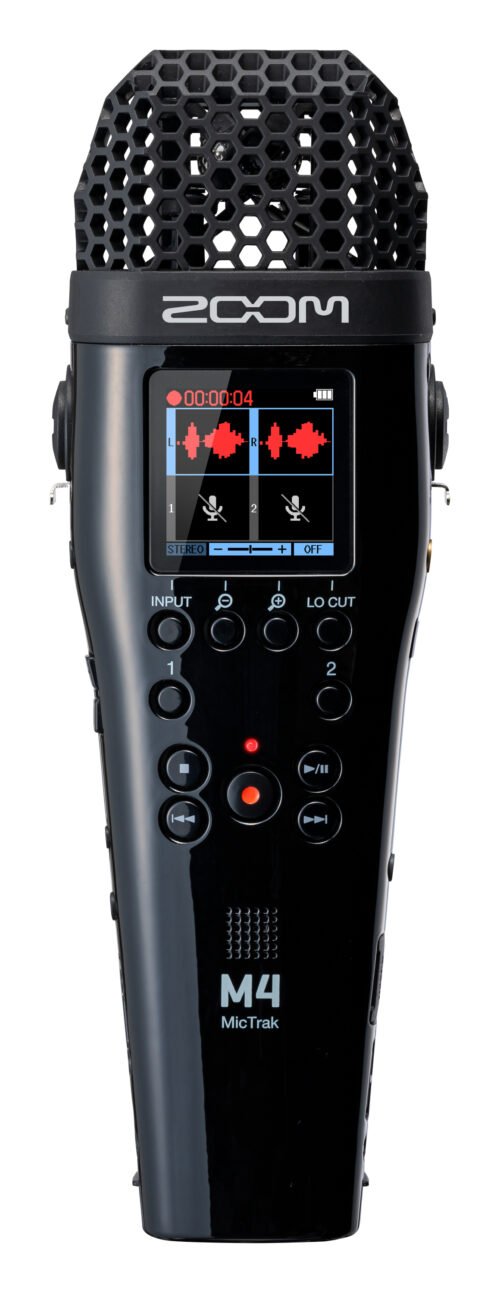

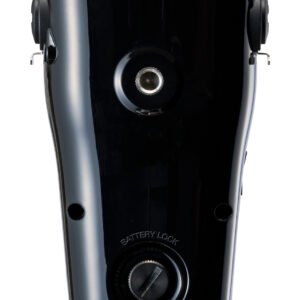

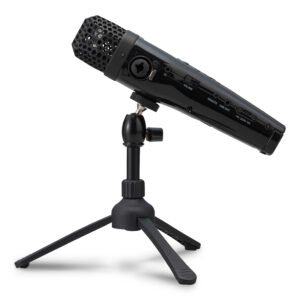

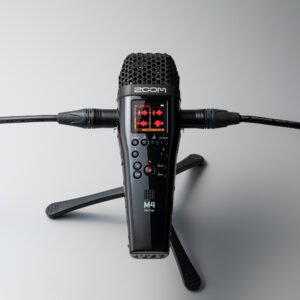

Perfect tracks in one take – for film sets, music videos and field recording. The Zoom M4 MicTrak is a handheld 4-track recorder with 32-bit float recording and a built-in timecode generator. Zoom says it is the first portable recorder with both.
Why customers choose it
Who it is for
Filmmakers and wedding videographers, YouTubers making music videos, location sound recordists, musicians recording rehearsals and gigs, and podcasters on the move.
What’s in the box
- M4 MicTrak Recorder
- Windscreen
- Quick Tour
Specifications
| Tracks | 4 (2 built-in X/Y mic + 2 XLR/TRS inputs) |
|---|---|
| Built-in mics | Unidirectional X/Y, -42 dB sensitivity, 135 dB SPL max |

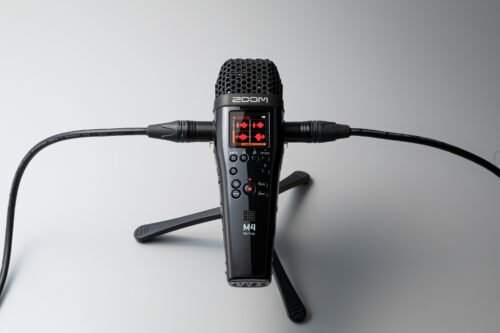

| XLR/TRS inputs | 2 combo jacks, +24/+48 V phantom, EIN -127 dBu or less |
| Ext mic input | 3.5 mm stereo mini jack |
| Recording format | WAV 32-bit float, 44.1 to 192 kHz, BWF and iXML |

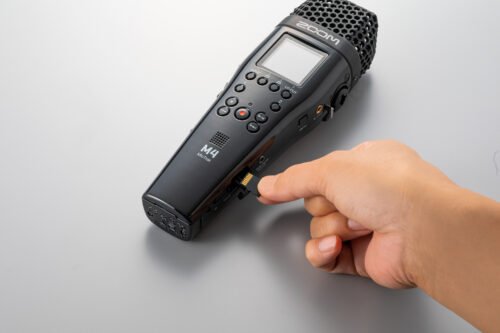

| Media | microSDHC / microSDXC up to 1 TB |
| Timecode | 3.5 mm in/out, ±0.2 ppm, 23.976 to 30 fps |
| Outputs | Line out (3.5 mm), headphones 20 mW + 20 mW, 500 mW speaker |
| Display | 1.54-inch full colour LCD (240 x 240) |

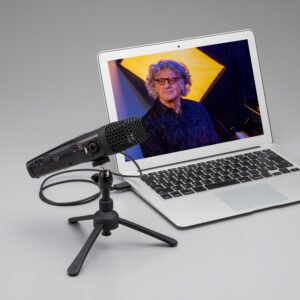

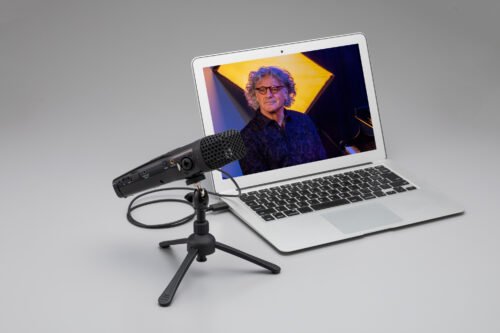

| USB | USB-C, 4-in / 2-out audio interface, 48 kHz 24-bit / 32-bit float |
| Power | 4 x AA, AD-17 adapter (5 V 1 A) or USB bus power |
| Battery life | About 18 hours (alkaline, 48 kHz/32-bit float, 2 ch) |
| Weight | 0.431 kg |
| Type | 4-track 32-bit float handheld recorder |
| Compatible Devices | Laptop |
| Hardware Interface | 5-Pin XLR, USB |
| Microphone Form Factor | Handheld |
| Headphones Jack | 3.5 Millimeters |
| Screen Size Unit of Measure | 1.54 Inches |
| Item Dimensions D x W x H | 4.7D x 20.6W x 4.7H Centimeters |
| Item Weight Unit of Measure | 431 g |
| UPC | 884354027711 |
| Item Highlight | Clip-Free Audio with 32-Bit Float, X/Y Mics, 4 Tracks, 2 XLR/TRS Inputs, USB Audio Interface |
Good to know
- Batteries are not included (Zoom note).
- Remote control works with the optional Zoom RC4 (up to 5 metres) and RC2/RCH-5/RCH-6.
- It can record to the SD card while working as a USB audio interface. On Android, 32-bit float cannot be used in USB mic mode.
- Optional accessories include the HS-1 hot shoe mount, TPS-5 tripod, WSU-1 windscreen and AD-17 adapter.
FAQ
Do I need to set recording levels?
No. With 32-bit float, Zoom says gain adjustment is not needed.
Can I connect it to my camera?
Yes, use the 3.5 mm line output to send a backup or sync track to your camera.
Talk to Suhavi
Paolo –
Ottimo
Ottimo registratore flessibile
Martello –
Handheld-Recorder mit dem aktuell besten Preis-Leistungs-Verhältnis
Die »eierlegende Wollmichsau« für schnelle unkomplizierte hochwertige Tonmitschnitte. Das Konzept (kann jeder bei Zoom nachlesen) ist wirklich überzeugend und Zoom hat in seinen M4 MicTrak die offenbar beste Technik eingebaut, welche auf dem Noname-Massenmarkt zu bekommen ist. Die Aufnahmen sind viel klarer und rauschärmer als bei den meisten anderen Handheld-Recordern – insbesondere H1e und H2e etc. – aus dem gleichen Hause. Natürlich schlagen Profimarken in Einzelkomponenten den M4 in nahezu allen Bereichen aber das zum mindestens 10fachen des aktuell aufgerufenen Preises von etwa 150,–.
WJD McCLEAN –
Great recorder.
I bought this to replace my aging and a little noisy Tascam DR 40x. This Zoom M4 is quieter and a joy to use. Sound quality is excellent, great preamps. Takes 4 AA batteries which last a long time. I use it with a Movo mount so I can walk around and get noise free recordings. Use it with a deadcat and it’s very good. No interference issues at all. For the price it’s a no brainer!
Roberto –
Por el precio es la mejor que hay.
De los micros más infravalorados. Calidad 32 bits, cápsulas de calidad, ergonomia, dos entradas, buena duración de pila….
Lo puedes usar como micro externo y eso está genial.
Yo personalmente lo uso para field recording. Para conectarlo al micro uso el Zoom M3.
thedanieljsmith –
Sharing thoughts stuck in traffic is good
Affordable form of blogcast creation while on the road. Easy to set up and easy to edit later.
