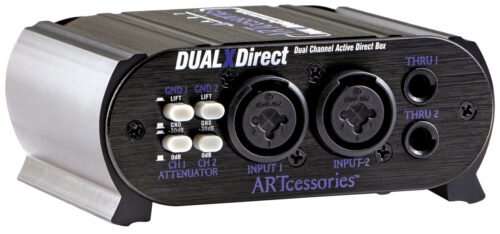

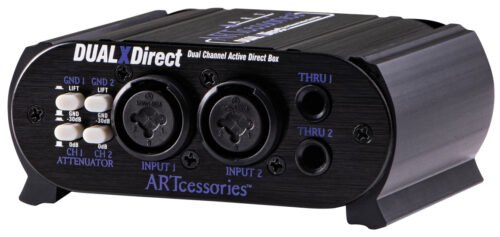

The DualXDirect is a 2-channel active direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.

Each input signal is sent to a transformer-isolated XLR output and a parallel Thru jack so it can simultaneously be connected to an amplifier on stage. Unique among ART DI boxes, XDirect models feature both 1/4″ TRS and XLR inputs for expanded connectivity.

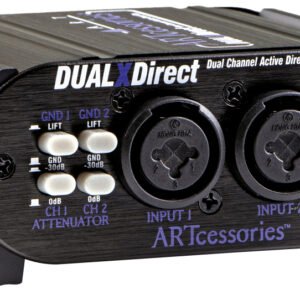

Front panel switches engage 30 dB of attenuation to accommodate high-level signals, and a ground lift to reduce hum.

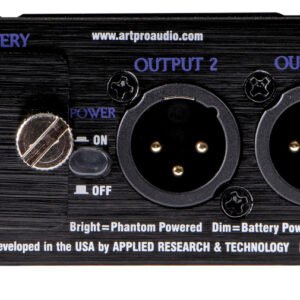

The active circuitry can operate on phantom power or for over 100 hours on a new 9-volt battery. Active DIs are often a great match for sources like guitars and basses with passive pickups, or acoustic guitars with piezo pickups and no preamp.

Simple and durable, the DualXDirect is a compact DI in a rugged aluminum enclosure with two independent channels and a streamlined feature set.

Features

• 2 Independent Channels

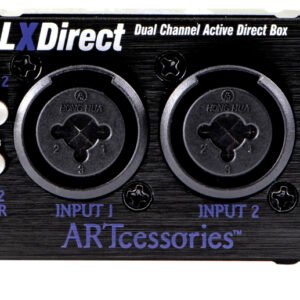

• 1/4″ TRS / XLR Combo Inputs

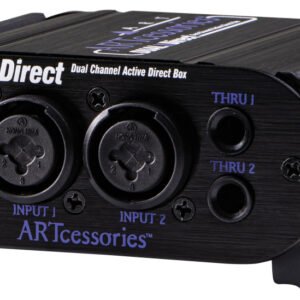

• 1/4″ Thru Connectors

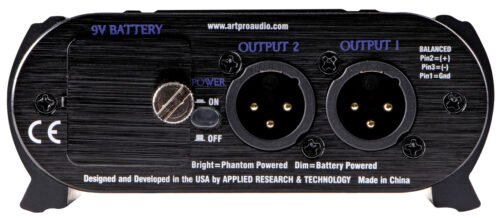

• Balanced XLR Outputs
• Switchable 30dB Attenuation and Ground Lift per Channel
• Powered by 9-Volt Battery (100+ Hours) or Phantom Power
