The sound of Scarlett - and more of it
Scarlett OctoPre gives you eight additional inputs. It’s the ideal way to expand your Scarlett – or any other interface with an ADAT input.
Eight Scarlett mic preamps
Scarlett OctoPre features eight Scarlett mic inputs – balanced line inputs too – all running through Focusrite precision 24-bit conversion at up to 192kHz resolution with 109dB dynamic range.
Dual front-panel instrument inputs
Two high-headroom instrument inputs will handle high output guitar pickups and are right there on the front panel for easy access.
Plenty of headroom. Pads for the most extreme inputs
With high-headroom inputs and a pad on every channel, Scarlett OctoPre is ideal for tracking drums as well guitars, keyboards, vocals – and more.
Outputs for live or standalone use

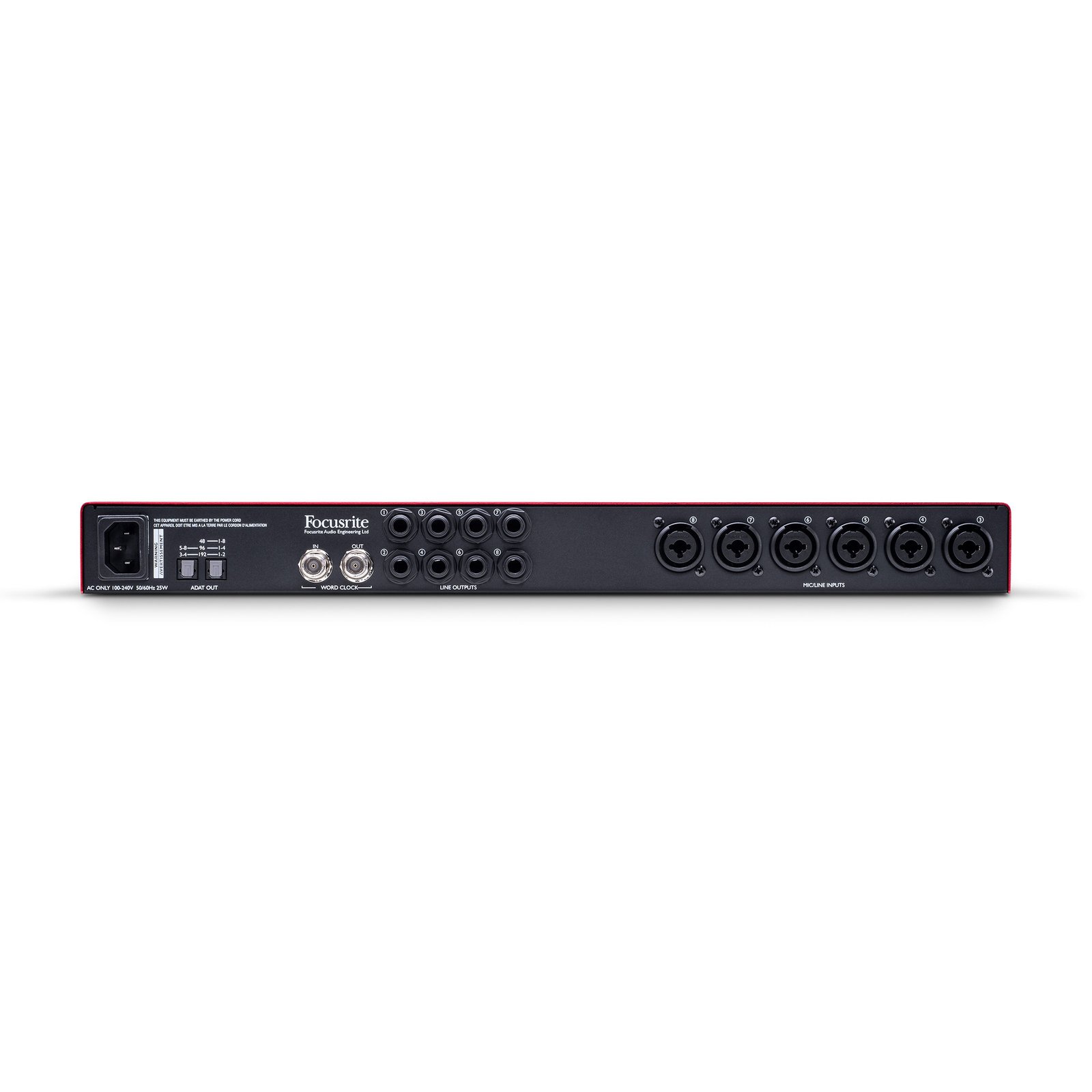

Eight balanced line outputs, sourced directly from the inputs, allow Scarlett OctoPre to be used in a live situation whilst capturing the recording via the digital ADAT output.
Our commitment to our customers
Wherever you happen to be in the world, you can rely on our three-year warranty if any Focusrite hardware needs repairing or replacing due to a manufacturing fault.
All the software you need to make a hit record.
Once you’ve got started with Ableton Live Lite, Pro Tools Intro+, or six months of FL Studio Producer Edition recording software (all included), the Hitmaker Expansion bundle has everything you need to bring big studio sound to your songs, with an unbeatable range of record-making studio tools from the biggest names in the business.
Specifications in detail
Supported sample rates
- 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Microphone inputs
- Frequency response                  20Hz – 20kHz +0.5/-1.5dB
- Dynamic range                      109 dB (A-Weighted)
- THD+NÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â <0.001%
- Noise EINÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â -127 dBu
- Maximum input level (without pad)Â Â Â +8 dBu
- Maximum input level (with pad)Â Â Â Â Â Â +16 dBu
- Gain range                         50 dB
- Input impedance                   3 kΩ
Line inputs
- Frequency response               20Hz – 20kHz +0.5/-1.5dB
- Dynamic range                    109 dB (A-weighted)
- THD+NÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â <0.002%
- Maximum input level              +22 dBu
- Gain range                       50 dB
- Input impedance                 49 kΩ
Instrument inputs
- Frequency response                   20Hz – 20kHz +0.5/-1.5dB
- Dynamic range                       108 dB (A-weighted)
- THD+NÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â <0.01%
- Maximum input level                  +13 dBu
- Gain range                           50 dB
- Input impedance                      1 MΩ
Line outputs
- Maximum output level (0 dBFS)Â Â Â Â Â Â Â Â +16dBu @ 0dBFS, or >21dBu where
                                      ADAT output is not used - THD+N                                <0.001%
- Ouput impedance                     136 Ω (Balanced) – for units with serial
                                      number ≤ W860083007515
                                      576 Ω (Balanced) – for units with serial
                                      number > W860083007515
